Sine wave controller for an electric bike with adjustable power.
The first controller on the market with such a small size and such a big power.
The controller works with lithium-ion batteries of 48 and 72 volts. The maximum current is up to 65 amperes. The current can be adjusted independently.
The controller works with the NTC10K motor temperature sensor. This means that the controller has a motor overheating protection function and depending on the outdoor temperature and the size of your motor, you can adjust the controller current yourself. And observe the temperature of the motor while driving.
The controller has a pedaling assistant function that operates on current, not on RPM like many other controllers. This means that pedaling will be more comfortable.
There are 5 driving levels in the controller. at the 1st level, the speed is up to 32 km h(at 72v) and the controller current is cut in half (economy mode). At other levels, the current is 100% (as set in the settings) and the speed is limited depending on the selected level.
With a 72 volt battery, this kit will be able to accelerate you up to 80 km h, with a 48 volt battery up to 60 km h.
The motor has a rated power of 3000 watts, 45mm magnets, weight 9.3 kg. This motor has proven itself well at powers up to 5000 watts. The rim has a width of 70mm, double profile.
This rim is perfectly combined with a light and durable German Schwalbe crazy bob tire with a width of 2.35mm(75mm width on the rim).
This set is the best solution for use in Enduroebike frames.
Sine Wave E-bike
smart controller Garmata Black Edition V2.

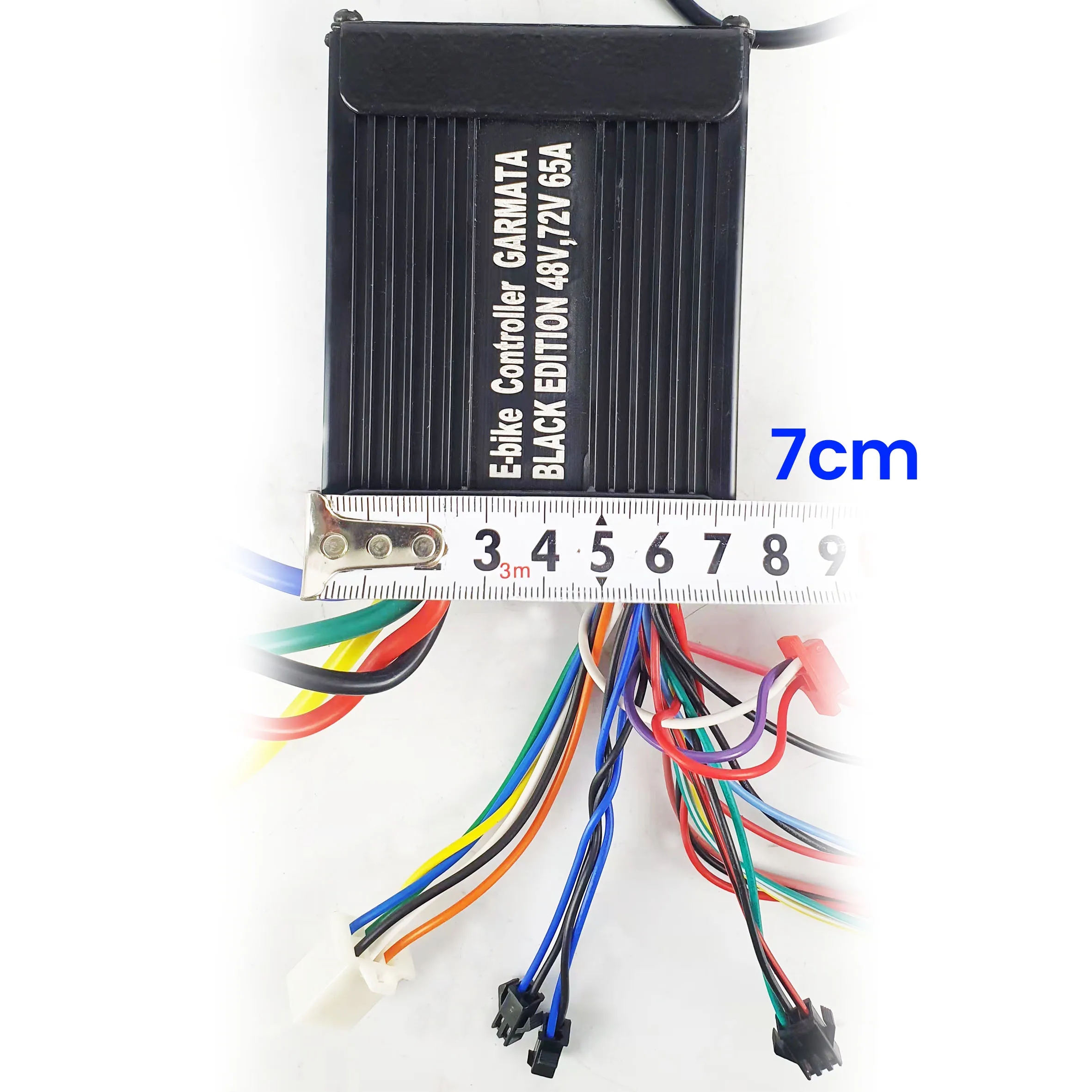

Size: 10cm x 7.5cm x 4.5cm(VERY SMALL)
Power: 48v, 52v, 60v, 72v - 65A
Functions:
Anti theft
PAS：5 levels. Soft work even with a powerful motor thanks to the current control system and not the RPM.
EABS(1-15a. Not adjustable. Regen current depends of speed)
Cruise: To activate, you need to hold down the down key with the gas handle pressed in motion.
6km/h mode：If your bike is very heavy and you need to roll it uphill, then this feature will be useful to you.
The motor turns on the revolutions equal to the pedestrian speed and the bike rides itself next to you. To activate, you need to hold down the down key while walking with a bike.
Adjustabale current(1A-65A)：You can set the required power based on the power of the battery and the motor.
Or if you need to set up an economy mode for a long-distance trip Adjustable voltage(48v(40-54.6v), 52v(42-58.8v), 60v(48-67,2v), 72v(60-84v))
Zero speed start： When this mode is turned on, you first need to move off on your own and then use the PAS or the throttle.
Level 1- 40% speed, 50% power(from what is set in the settings: 1A-65A), 8a PAS current.
Level 2- 55% speed, 100% power(from what is set in the settings: 1A-65A), 10a PAS current.
Level 3- 70% speed, 100% power(from what is set in the settings: 1A-65A), 12a PAS current.
Level 4- 85% speed, 100% power(from what is set in the settings: 1A-65A), 14a PAS current.
Level 5-100% speed, 100% power(from what is set in the settings: 1A-65A), 16a PAS current.
Drive Mode:0- only PAS, 1-only throttle, 2-throttle+PAS.
This is convenient to use in different scenarios.
For example, if you have strict traffic police restrictions and can only use a PAS. but after going into the forest, you can also use the throttle. The throttle has a quick-release mechanism and a waterproof connector. Its installation will take no more than a minute.
Auto light： The display has a light sensor that can automatically turn on the lighting system when it gets dark or when you enter a tunnel. PAY ATTENTION- LIGHT SYSTEM MUST BE UP TO 20W. Also this sensor can adjust the brightness of the display
Password： You can use a password when the display is turning ON.
Motor and controller overheat protection： at a temperature of 110 degrees, the controller current will begin to decrease as the temperature increases. when the temperature reaches 150 degrees, the current will be 15 amperes. after 150 degrees, the controller will stop supplying current to the motor.
Display: High quality waterproof color display
USB charge port(5v0.5a)
Display show-
speed(Km or Miles), time, trip time, trip km, ODO, current power, max speed, avg speed, battery indication, 5 levels, motor temperature(NTC10K sensor. If your motor do not have it you can to connect this sensor to white cable from controller(that cable in 6pin white connector) and to see ambient temperature. Or just to turn off in settings).
Errors: 07 Motor phase error 08 Throttle error 14 Motor hall sensor error
Motor:
Rear direct drive (gearless) brushless hub-motor GARMATA DD/R/155/ 48-72V3000W is the best solution for confident driving on an asphalt surface at a speed of 50-70 km / h. The price-performance ratio is attractive to potential users. the reliability of direct drive motors is time-tested.
Holes for the spokes - 36pcs 2,6-3,2mm (10-12G)
Axle- 16х10mm
Temp sensor (NTC 10k)
Recommended controller - 48-72V 50-60A
Rated power 3000W, Max continuous power 5000W
Unloaded RPM (48v) - 610rpm
Cable length: 90cm
Motor type - BLDC 205/30 direct drive hub-motor
Windings - 3T
Magnets - 46 pcs 45mm.
Phase cables AWG10 - 5mm2.
Weight 9,3kg
Rim:
alloy 19x1.6inch
55mm wide
Tire:
19x2.5inch
Spokes:
10g Steel
One set include:
Controller Garmata Black Edition 48v-72v 65A
PAS
Color display
Anti theft alarm
19inch 3000w wheel with installed 19inch road moto tire
Throttle thumb
