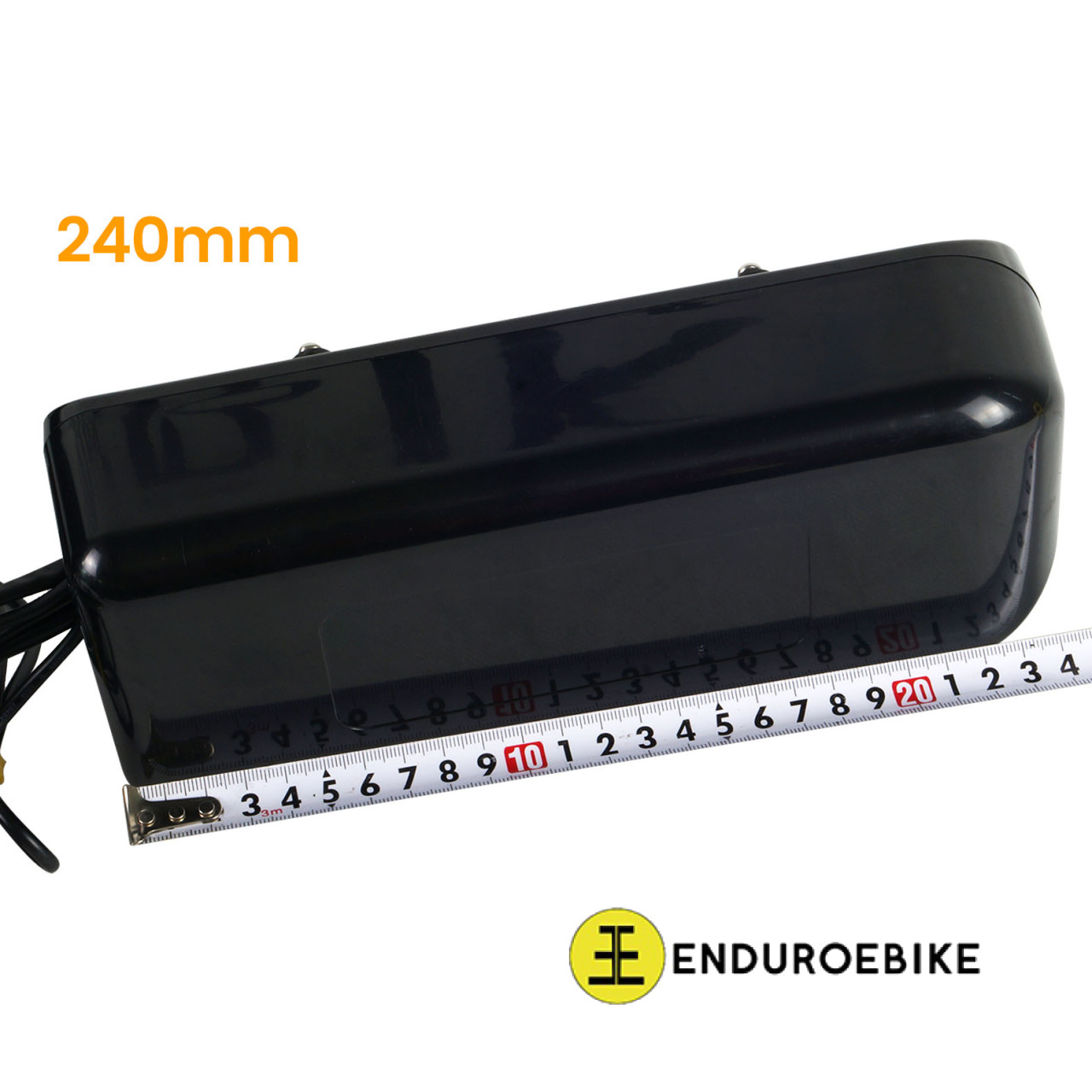

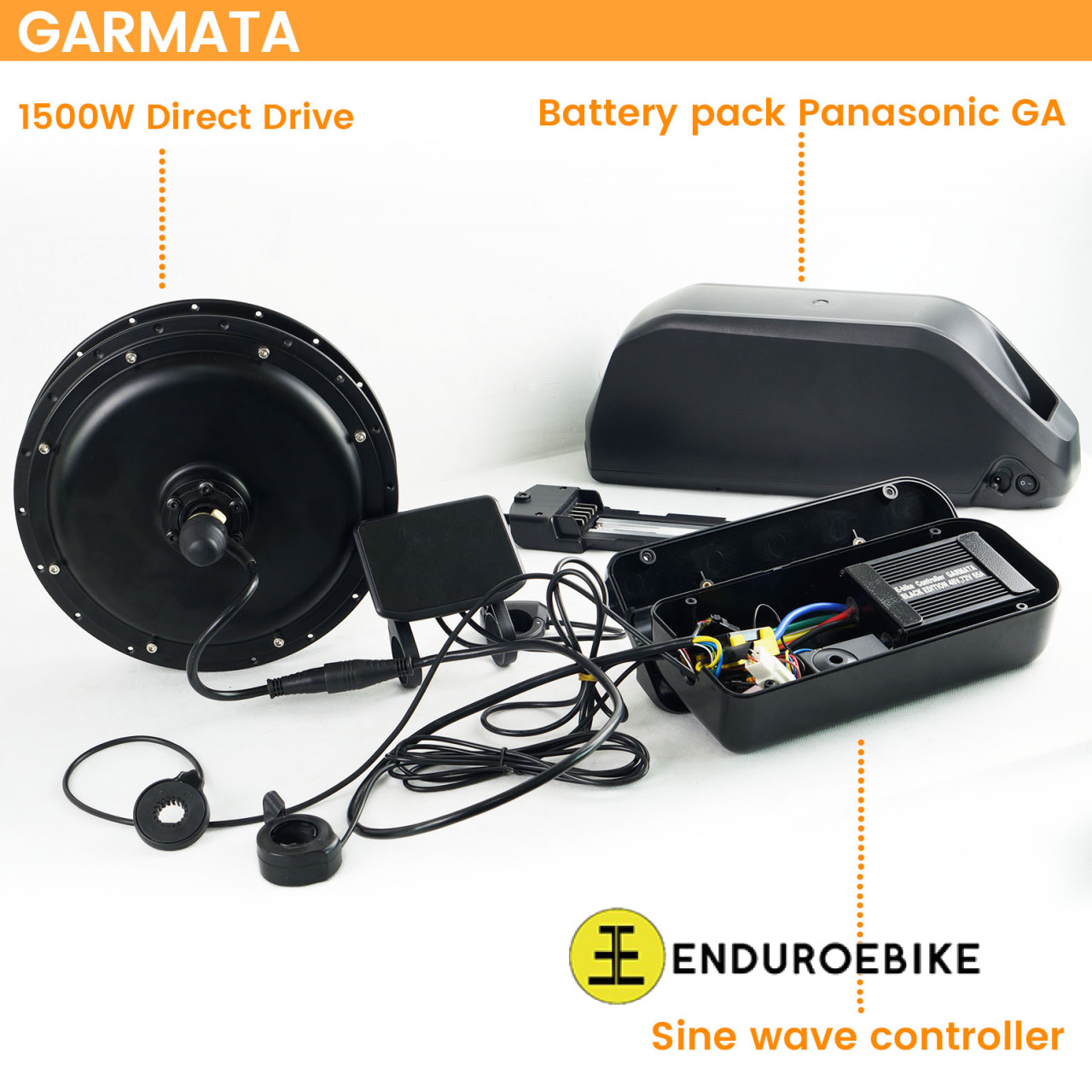

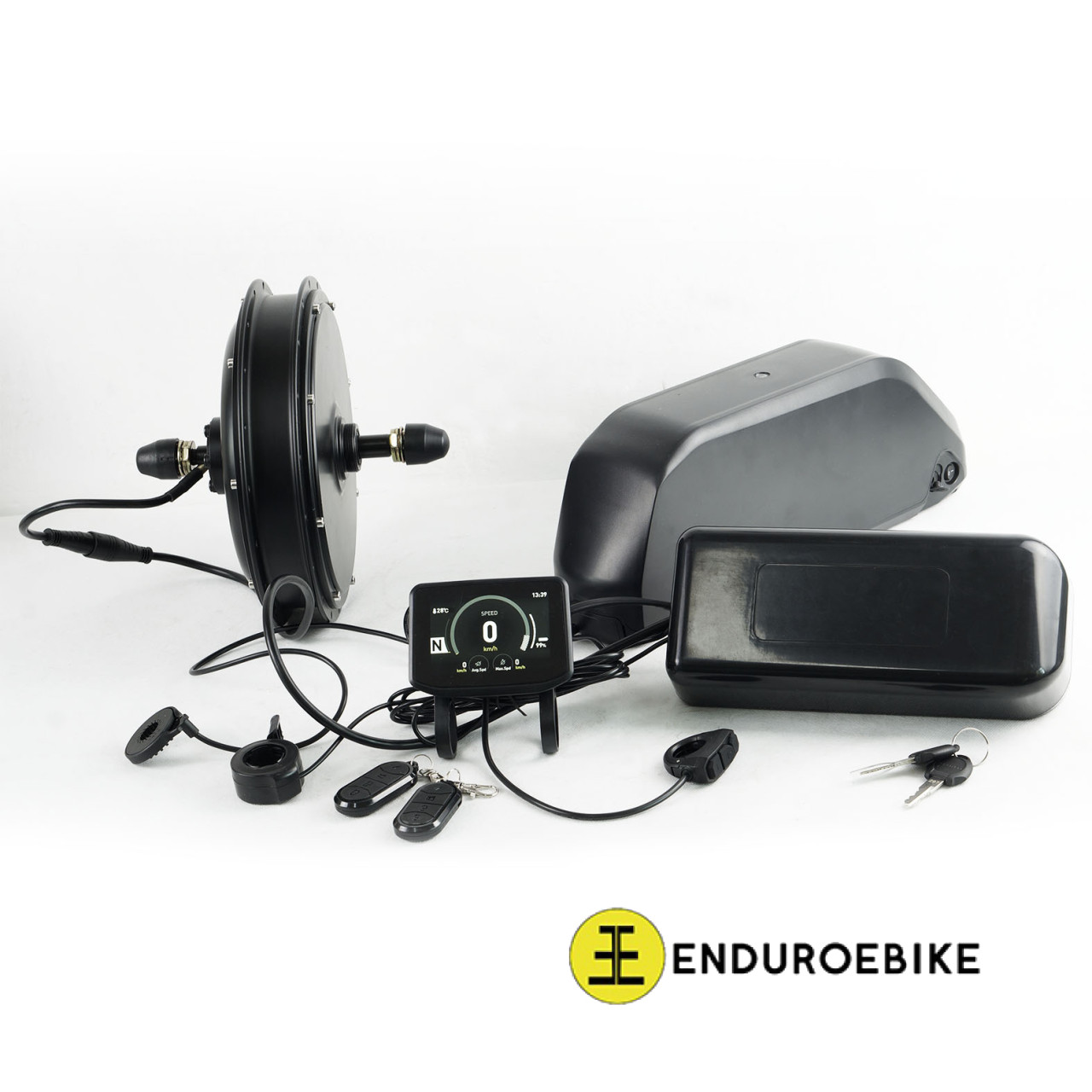

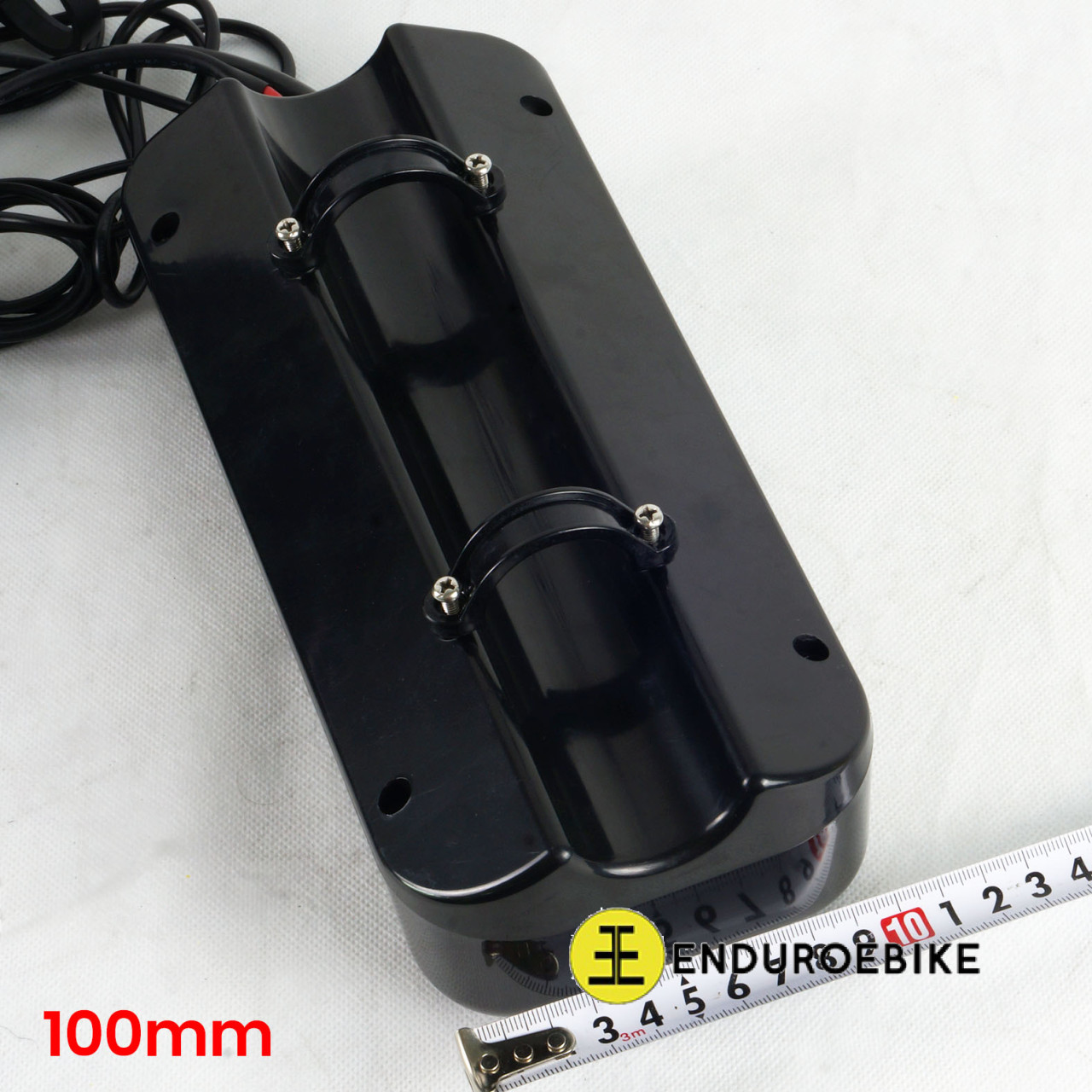

You can install this kit on almost any bike. 1500w Motor for the rear fork of the frame with dropouts of 135-140 mm. The controller has a convenient plastic housing that can be installed on the frame tube. The battery has a capacity of 24.5ah which is a record holder among quick-release batteries today.
Battery:
13S7P Panasonic GA, A Grade 18650 3500mah li-ion cell
Weight: 5kg(in removable plastic case)

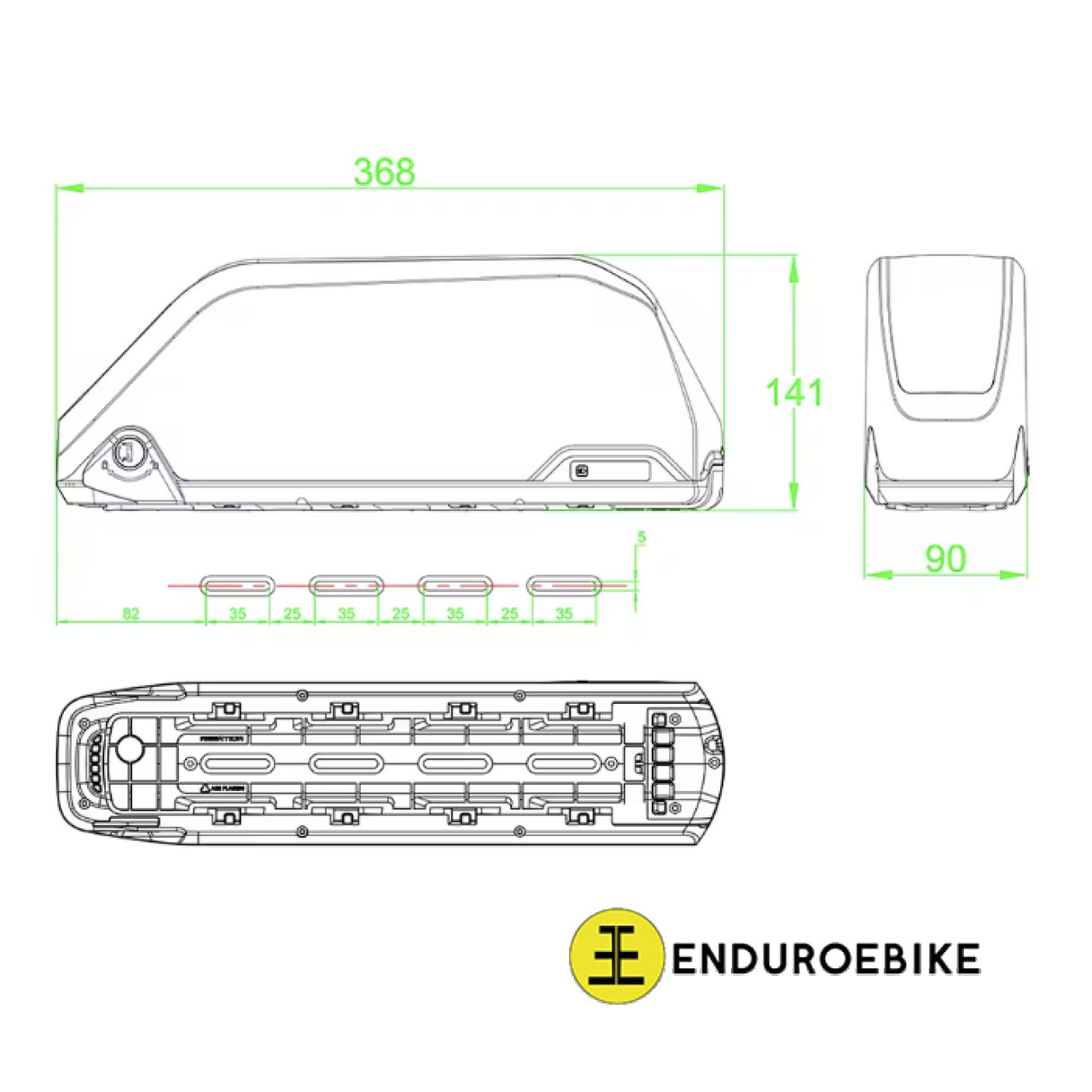

Size: L370mm, W90mm, H142mm
Rated voltage 48v
Max voltage 54,6v
Undervoltage 40v
Rated discharge current 30A
Max continuous discharge current (5 sec) 40A
Recommended charge current 4A
Max charge current 4A
Rated capacity 24,5ah(1176wh)
Charge connector- DC5521 Male
DIscharge connector- Amass XT90 Female
BMS function : Cell balancing, Over-current, Over-discharge, Over-charge, Temperature protection, Secondary protection. Compatible with: any bicycle frame with 2 bolts bottle mount
Charger
54,6v2a
Motor:
Rear direct drive (gearless) brushless hub-motor GARMATA DD/R135/ 48-72V1500W is a perfect balanced solution for the fat electric powered bikes or fat bike conversion kit with 45-55kph speed. The waterproof quick-release connector is a necessary part in any motor-wheel of an electric bike. It makes it much easier to dismantle the wheel in case of repairing a puncture on the way
Disc brake mount ISO 6 x 44mm Freewheel mount 35mm thread.
Rear dropout size 135 X 10мм.
Windings - 5T
Magnets - 46 pcs 35mm.
Phase cables AWG12 - 2,5mm2.
Holes for the spokes - 36pcs 2,3-2,6mm (12-13G)
Axle 14х10mm
Temp sensor (NTC 10k)
Recommended controller - 48-72V 40-50A
Rated power 1500W, Max continuous power 2500W
Unloaded RPM (48v) - 510rpm
Cable length: 25cm + 80cm
Motor type - BLDC 205/30 direct drive hub-motor
Connector- High power waterproof 9pin + Rings phases with normal Male 6pin connector for Hall sensors
Weight 7,8kg
Controller:

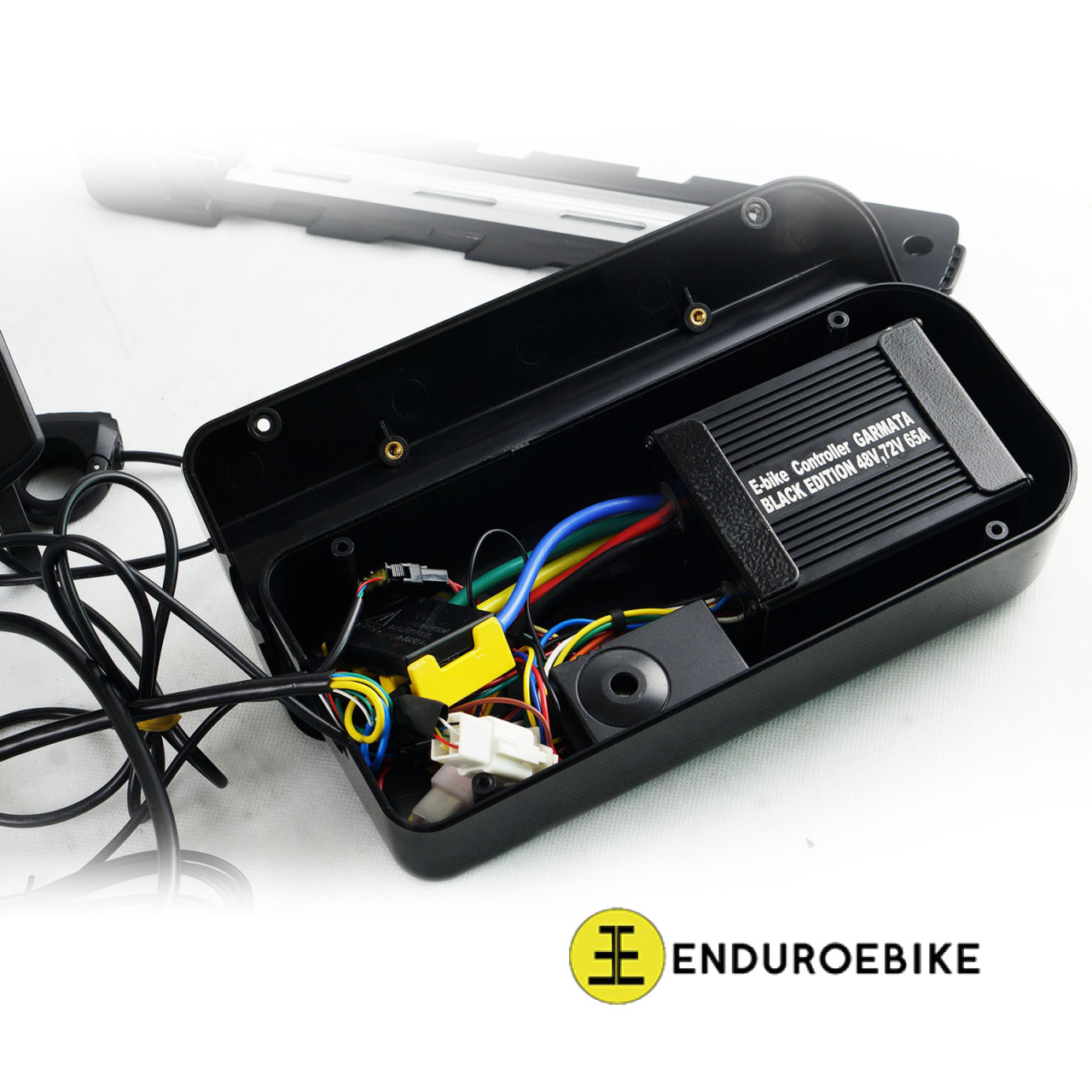

Sine wave controller for an electric bike with adjustable power. The first controller on the market with such a small size and such a big power.
The controller works with the NTC10K motor temperature sensor. This means that the controller has a motor overheating protection function and depending on the outdoor temperature and the size of your motor, you can adjust the controller current yourself. And observe the temperature of the motor while driving.
The controller has a pedaling assistant function that operates on current, not on RPM like many other controllers. This means that pedaling will be more comfortable.
There are 5 driving levels in the controller. at the 1st level, the speed is up to 32 km h(at 72v) and the controller current is cut in half (economy mode). At other levels, the current is 100% (as set in the settings) and the speed is limited depending on the selected level.
Size: 10cm x 7.5cm x 4.5cm(VERY SMALL)
Power: 48v, 40A
Full controller description- https://www.enduroebike.com/catalog/controllers/gbev1_5000w
