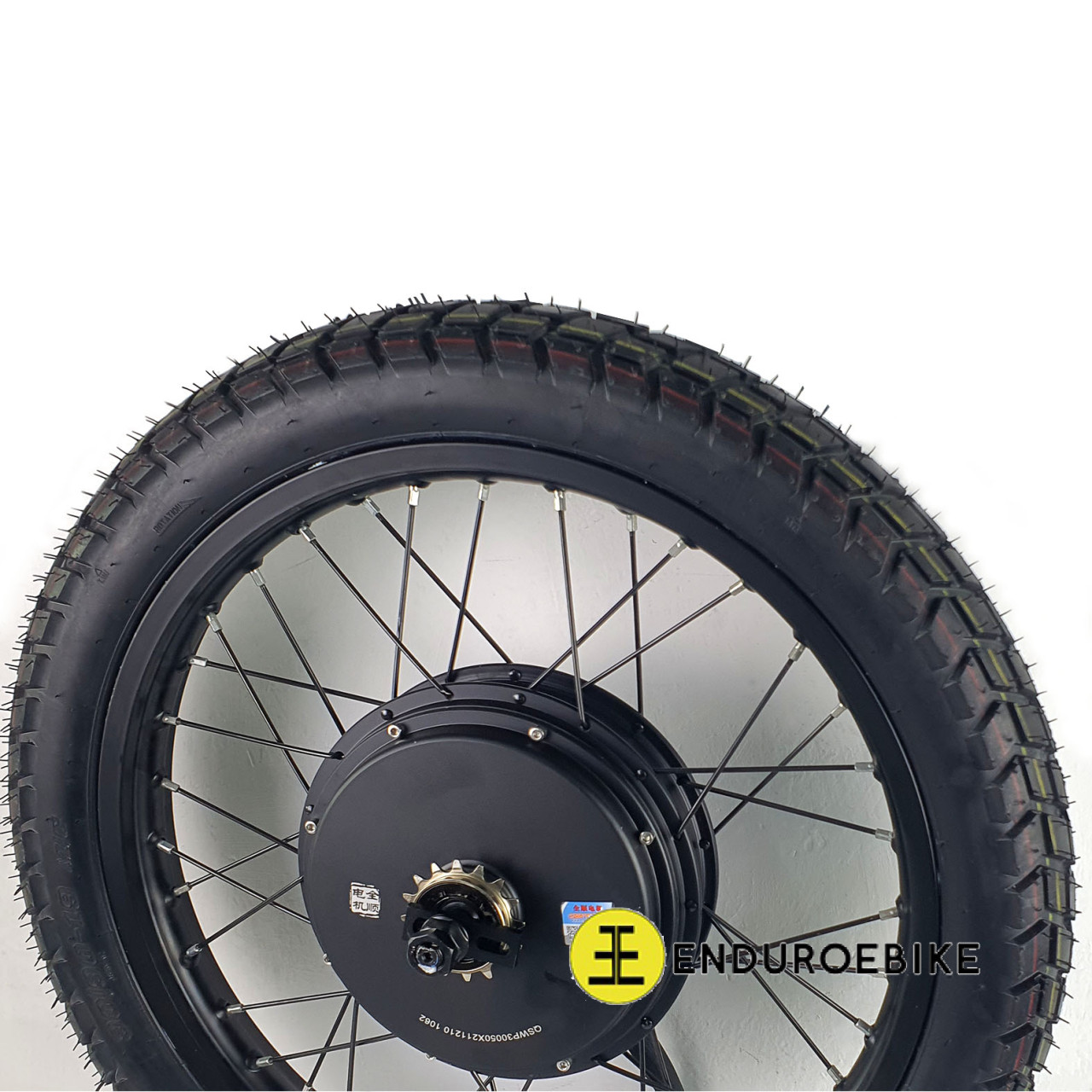

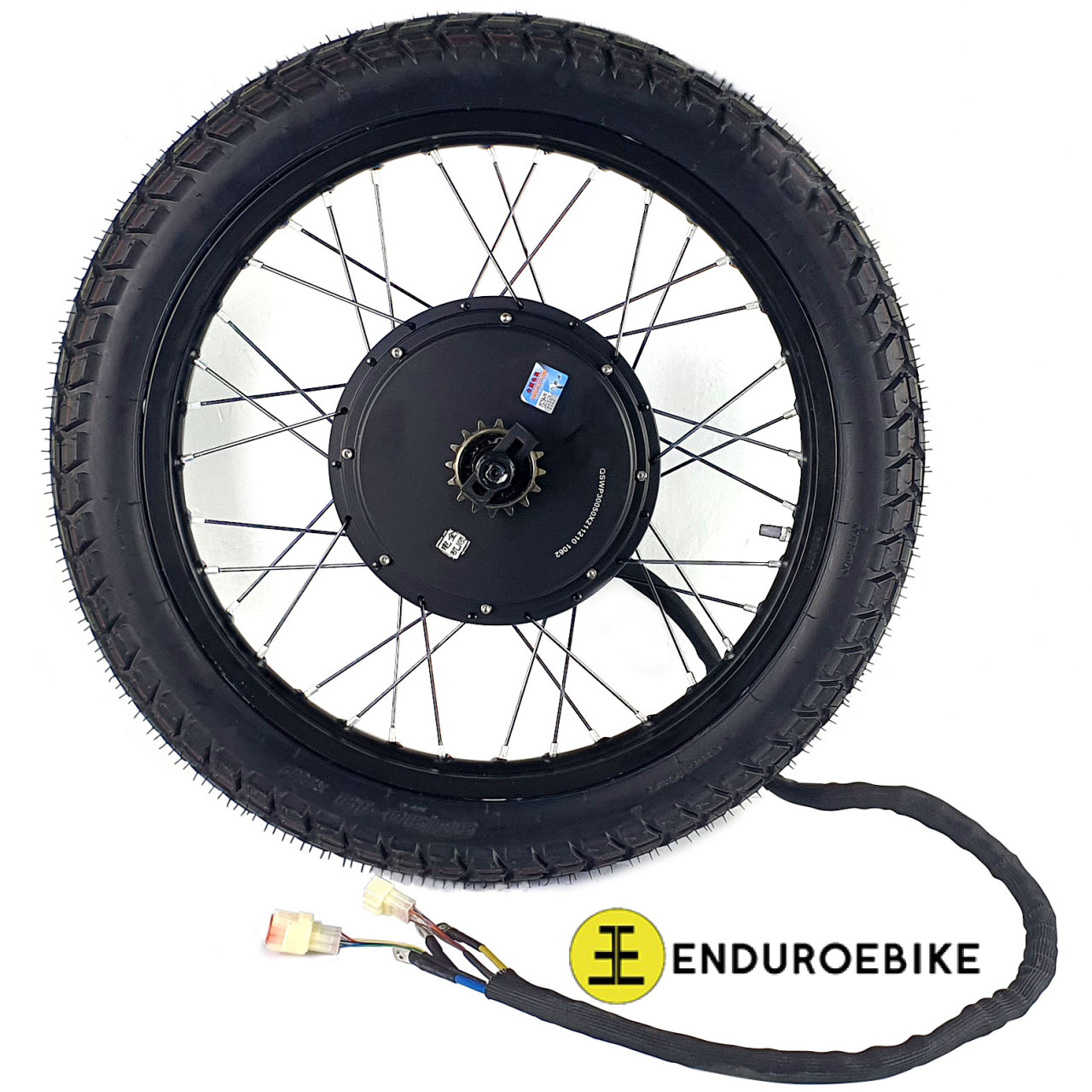

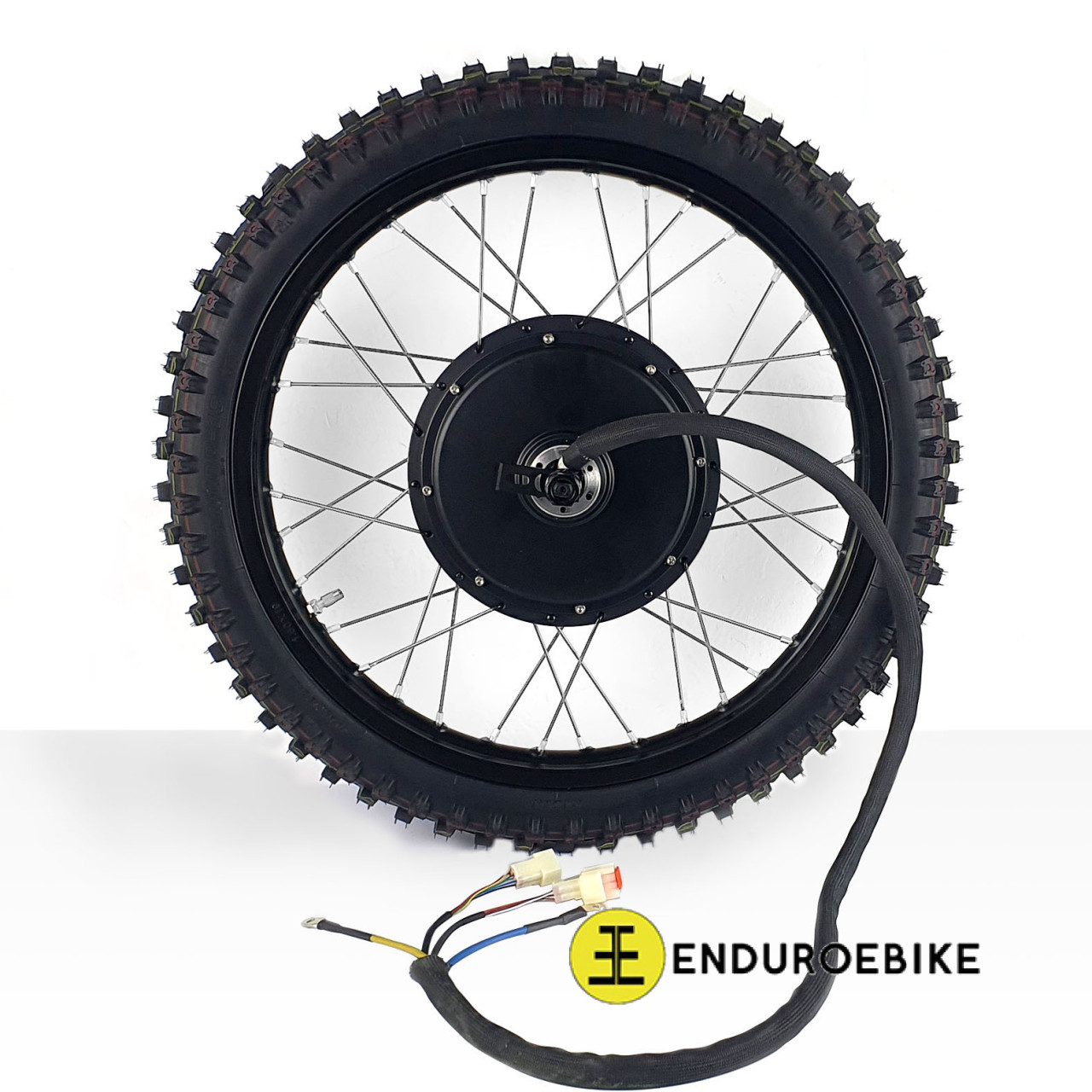

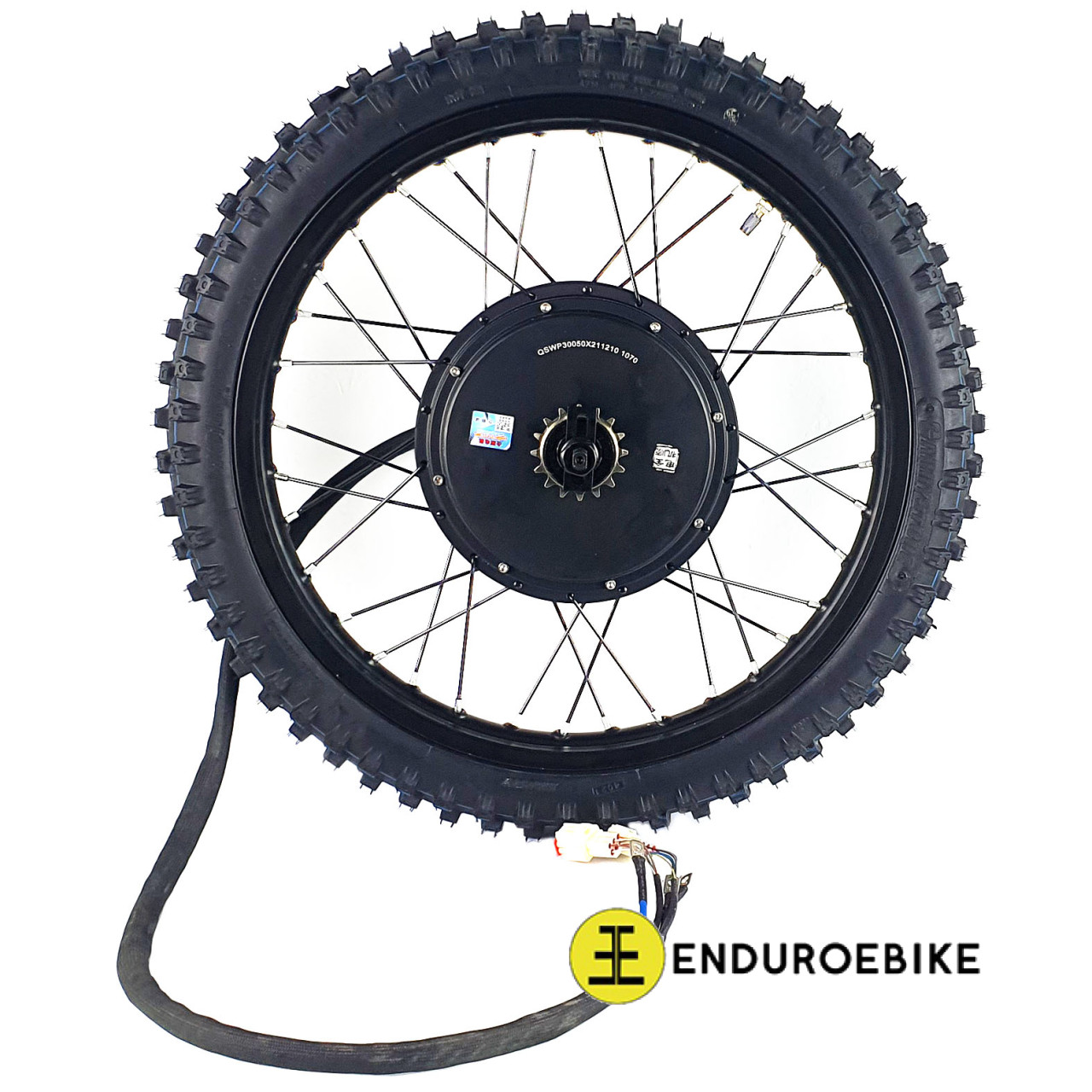

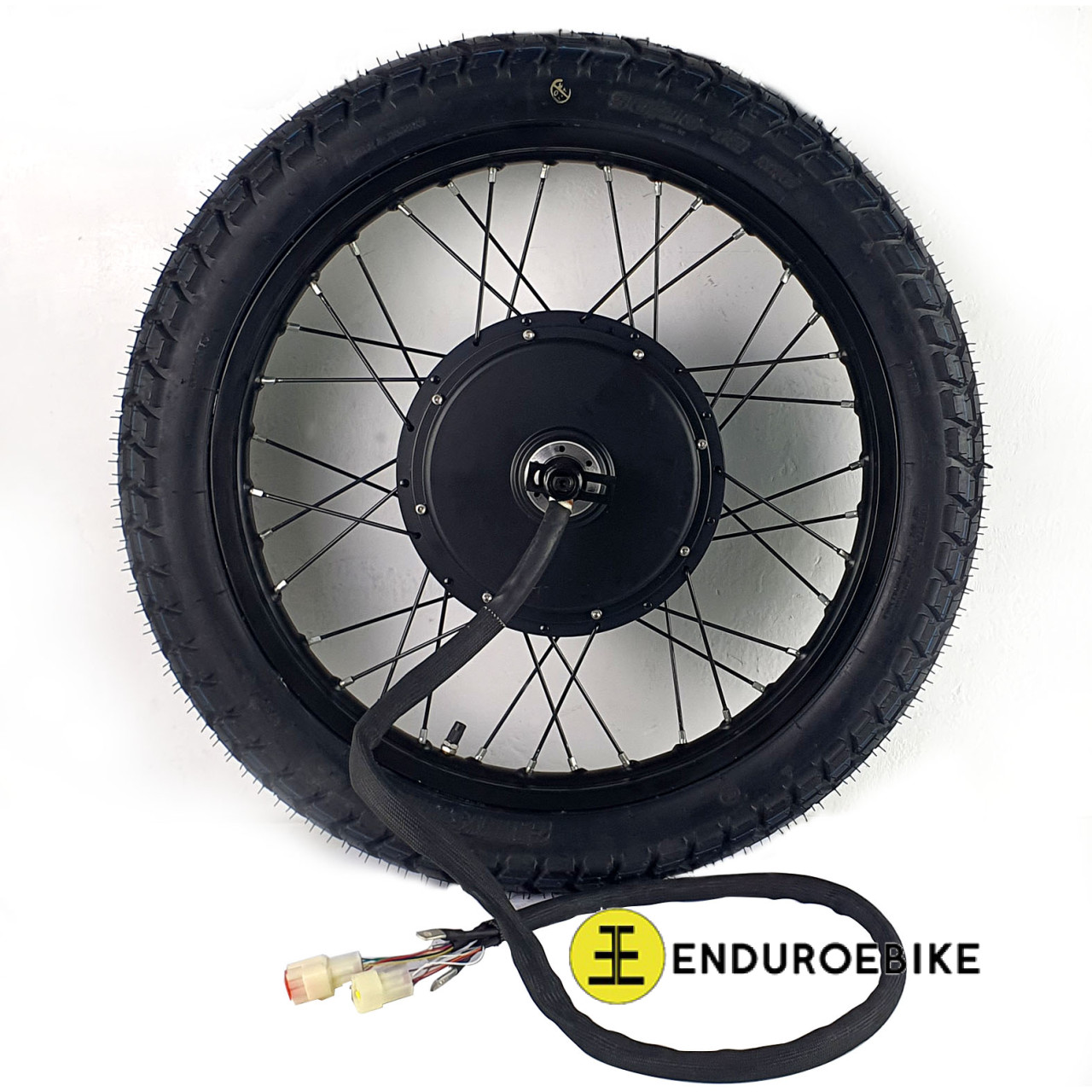

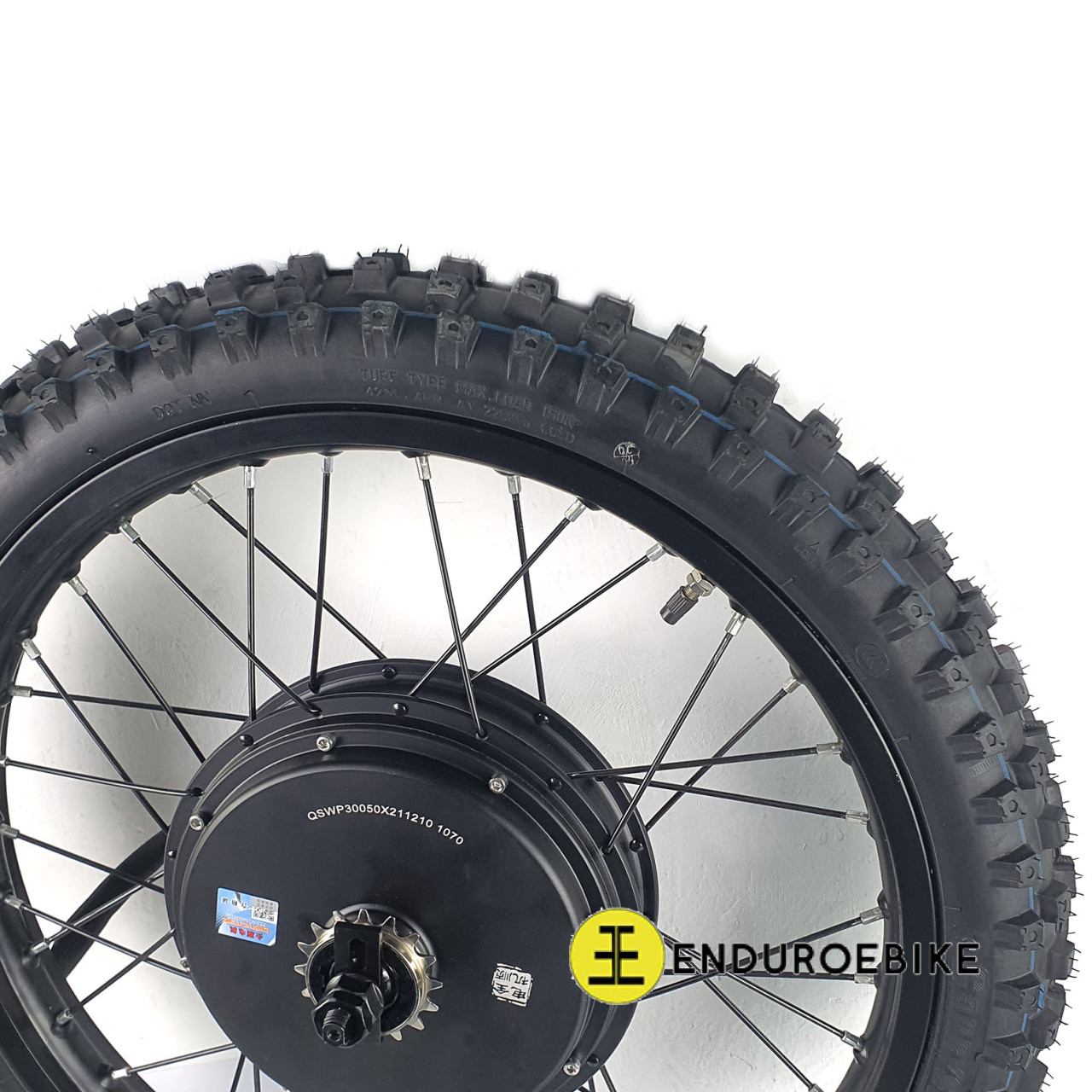

This is e-bike wheel is a perfect balanced solution for ultrapowered e-bike.
Laced in 19x1.6 inch moto rim. We also have 16, 17, 18 rims. All heavy wheels we sell with tire, cause it is rim protection during delivery (tire is gift)
We recommend to use moto rims because the speed 75+kph is too high for bicycle components.
Quanshun motor 205 V3 comes with built in temp sensor.
There are two versions of motors available - 5T and 3,5T.
5T version for 80kph comes by default.
3,5T is high speed version for 100+kph, we recommend it only if your battery can deliver 150A continuous current to controller.
The spokes are 3,2mm black. Motor and rim also black.
Rim
Alloy
19inch
1,6inch wide
black
Tire Road 90/90-19(3.6kg, 80mm wide) or Off-road 70/100-19(2.5kg, 75mm wide)
Motor
Disc brake mount ISO 6 x 44mm
Freewheel mount 35mm thread.
Rear dropout size 150-170mm X 10мм.
Recommended rim 17-19 inch moto.
Windings - 3,5T or 5T ( choose 3,5T only if your battery and controller can deliver more than 100A continuous current)
Stator - Aluminum alloy
Magnets - 46 pcs 50mm.
Phase cables AWG8 - 10mm2.
Holes for the spokes - 36pcs 4,2mm
Axle 16х10mm
Temp sensor (KTY83/122)
Recommended controller - 72-96V 50-100A
Rated power 4000W, Max power 10000W
Motor type - BLDC 205/50 direct drive hub-motor
Freewheel
16t (9speed chains compatible)
