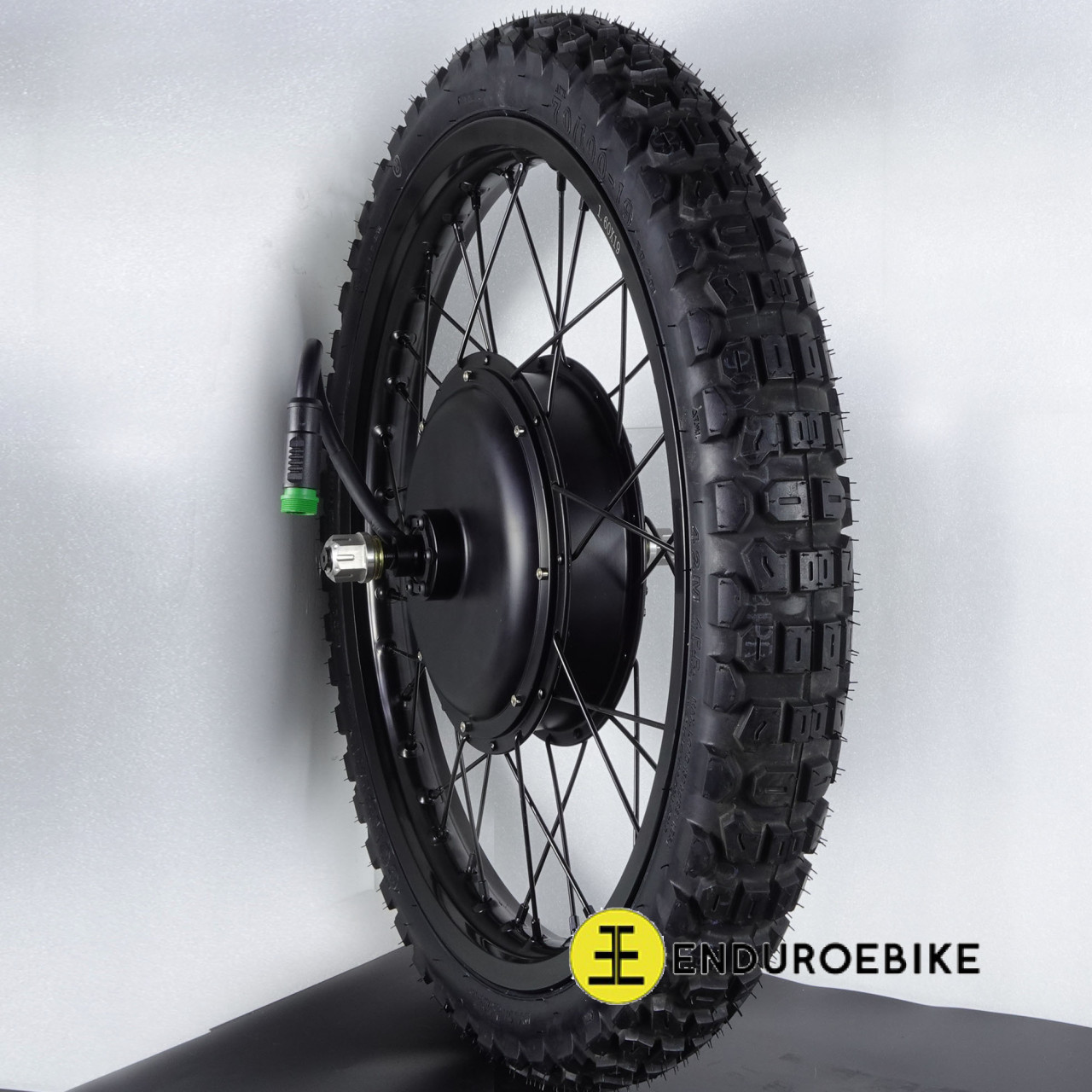

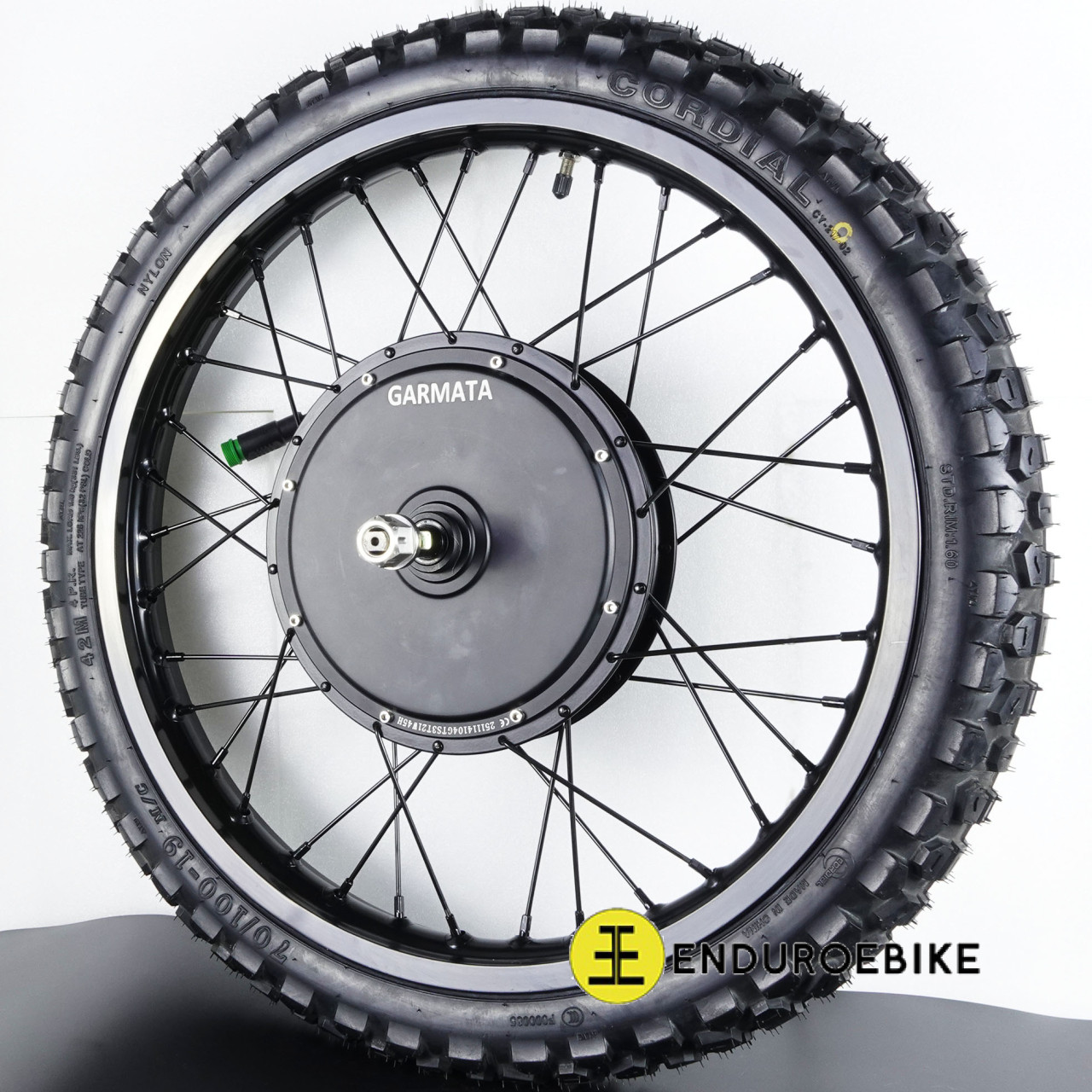

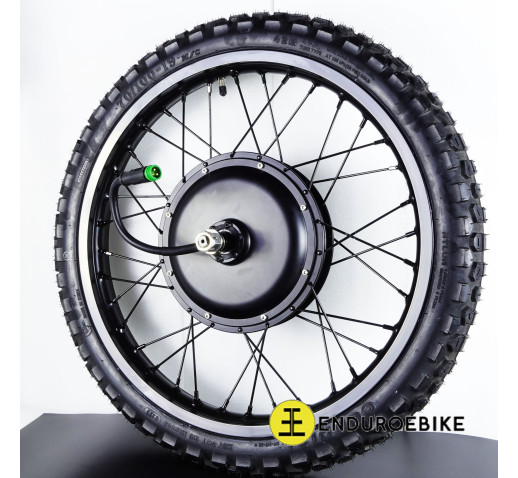

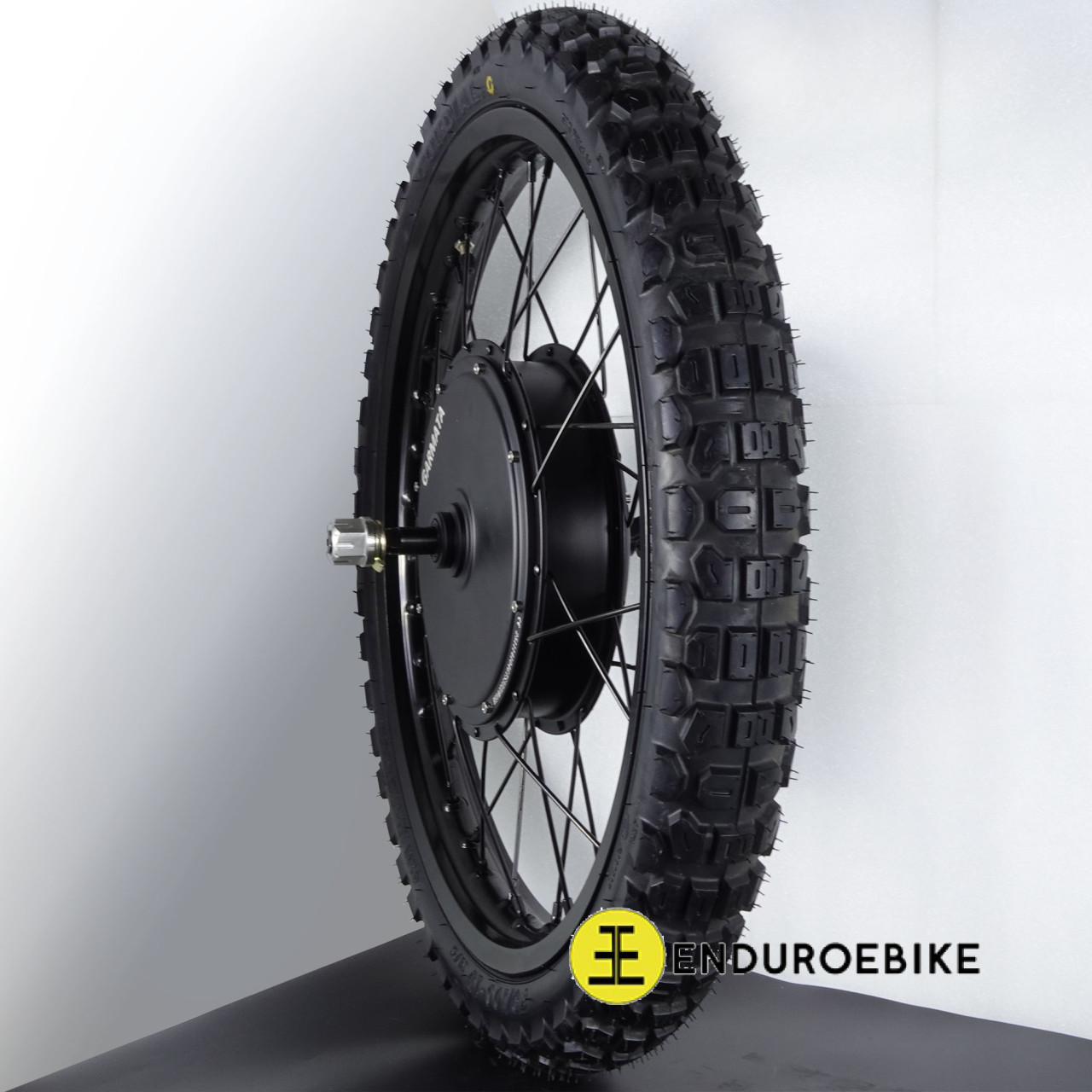

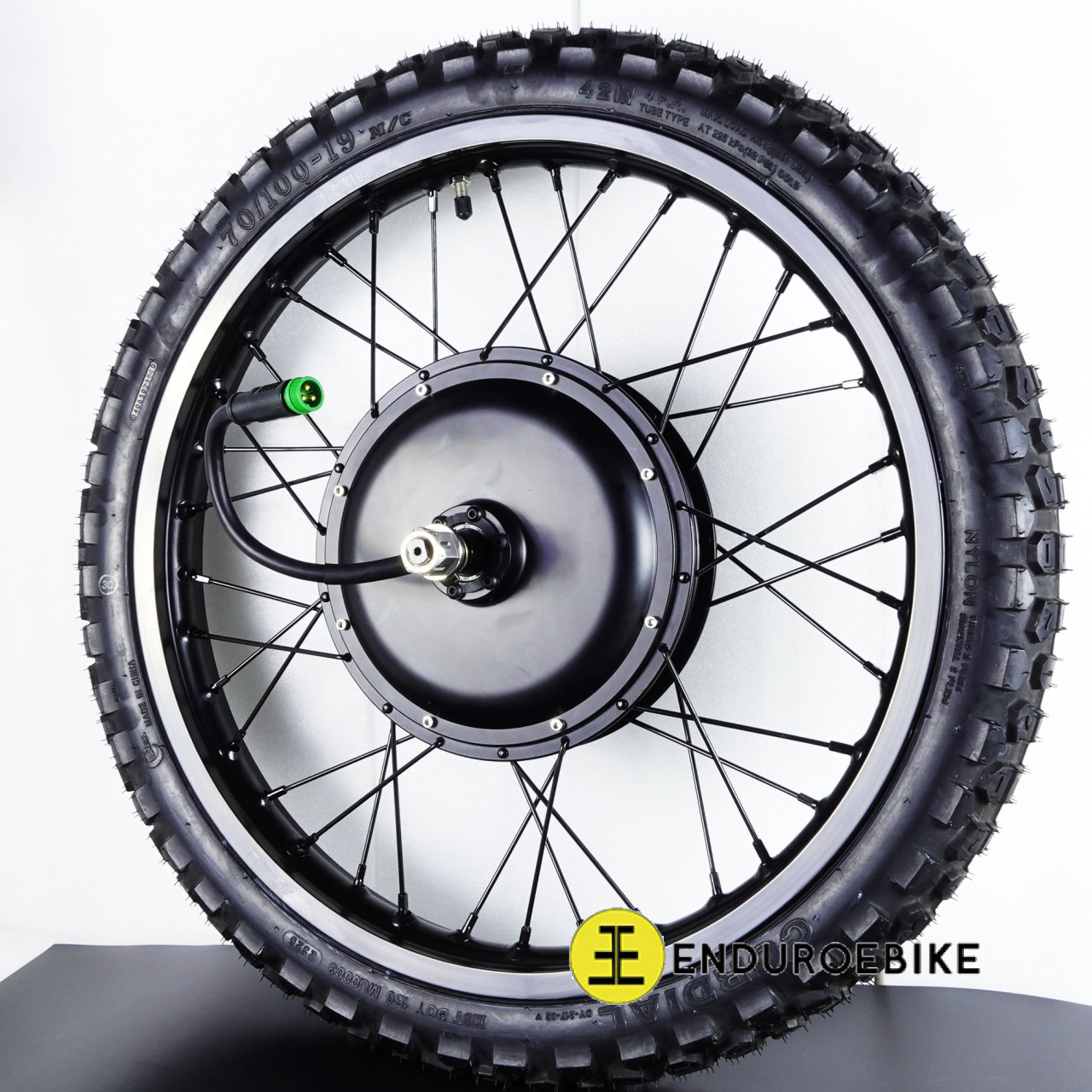

19inch Rear Wheel 48-72v 3kW All-Terrain 155mm consist of:

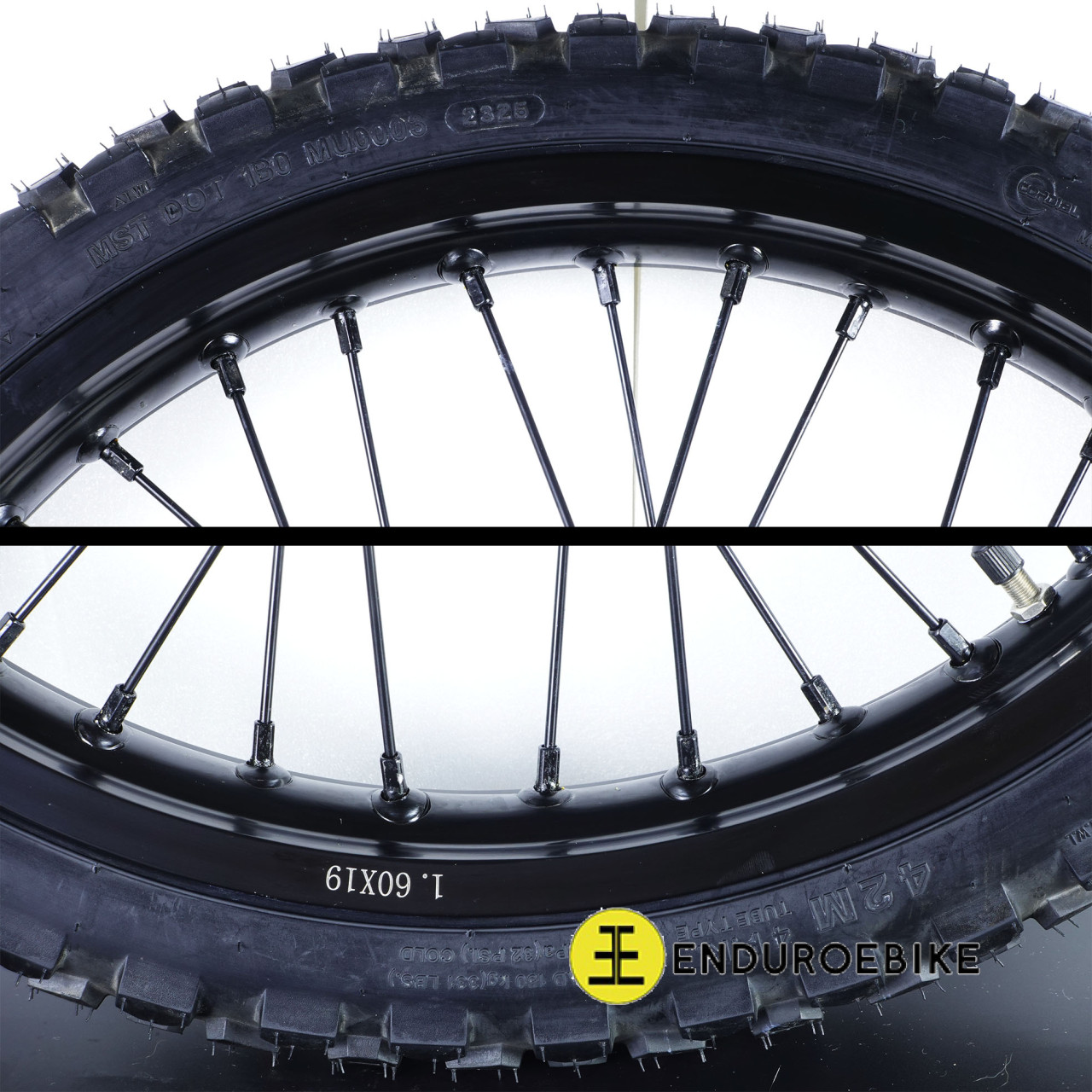

RIM:

19x1.6inch / Black / ALLOY / 36h

SPOKES:

10g Steel / Black

TIRE:

70/100-19 All-Terrain(2.8kg)

MOTOR:

Rear direct drive (gearless) brushless hub-motor GARMATA DD/R/155/ 48-72V3000W is the best solution for confident driving on an asphalt or off-road surface at a speed of 50-70 km / h.

The price-performance ratio is attractive to potential users.

The reliability of direct drive motors is time-tested.

The new version got a powerful waterproof connector and 304 stainless steel nuts.

You no longer have to worry about rusty nuts with lost rubber caps and the problem of removing the wheel without disassembling the whole bike to pull the cable from the controller.

Holes for the spokes - 36pcs  2,6-3,2mm (10-12G)

Axle- 16х10mm

Temp sensor (NTC 10k)

Recommended controller - Garmata 48-72v 65a

Rated power 3000W, Max continuous power 5000W

Unloaded RPM (48v) - 610rpm

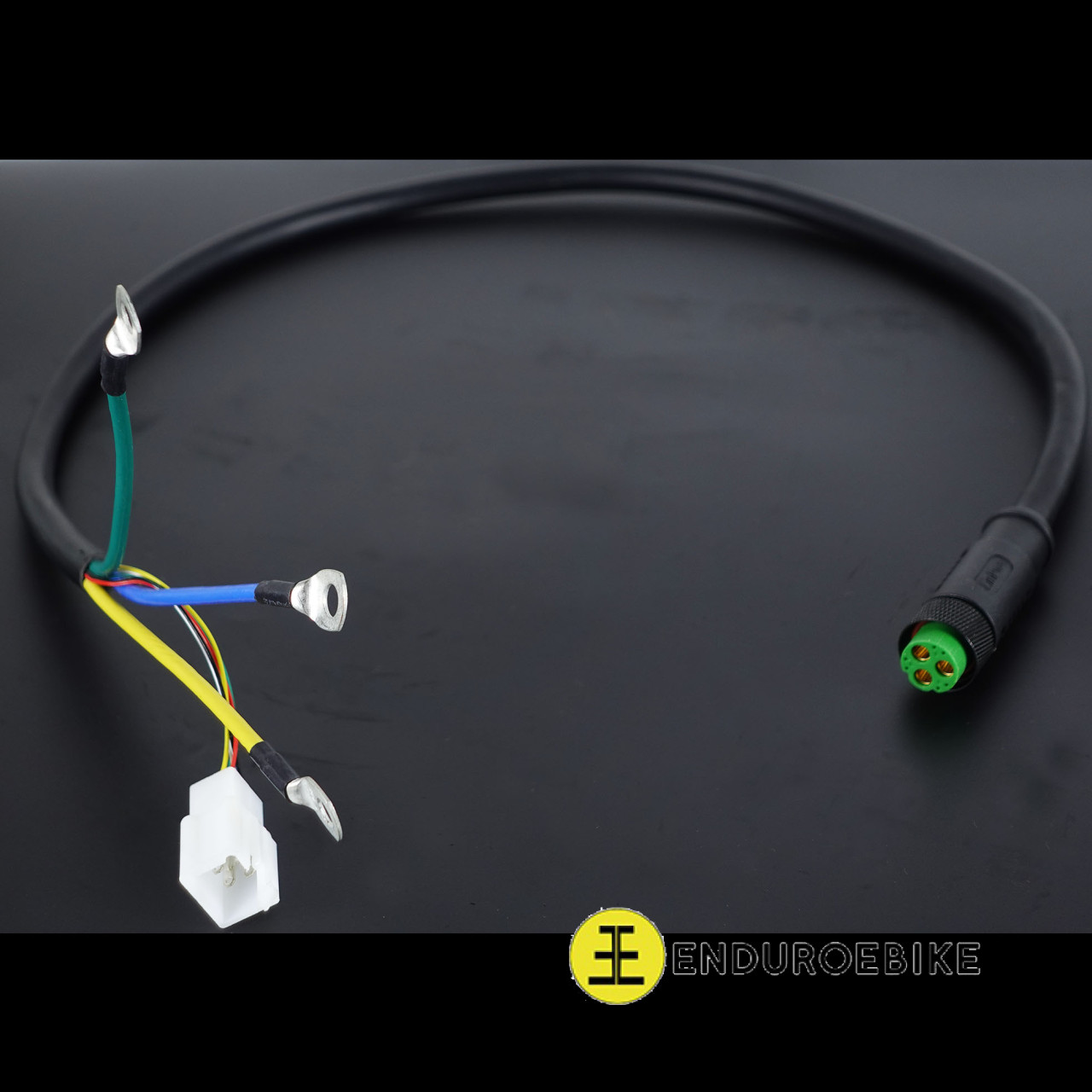

Cable length: 80cm(controller side)+25cm(motor side)

Motor type - BLDC 205/30 direct drive hub-motor

Windings - 3T(speed: 26inch wheel/48v- 55km/h, 26inch wheel/72v- 75km/h)

Magnets - 46 pcs 45mm.

Phase cables AWG10 - 5mm2.

Weight 9,1kg

Delivery-

Shipping by Air CC (DDP)- The way by plane(the customer does not need to pay for customs and taxes). The tracking number works only when goods leave the customs in the destination country. Seller will not provide paid tax and customs fee receipts.

Shipping by Air (DDU)- The way by plane(the customer needs to pay for customs and taxes). The tracking number works on all routes. They are usually used when needed to receive paid taxes and customs fee receipts.

Shipping by Sea (DDP)- The way by sea or train(the customer does not need to pay for customs and taxes). It is cheaper than by plane, but the delivery time is 40-70 days. Usually for batteries and bulk orders(such as complete e-bikes).  The tracking number works only when goods leave the customs in the destination country. Seller will not provide paid tax and customs fee receipts.

Free shipping- The way by sea or train (the customer does not need to pay for customs and taxes). It is cheaper than by plane, but the delivery time is 40-70 days. Usually for batteries and bulk orders(such as complete e-bikes). The tracking number works only when goods leave the customs in the destination country. Seller will not provide paid tax and customs fee receipts.

FAQ

Why is shipping so expensive?

Delivery by plane is calculated based on actual or volume weight. If the box is large and light, then it is considered volumetric. If the box exceeds the volume weight, it will be counted according to the actual weight. For example, the front tire wheel has a size of 65x65x15cm-6kg. The volume weight will be 65x65x15/6000 = 10.5kg of volume kilograms. If a 65x65x15cm box weighs 12kg, the shipping company will calculate it as 12kg. The cost per kilogram varies from 8 to 12 dollars per 1 kilogram. Also, the cost of delivery may vary depending on the global situation and oil prices.

I don't want to pay for the customs duties. What should I do?

World trade is organised in such a way that any cargo is subject to duty and tax upon importation into the country. Sellers usually have delivery channels for DDU(with duties paid, to the customer's door) and DDP (the customer must pay the duties themselves). Stores always try to provide DDP delivery so that the customer is more comfortable receiving their order. However, DDP delivery is not always available in any country.

How do I find out how much I have to pay to customs?

Duties change frequently, and it is better to ask Google or the GPT chat about the current tariffs of your country's customs (for bicycle or electric bike spare parts) before placing an order.

Why haven't I received the track number yet and why isn't it showing anything?

DDP delivery does not work like regular domestic delivery. There can be several track numbers. The first one is before the destination country, and the second one is inside the country after passing through customs.

What should I do if the product is delayed?

Customs procedures have unpredictable processing times. It may take from a few days to a month. Depending on the situation in the world, seasonality (for example, in February, Chinese customs is overloaded due to the celebration of the Chinese New Year), natural disasters, and others.
