motor for fat bike

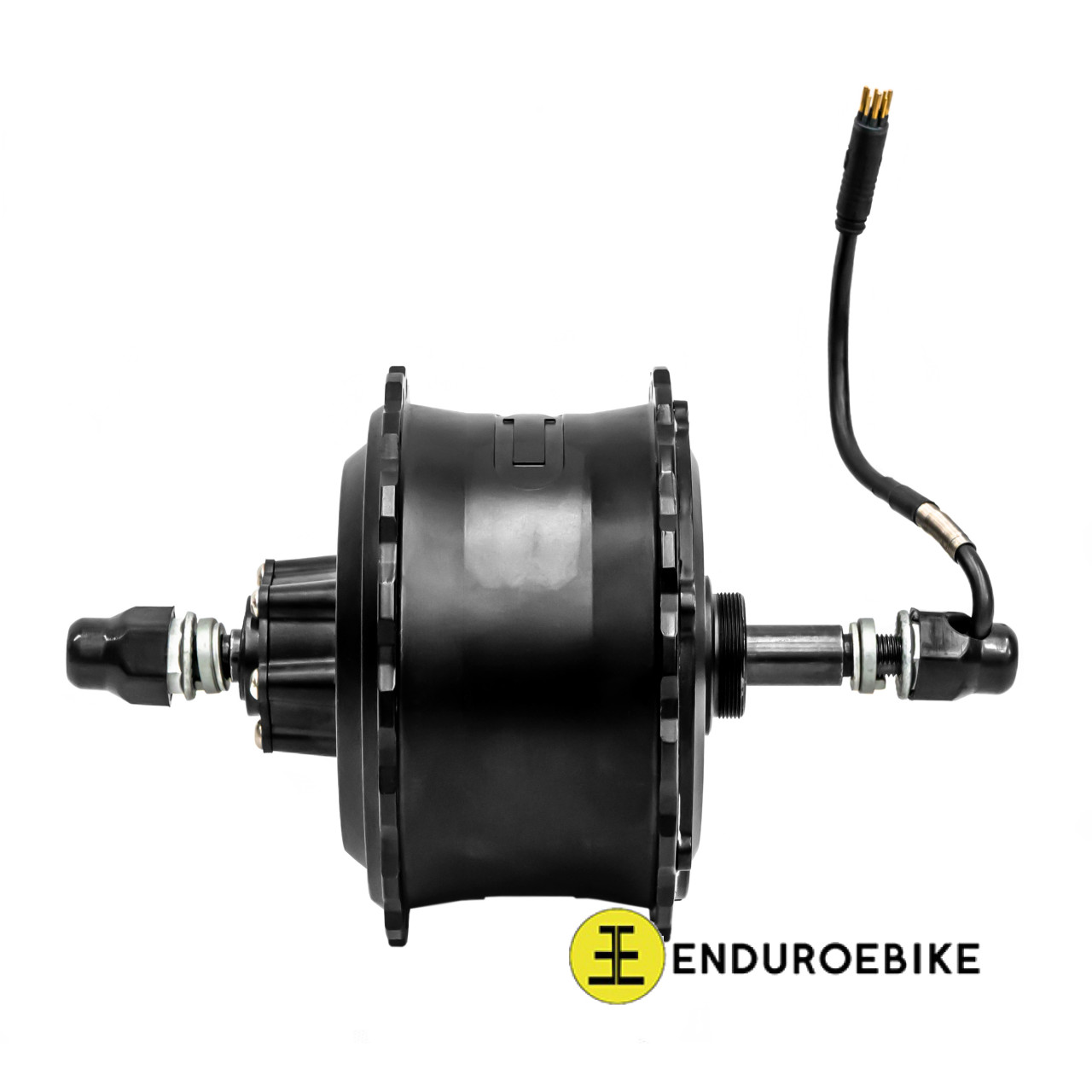

Fat bike motor Geared/R-FAT175mm

  • Brand: EVEL
  • Product Code: R-FAT175mm
50 or more : 65.00$

Rear geared brushless motor for conversion your fat bike into electric drive

Disc brake mount ISO 6 x 44mm
Freewheel mount 35mm thread.

Rear dropout size 175  X 10мм.

Recommended rim 20, 24, 26, 27,5, 28, 29 inch.

Windings -

Magnets -

Phase cables - 1,5mm2

Holes for the spokes - 36pcs 2,3-2,6mm (12-13G)

Axle 12х10mm

Speed sensor

Recommended controller - 48V/15-20A

Rated power 750W, Max continuous power 1100W

Unloaded RPM (48v) - 330rpm

Weight 4kg

Can be supplied with MT60 or waterproof juliette connector.
