- Brand: EVEL
- Product Code: EEB/DD(R)48v500w
We can make windings, logo and connectors according to customer requirements. The minimum quantity with the required parameters is 20pcs.

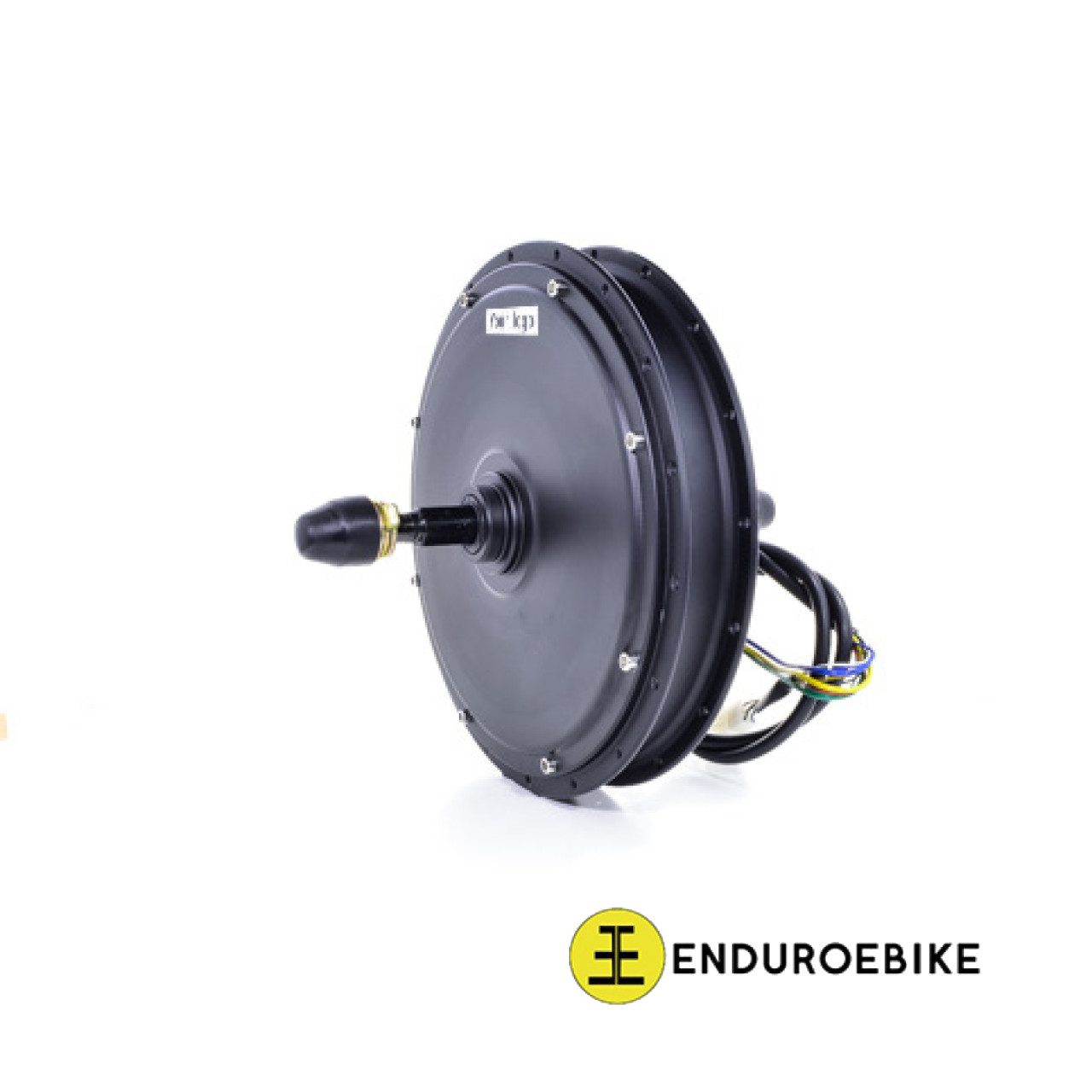

Rear direct drive (gearless) brushless hub-motor EEB DD/R/ 48V500W is a perfect balanced solution for the electric powered bikes or conversion kit with 40-45kph speed.
Disc brake mount ISO 6 x 44mm
Freewheel mount 35mm thread.
Rear dropout size 135mm X 10мм.
Recommended rim 20, 24, 26, 27,5, 28, 29 inch.
Windings - 7T
Magnets - 46 pcs 27mm height.
Phase cables AWG12 - 2,5mm2.
Holes for the spokes - 36pcs 2,3-2,6mm (12-13G)
Axle 14х10mm
Recommended controller - 48V 30A
Rated power 500W, Max continuous power 1000W
Unloaded RPM (48v) - 410rpm
Motor type - BLDC 205/30 direct drive hub-motor
Weight 5,9kg
Can be supplied with MT60 or waterproof juliette connector.
