- Brand: EEB
- Product Code: ST19

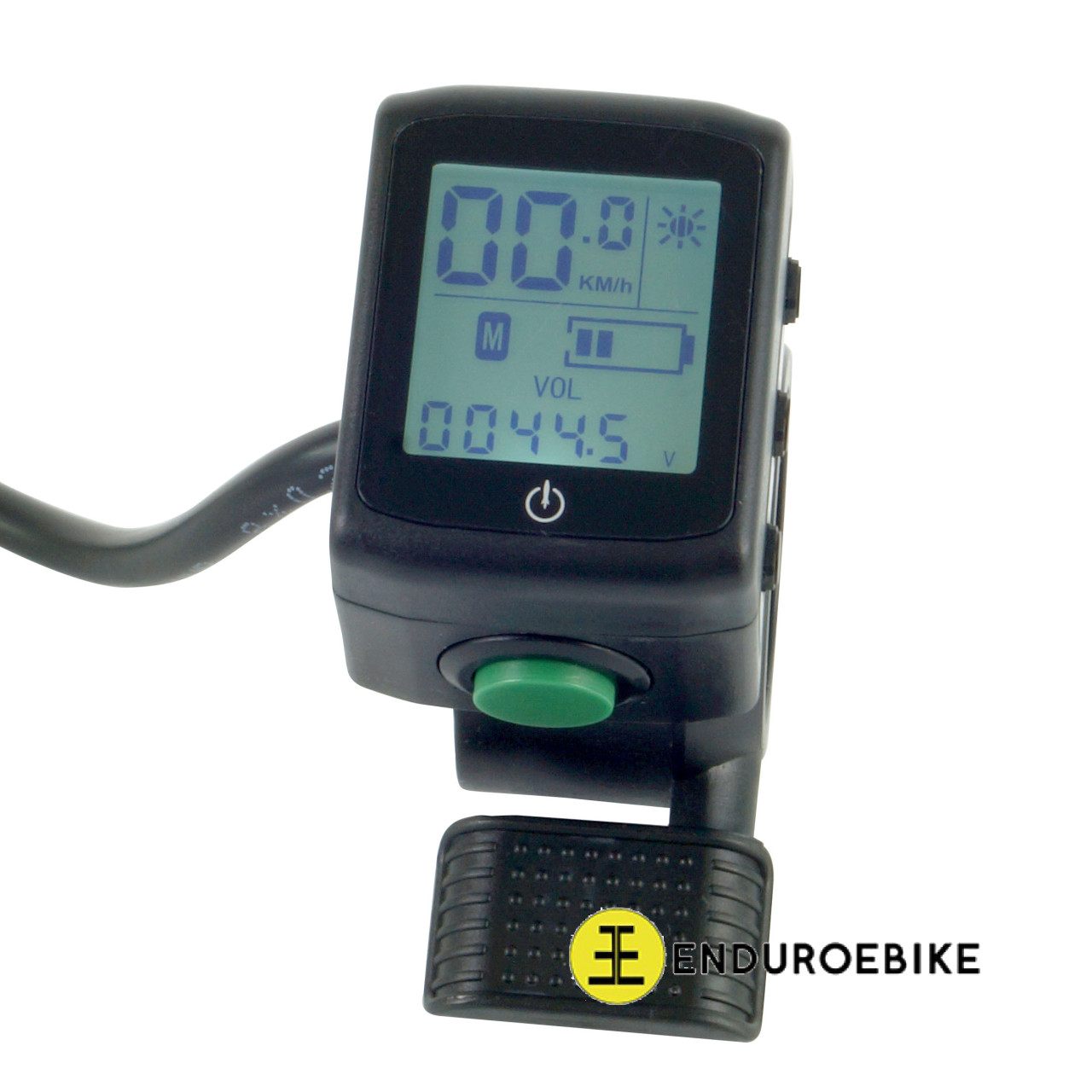

Throttle trigger for e-bike with display.
Super compact solution for any type of e-bike. Can be used on both left and right handlebar side
Functions
for 48v lithium batteries
speed: mi/h or km/h
3 speeds(controller should support this function also)
Connectors:
SM3pin- 3peed
SM5pin- controller power, +48v(brown, red); Throttle (white +5v. green- signal; black- GND)
Yellow cable- motor speed sensor.
display backlight adjustment
work with a built-in motor speed sensor (for gear motors with a speed sensor) or with a hall sensor (for direct drive motors)
odometer
one-time run
run timer
battery voltage
battery indicator
weight: 140gr
cable length: 2m
