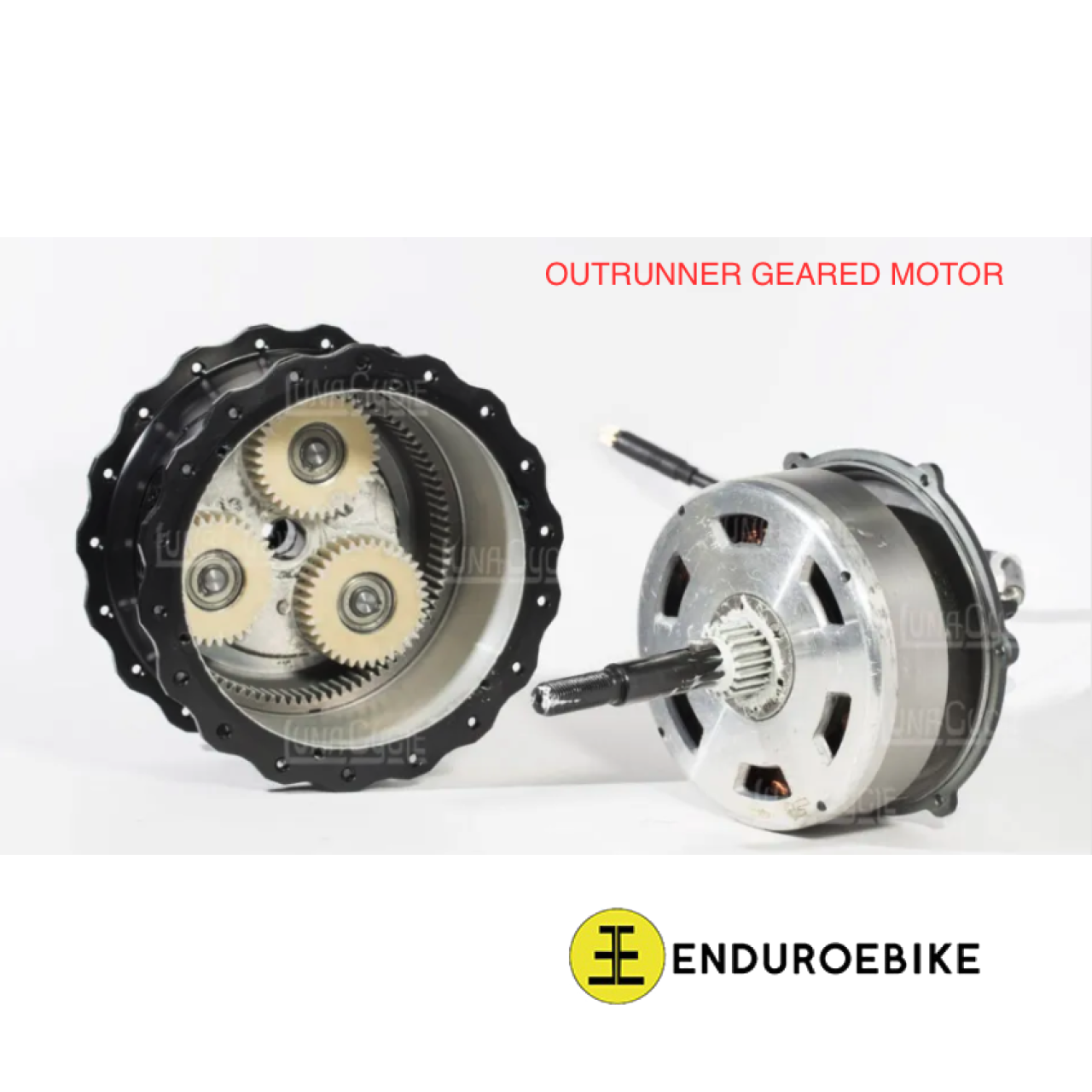

Suitable for Geared(outrunner) motors or direct drive motors(46pc magnets) up to 2000w.

Size: 8.5cm x 5.5cm x 3cm(VERY SMALL)

Power: 48v, 52v, 60v, 72v - 30A

Before buy make sure that your geared motor has speed sensor. Otherwise display will not show the speed

Functions:

Anti theft

PAS：5 levels. Soft work even with a powerful motor thanks to the current control system and not the RPM.

EABS(1-15a. Not adjustable. Regen current depends of speed)

Cruise:To activate, you need to hold down the down key with the gas handle pressed in motion.

6km/h mode：If your bike is very heavy and you need to roll it uphill, then this feature will be useful to you.

The motor turns on the revolutions equal to the pedestrian speed and the bike rides itself next to you. To activate, you need to hold down the down key while walking with a bike.

Adjustabale current(1A-30A)：You can set the required power based on the power of the battery and the motor. Or if you need to set up an economy mode for a long-distance trip.

Adjustable voltage(48v(40-54.6v), 52v(42-58.8v), 60v(48-67,2v), 72v(60-84v))

Zero speed start：When this mode is turned on, you first need to move off on your own and then use the PAS or the throttle.

Level 1- 40% speed, 50% power(from what is set in the settings: 1A-30A), 8a PAS current.

Level 2- 55% speed, 100% power(from what is set in the settings: 1A-30A), 10a PAS current.

Level 3- 70% speed, 100% power(from what is set in the settings: 1A-30A), 12a PAS current.

Level 4- 85% speed, 100% power(from what is set in the settings: 1A-30A), 14a PAS current.

Level 5-100% speed, 100% power(from what is set in the settings: 1A-30A), 16a PAS current.

Drive Mode:0- only PAS, 1-only throttle, 2-throttle+PAS.

This is convenient to use in different scenarios.

For example, if you have strict traffic police restrictions and can only use a PAS. but after going into the forest, you can also use the throttle. The throttle has a quick-release mechanism and a waterproof connector. Its installation will take no more than a minute.

Auto light：The display has a light sensor that can automatically turn on the lighting system when it gets dark or when you enter a tunnel. PAY ATTENTION- LIGHT SYSTEM MUST BE UP TO 20W. Also this sensor can adjust the brightness of the display

Password：You can use a password when the display is turning ON.

Motor and controller overheat protection：This controller can not to do motor overheat protection cause most small geared motors do not have temperature sensor inside. Display show controller temperature instead.

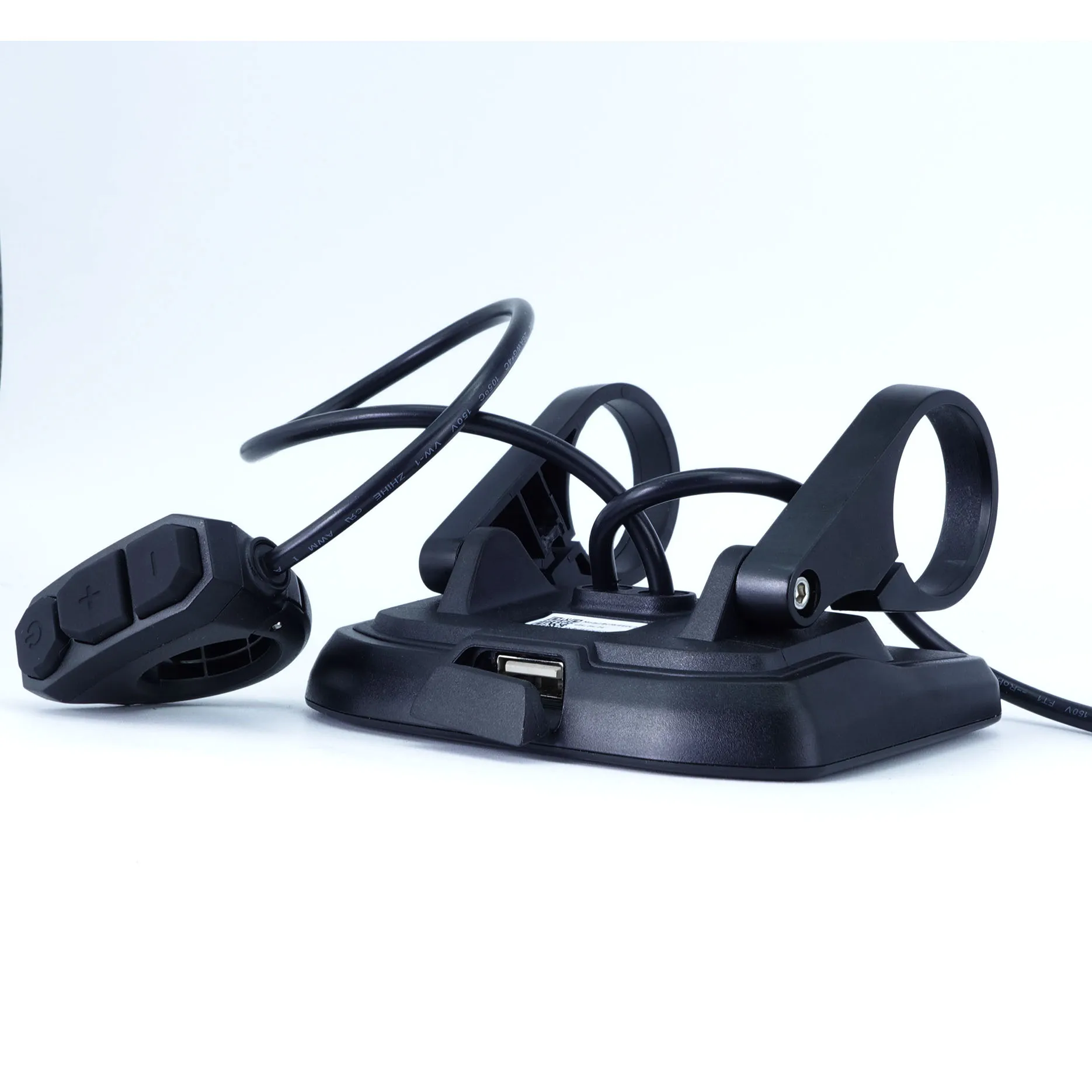

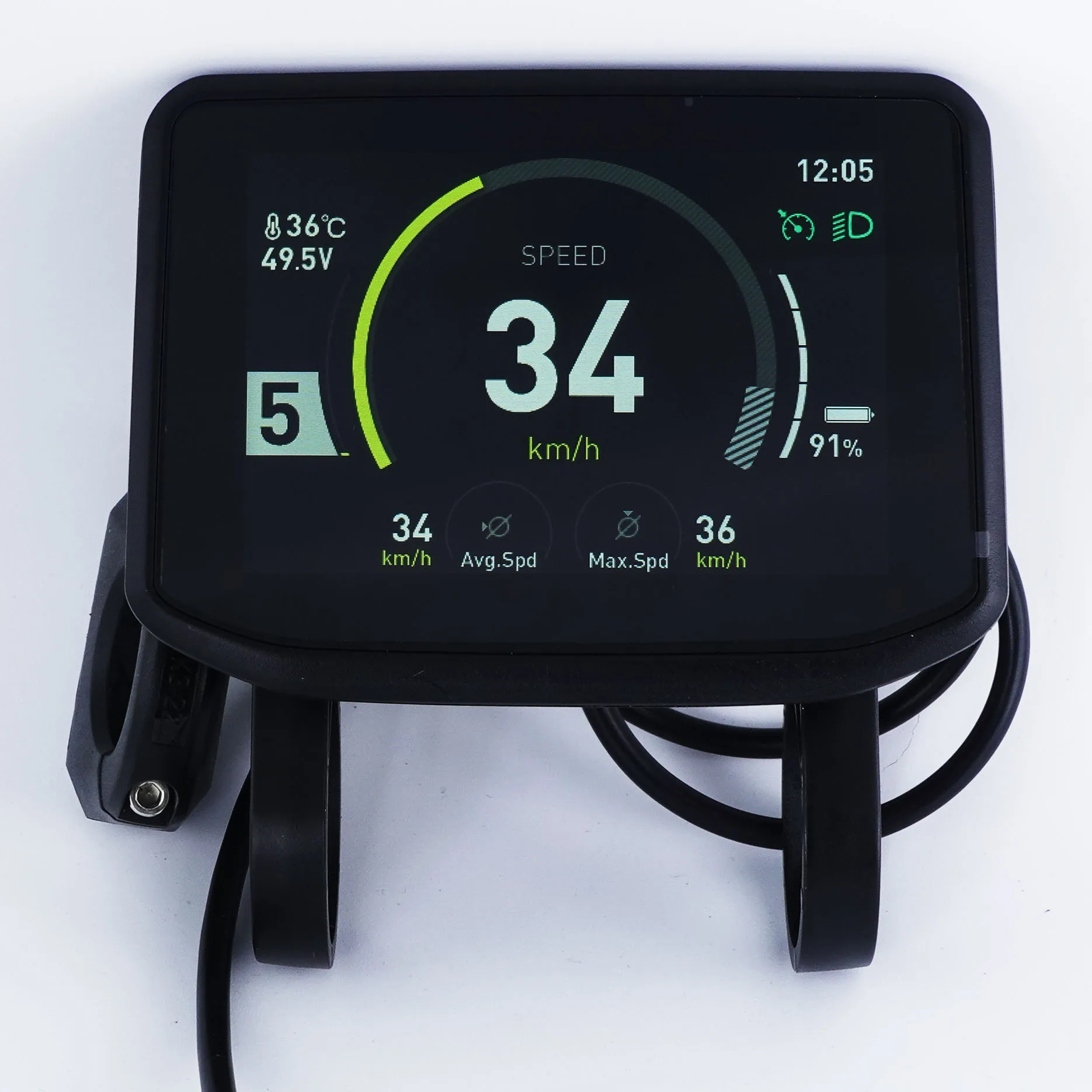

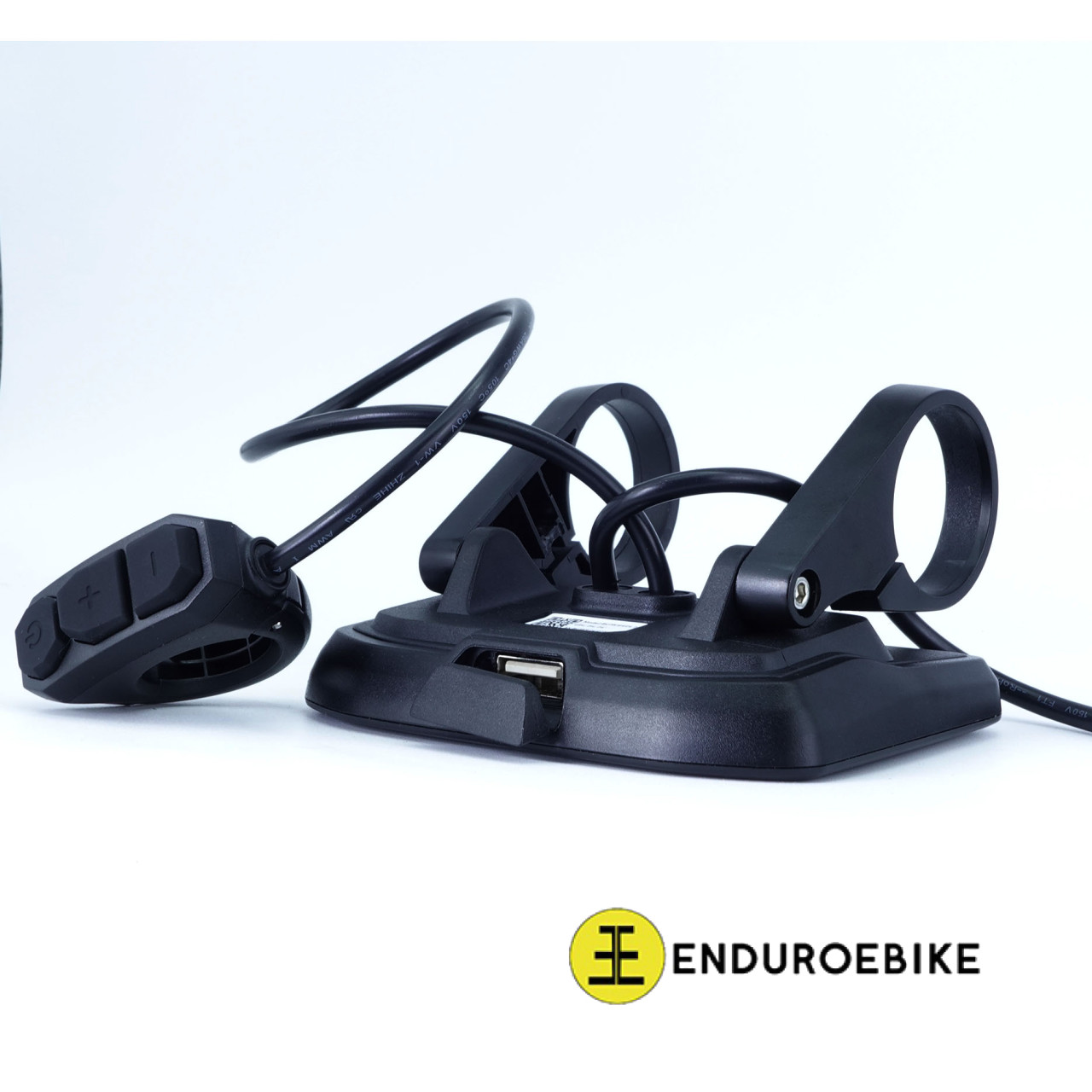

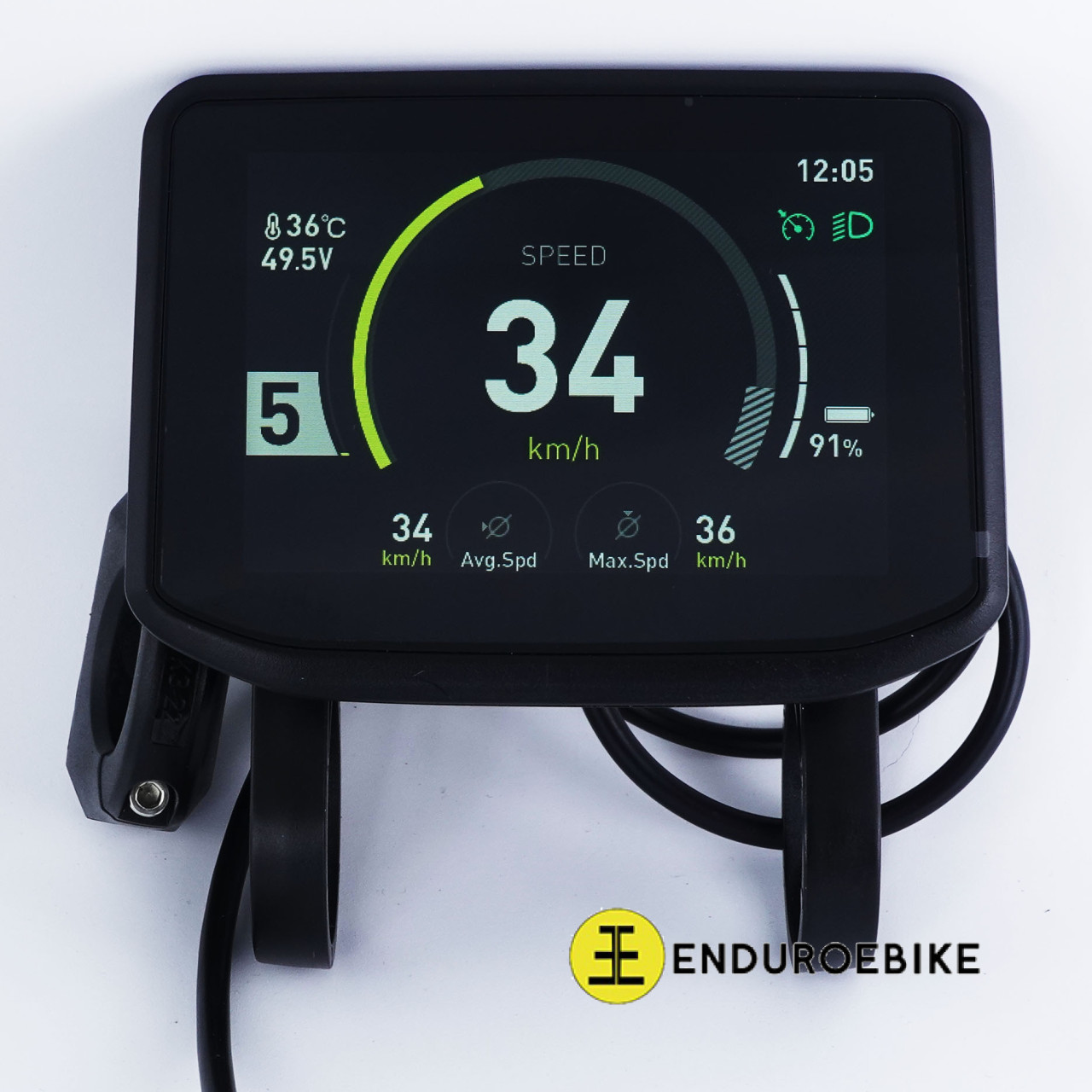

Display: High quality waterproof color display

USB charge port(5v0.5a)

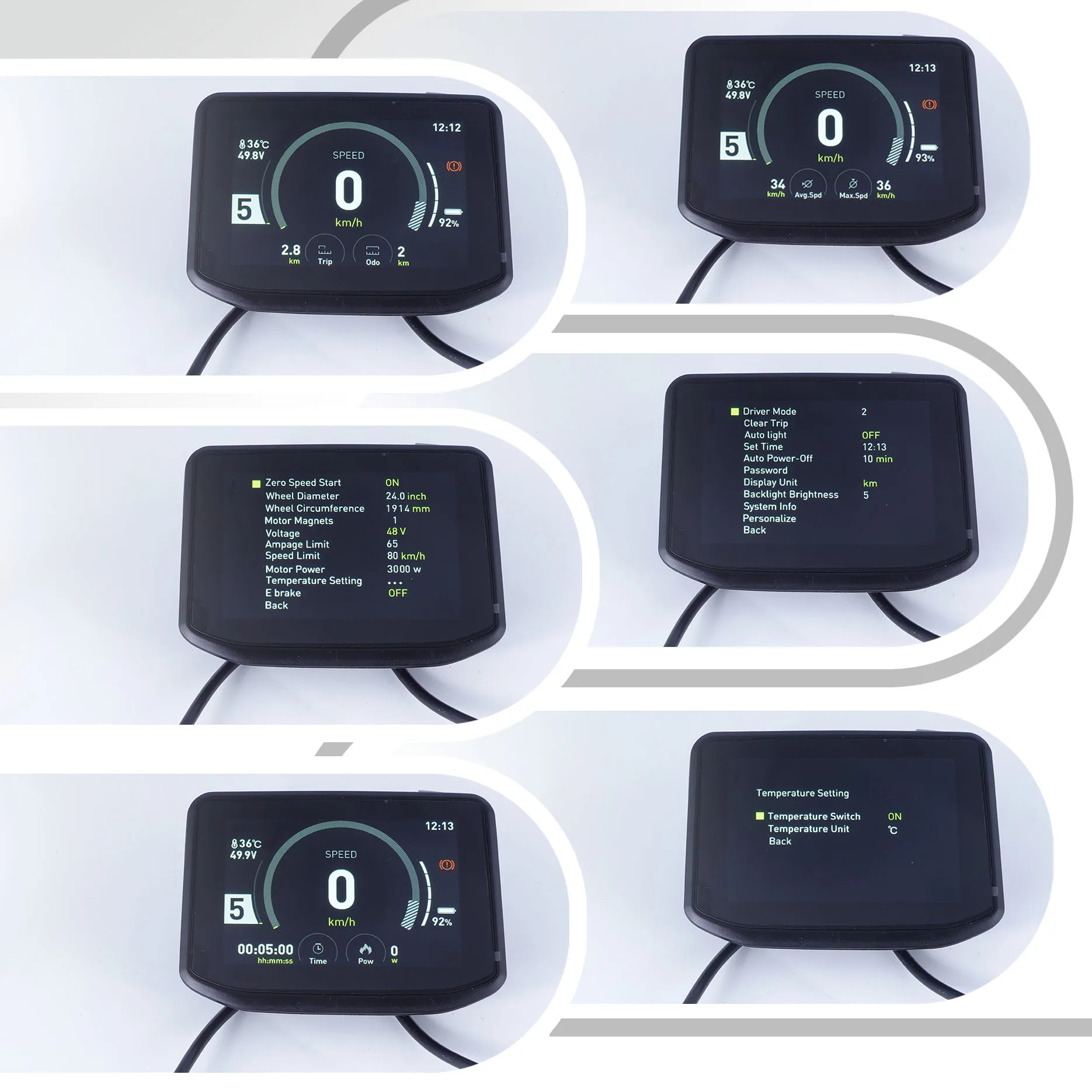

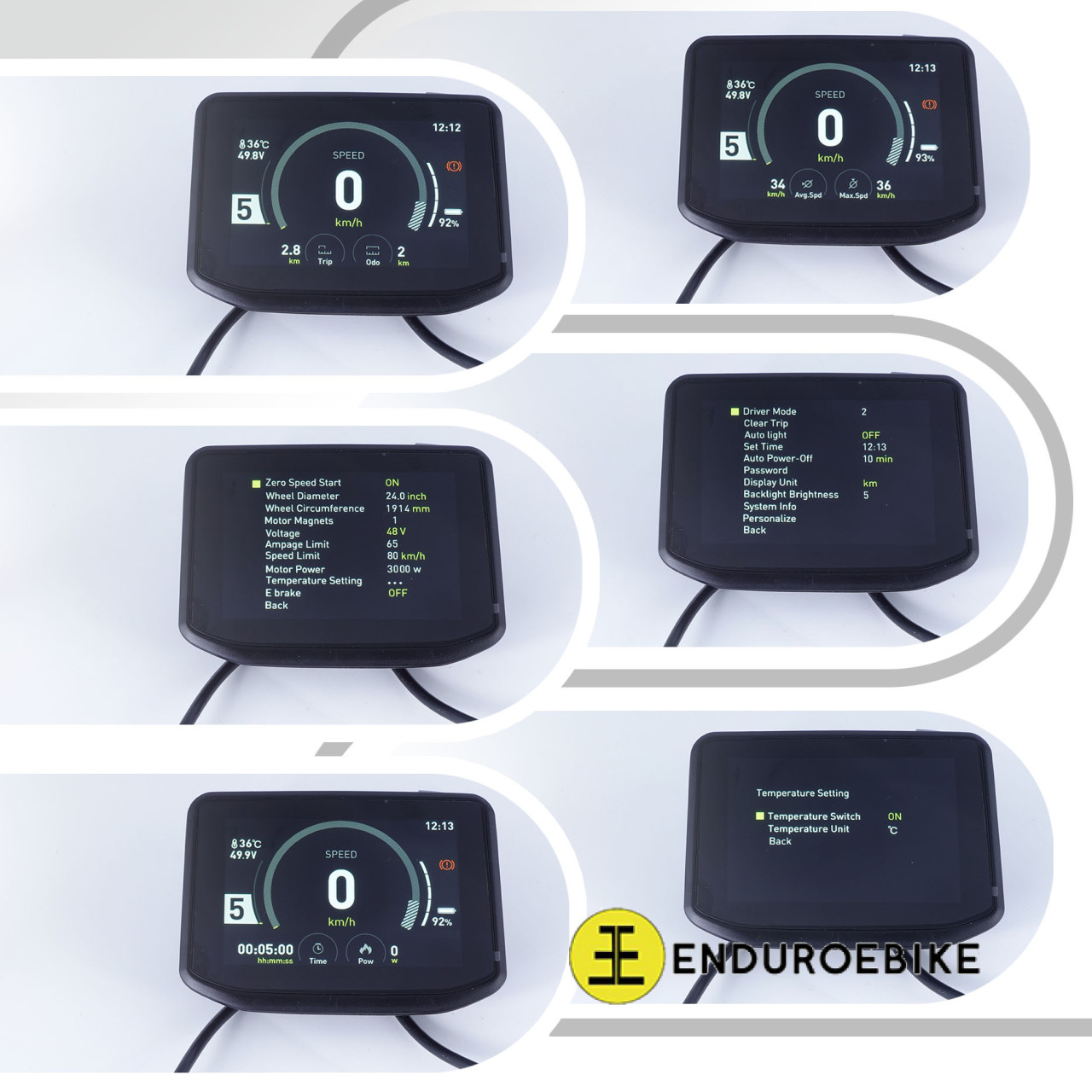

Display show-

speed(Km or Miles), time, trip time, trip km, ODO, current power, max speed, avg speed, battery indication, 5 levels, controller temperature.

Errors:

07 Motor phase error

08 Throttle error

14 Motor hall sensor error

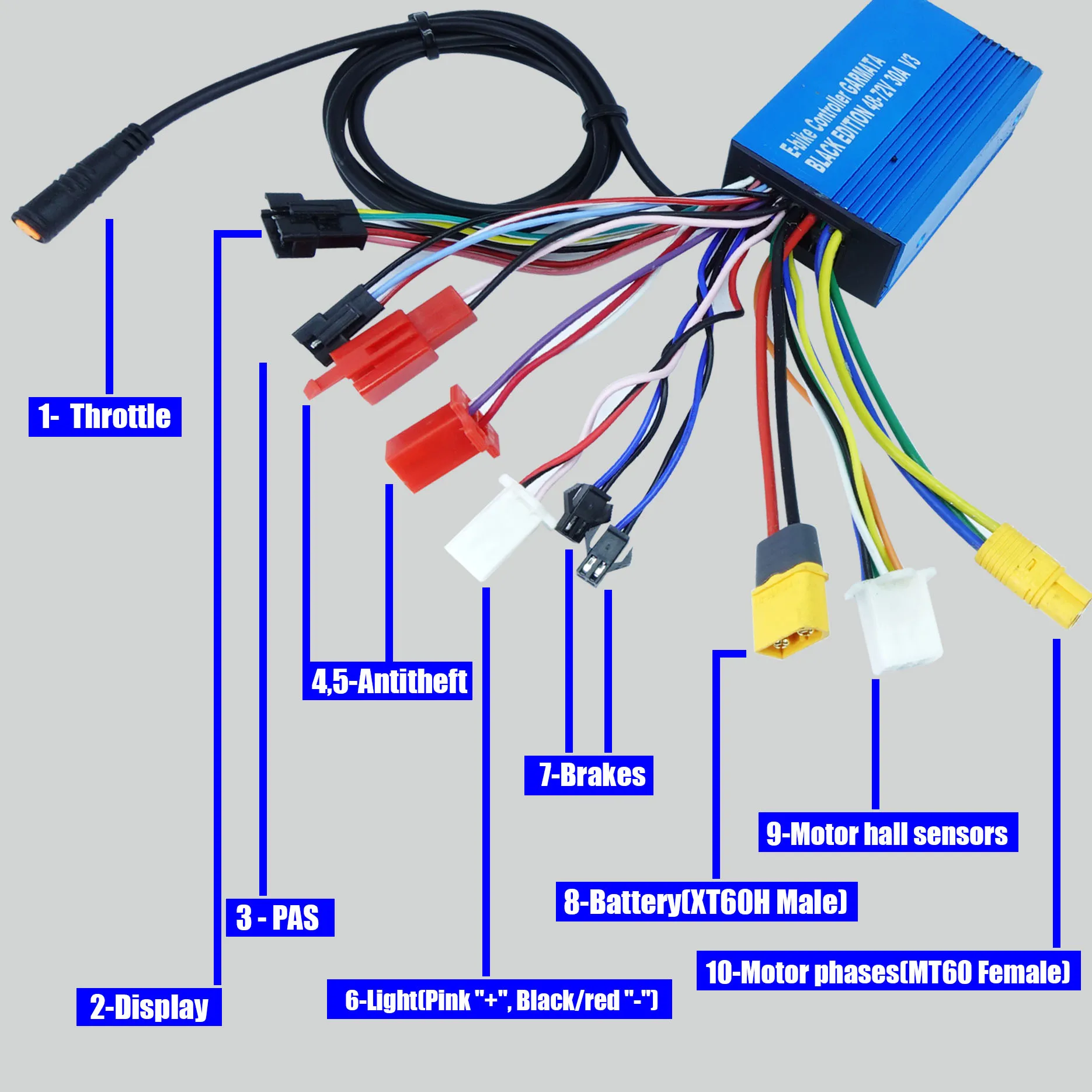

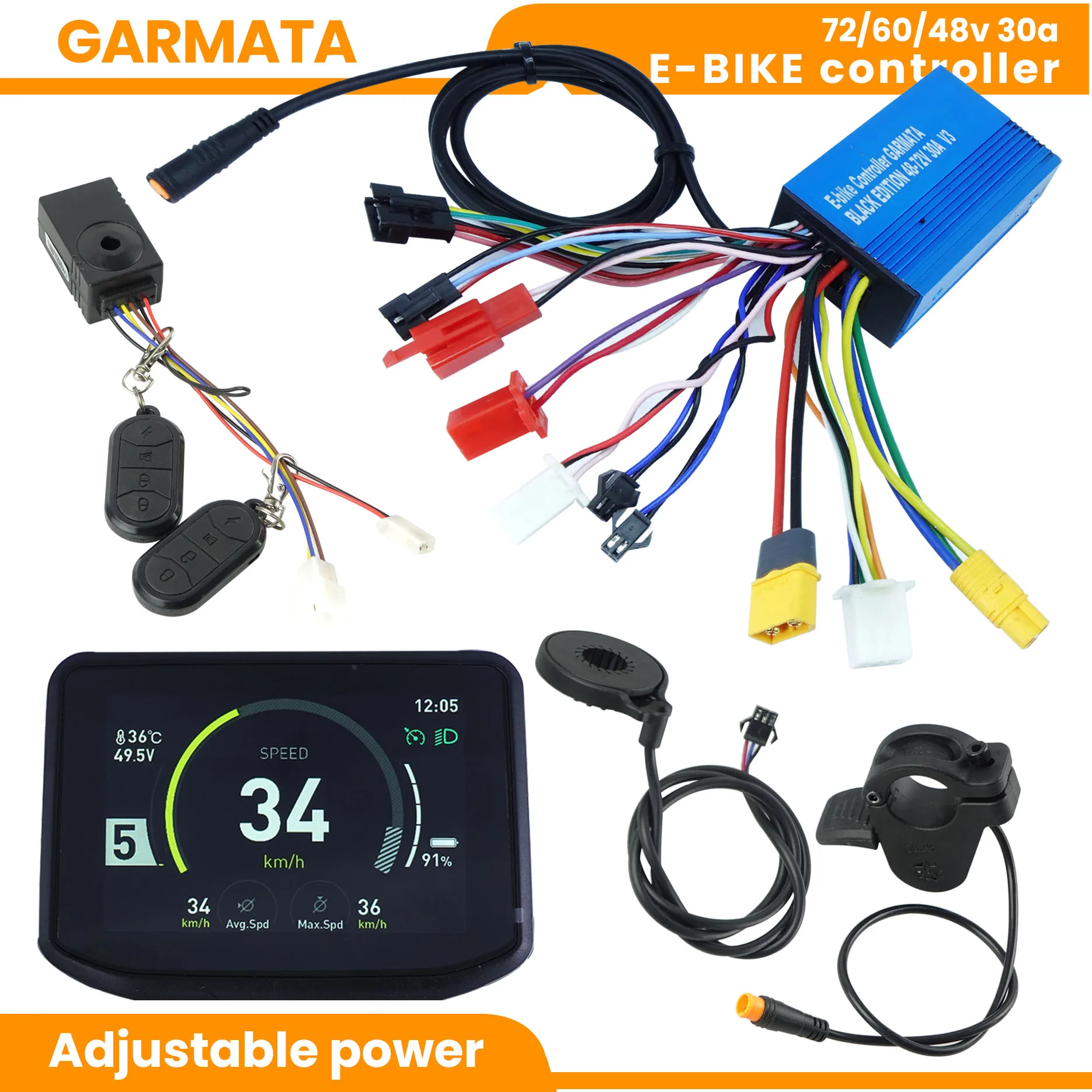

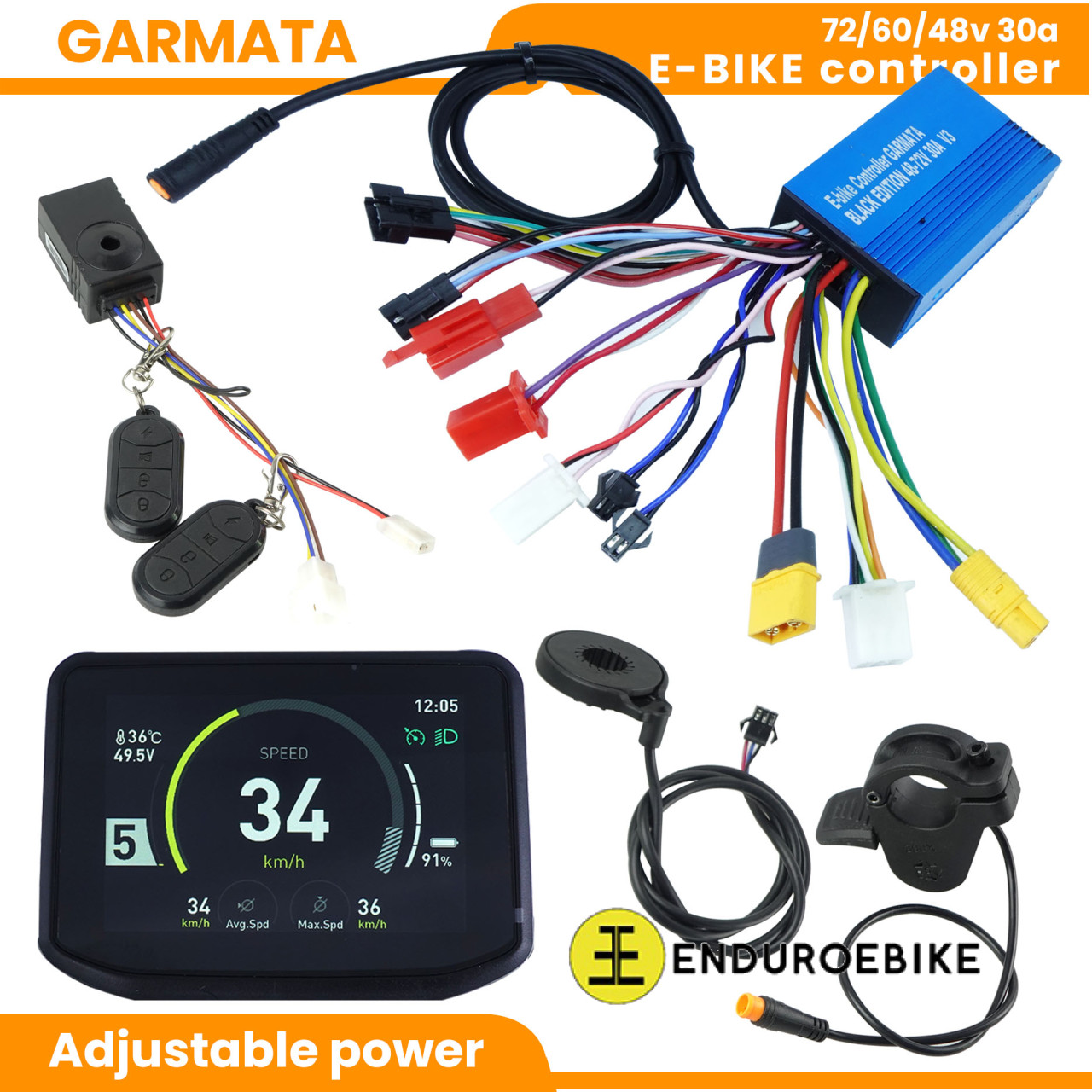

One set include:

1.Controller Garmata

2.Black Edition 48v-72v 30A

3.PAS

4.Color display

5.Anti theft alarm

6.Throttle- thumb style with WP

Attention! for transportation
by air, batteries are removed from the alarm panels. you need to insert them
yourself. battery type - Coin CR2032
