e-bike fork

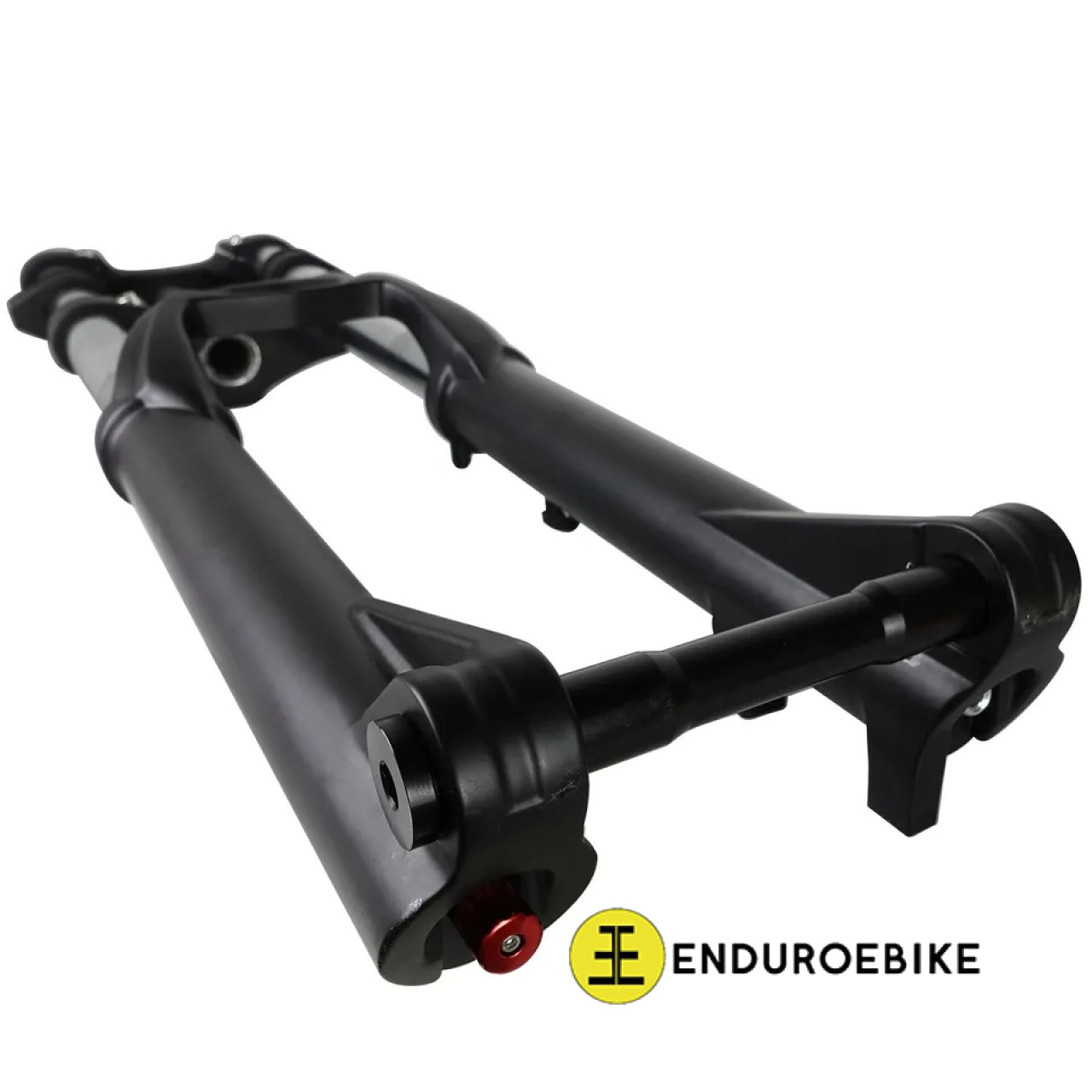

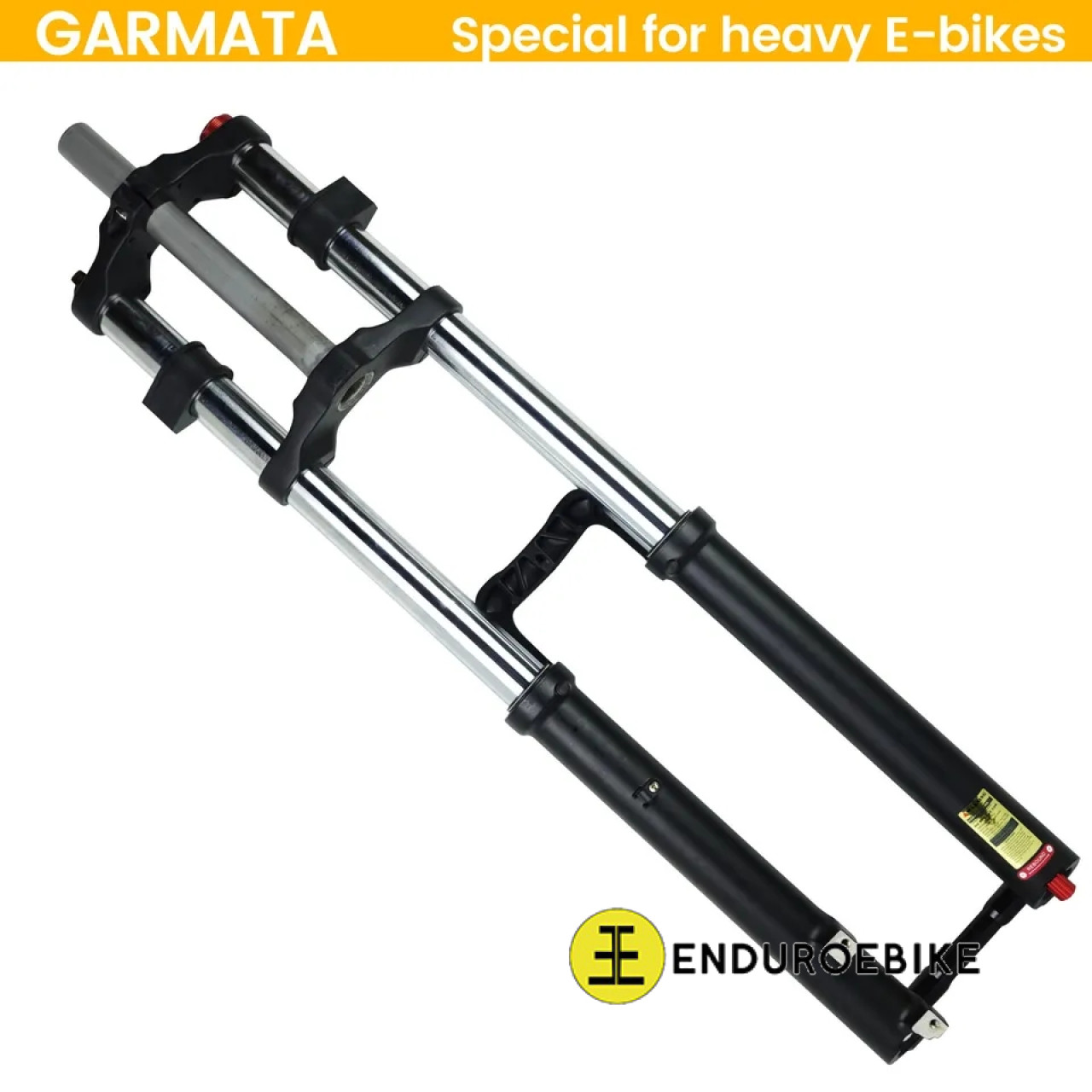

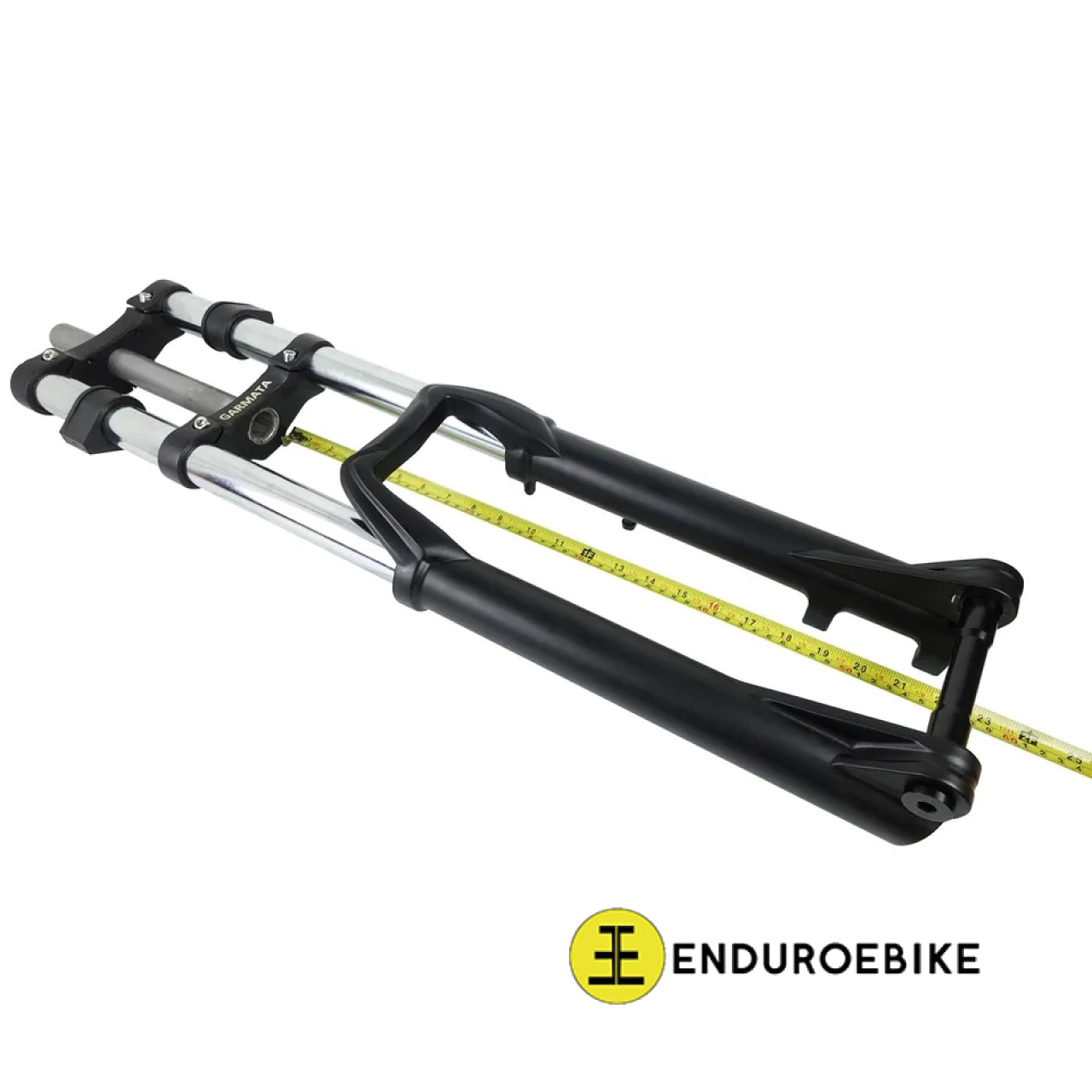

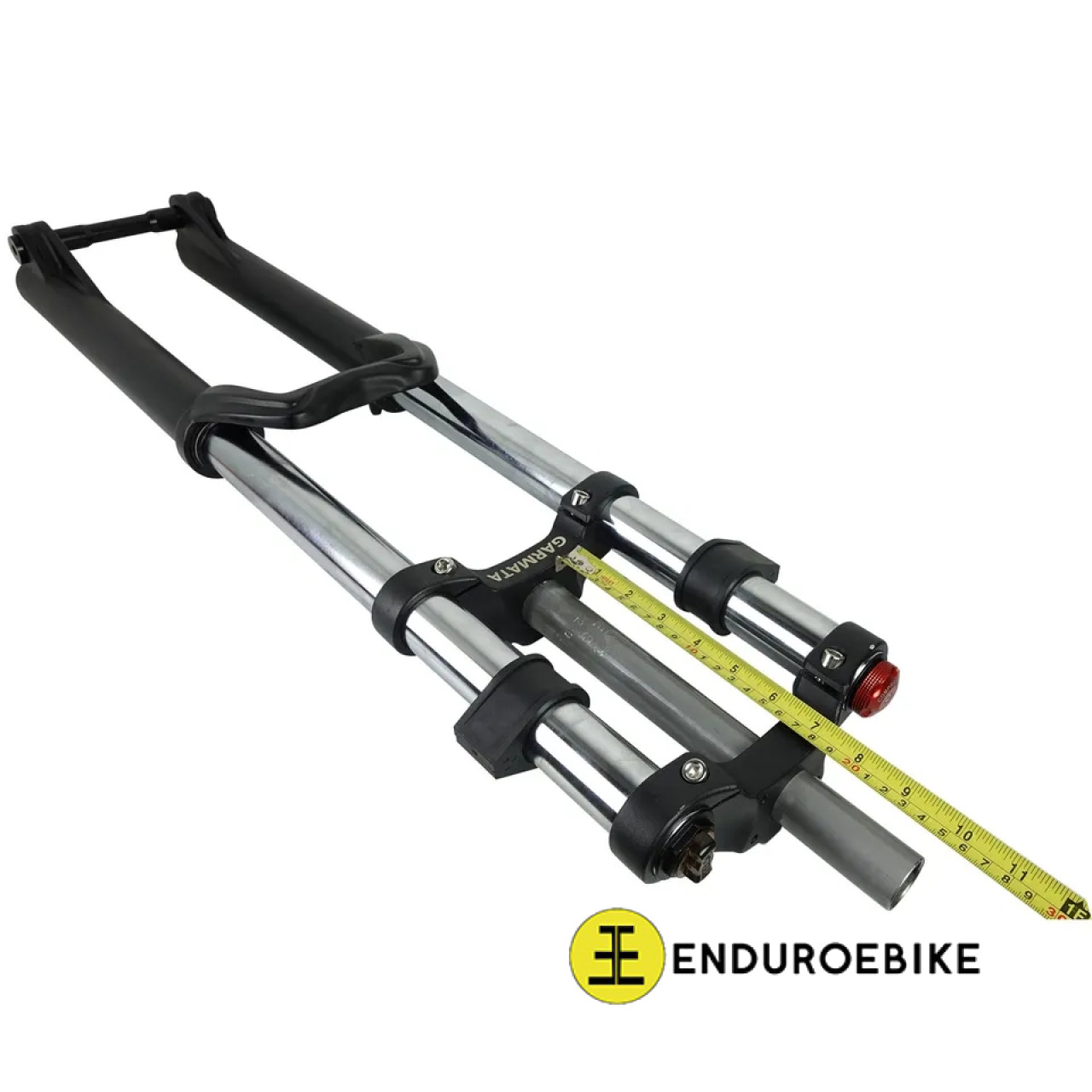

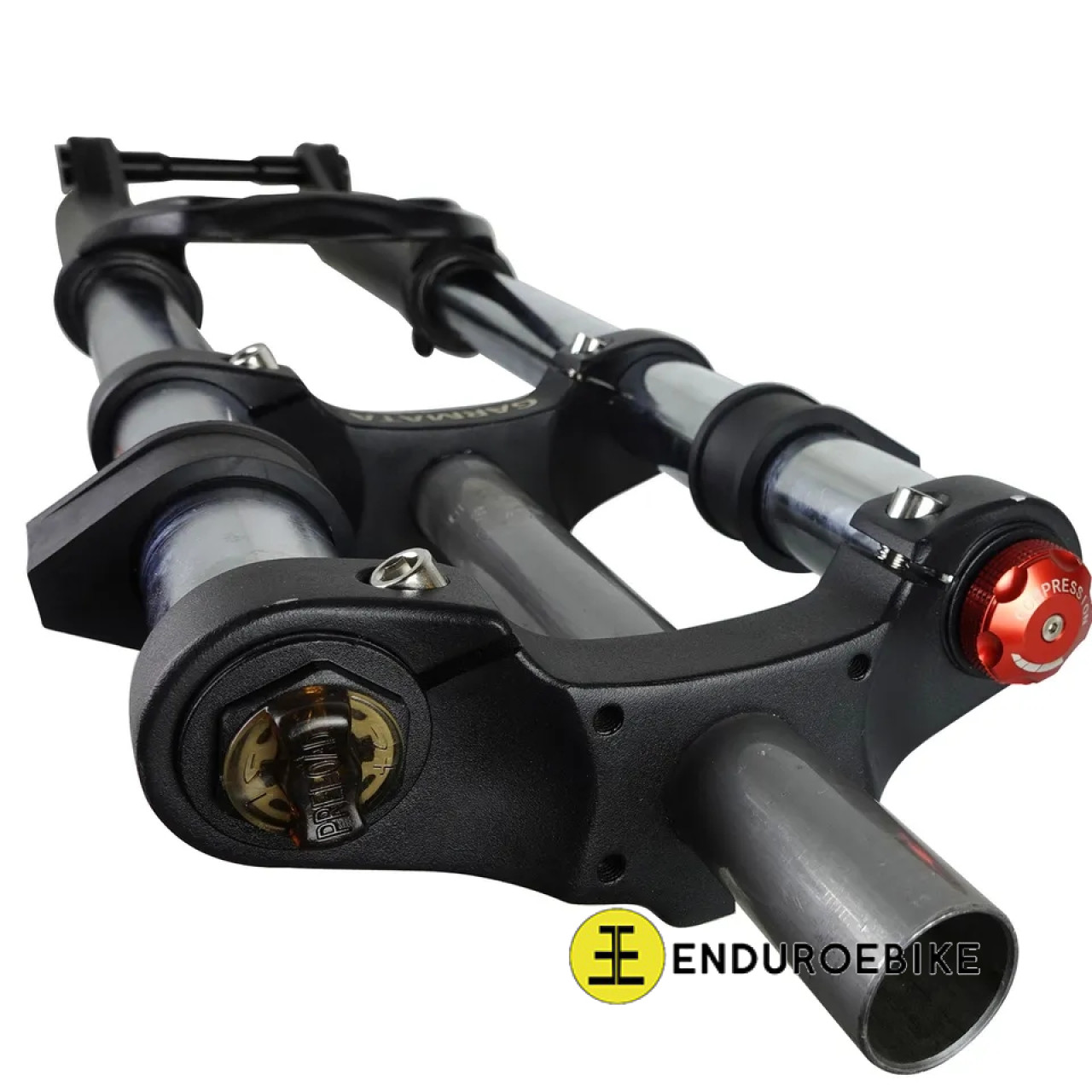

Fork Garmata HD Dual crown

  • Product Code: Garmata HD DC

This fork was specially designed for powerful and heavy e-bikes. Steel fork legs give excellent wear resistance and 36mm diameter for excellent rigidity. Suitable for wheel hubs 110x20mm. Recommended for use on Enduroebikes. Сrowns are specially made with an offset to increase the angle of rotation. It is necessary when using in frames of powerful electric bikes. Top crown can be used with integrated stem.

Stroke- 180mm

Legs-Steel 36mm(specially selected as the most not whimsicalto service and

wear-resistant pipes. unlike coated aluminum)

Spring-Steel(rigid spring with a rod diameter of 4.5mm is used, specially

designed for heavy electric bikes. other double-crown forks on the market

today, when used on a heavy bike, will stick out when braking and do not

provide proper damping)



Wheel size- up to 27,5inch

Tire wide- up to 80mm( not fit with 90/90-19inch tire)

Crown material-AI 6061 ally

Head tube-1.1/8 24cm

Weight- 4,7kg
