1.Specifications: Quick detail for Full Suspension Steel 350w-5000w Electric Enduro Bike Frame
• Material : steel frame and plastic cover which is using high quality strong 4mm ABS+PMMA anti-scratch plastic.
• Warranty : 2 years
• Rear shock : 190-240mm are suitable
• Seat post (31.6mm) , seat clamp included
• Motor : 1000w-5000w are suitable
• Rear fork drop out : 135-155mm

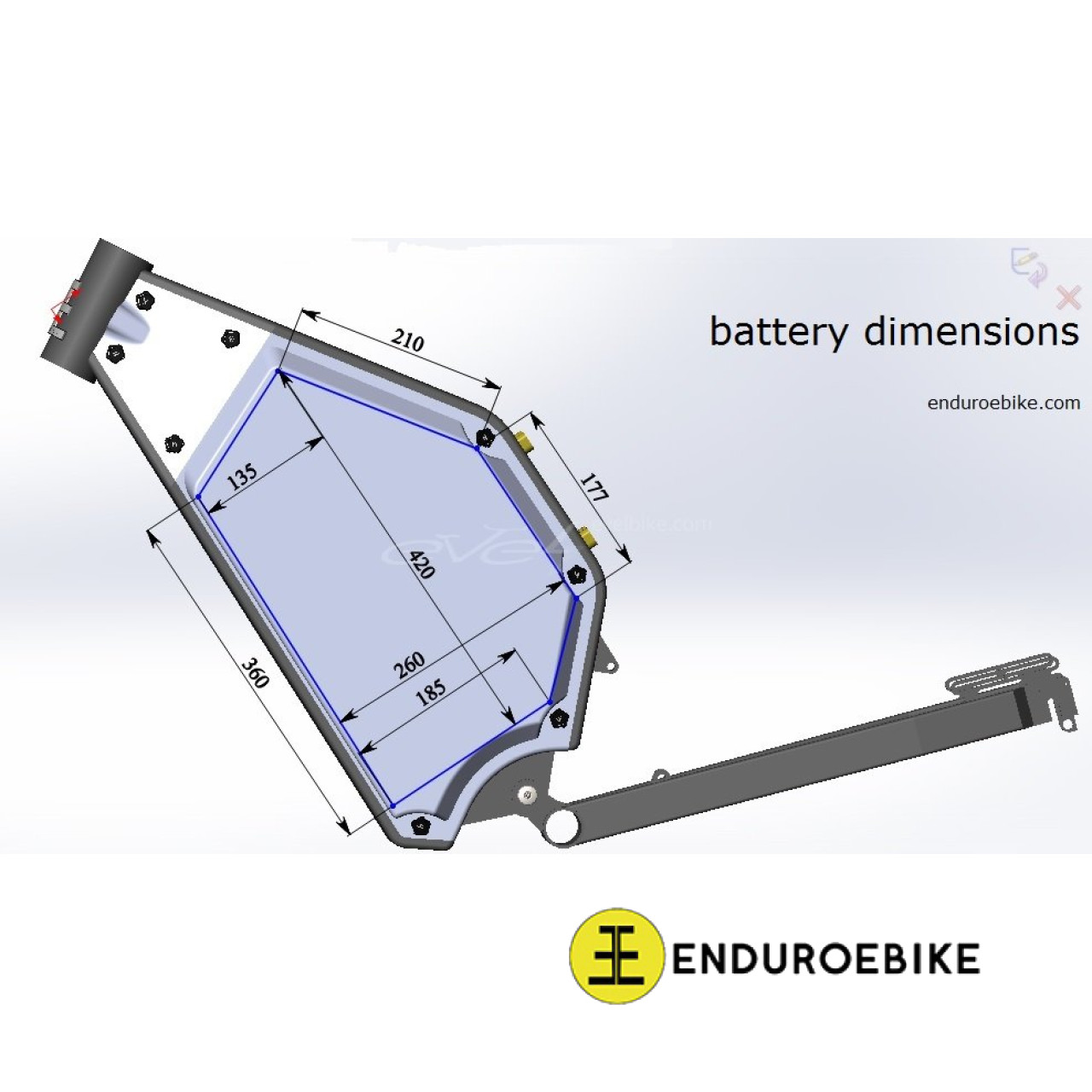

• Battery : suitable 20-100ah lithium battery
• Color: black or white
2.Description for Full Suspension Steel 350w-5000w Electric Enduro Bike Frame:

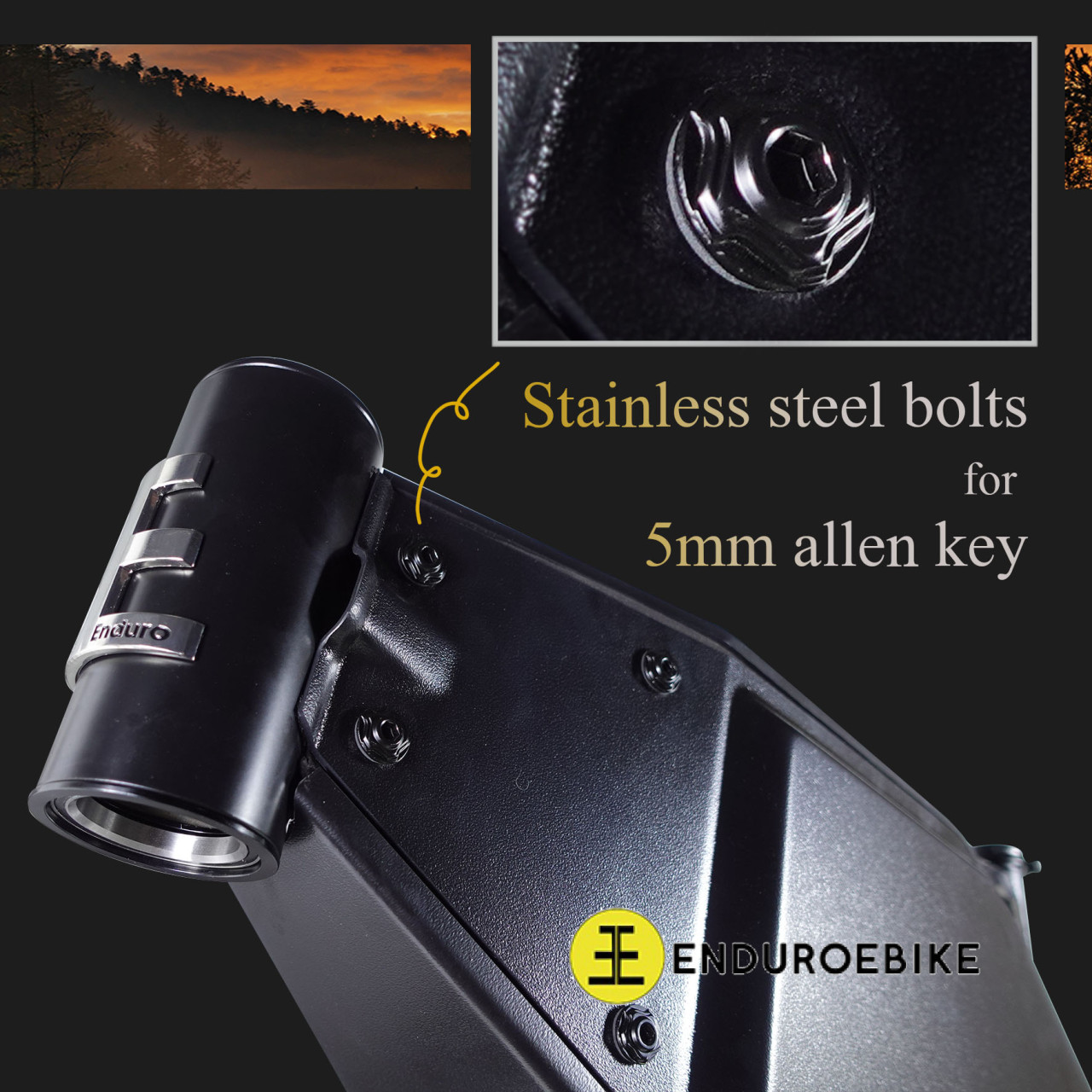

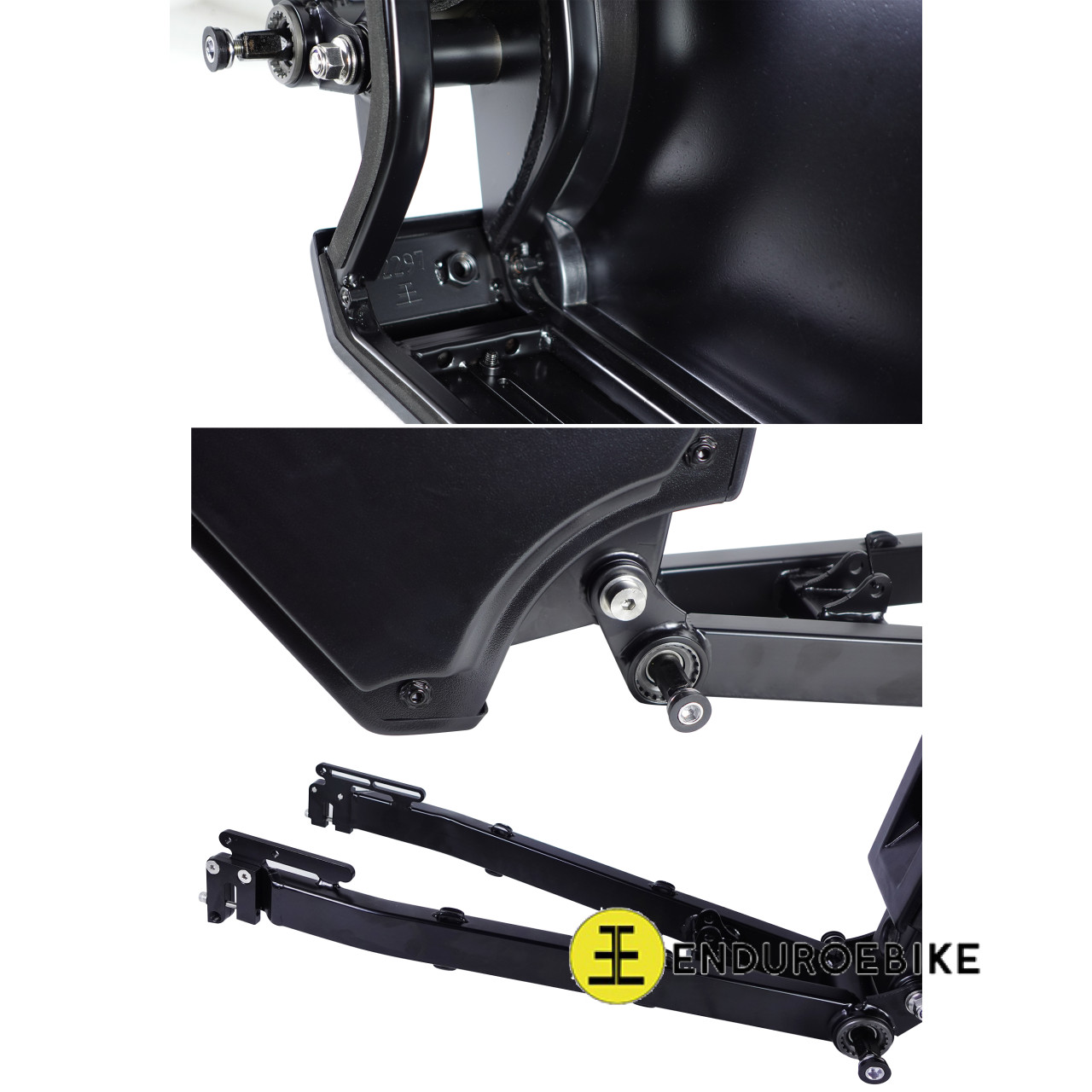

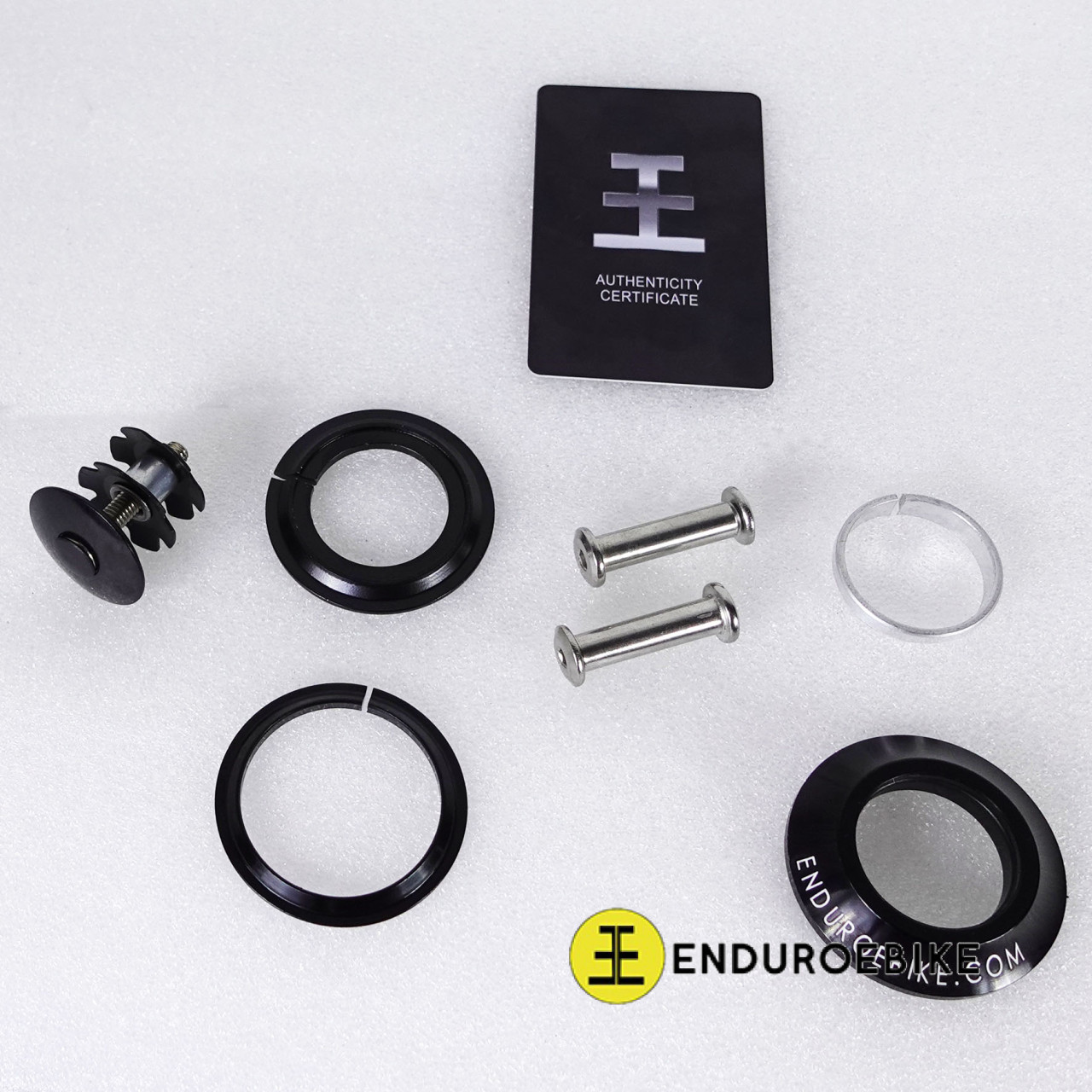

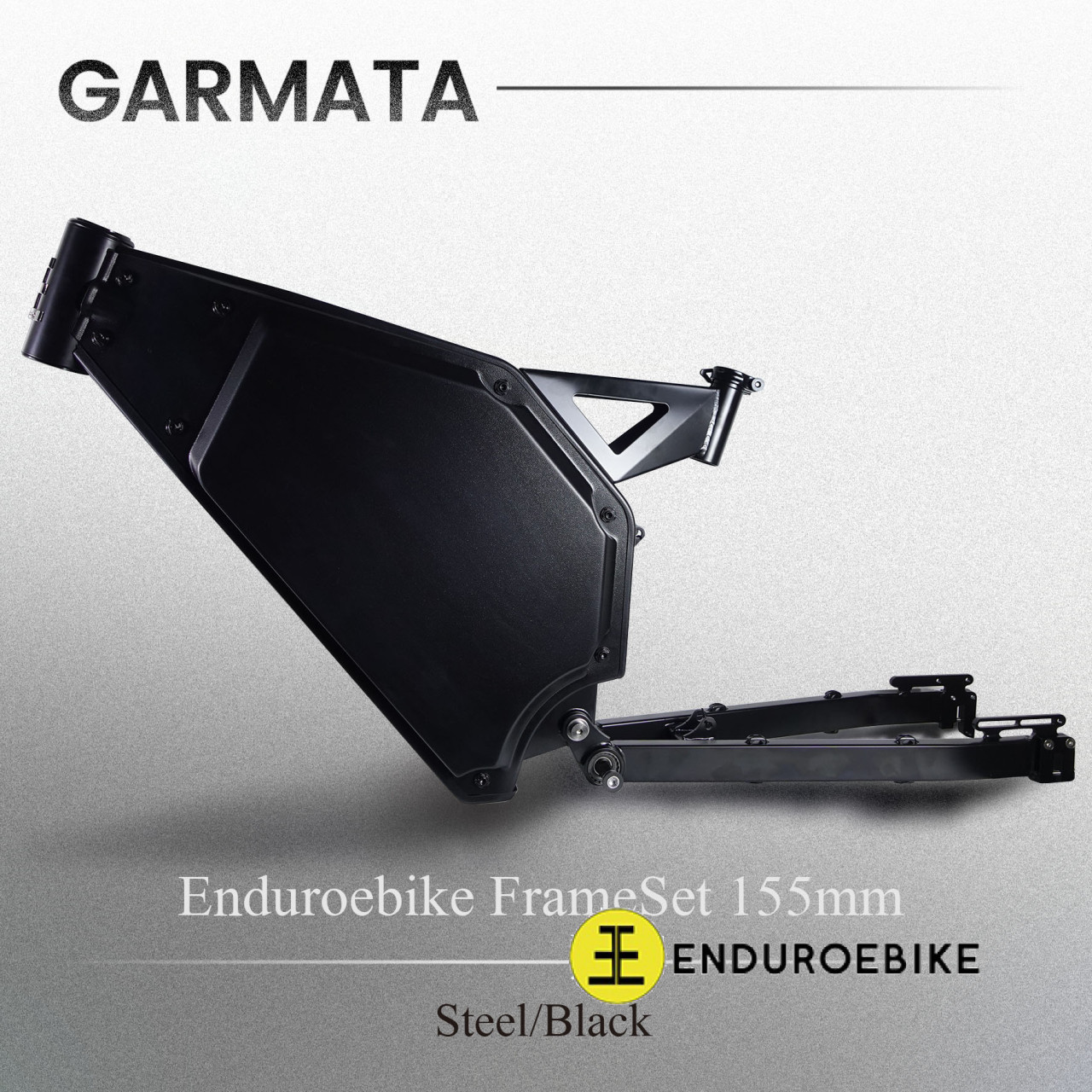

It is included the Frame body, swingarm, torque arms, headset bearings, top and down side plastic covers, bolts and washers for assembling, bottom Bracket and bracket for seat post (31.6mm ).
Material : steel frame and plastic cover which is using high quality strong 3mm ABS+PMMA anti-scratch plastic. Matt finish surface.
Rear shock : 190mm-240mm are suitable.
Head tube for 1.1/8-inch straight or 1.1/8-1.5 tapered steering tube, 130 mm in length.

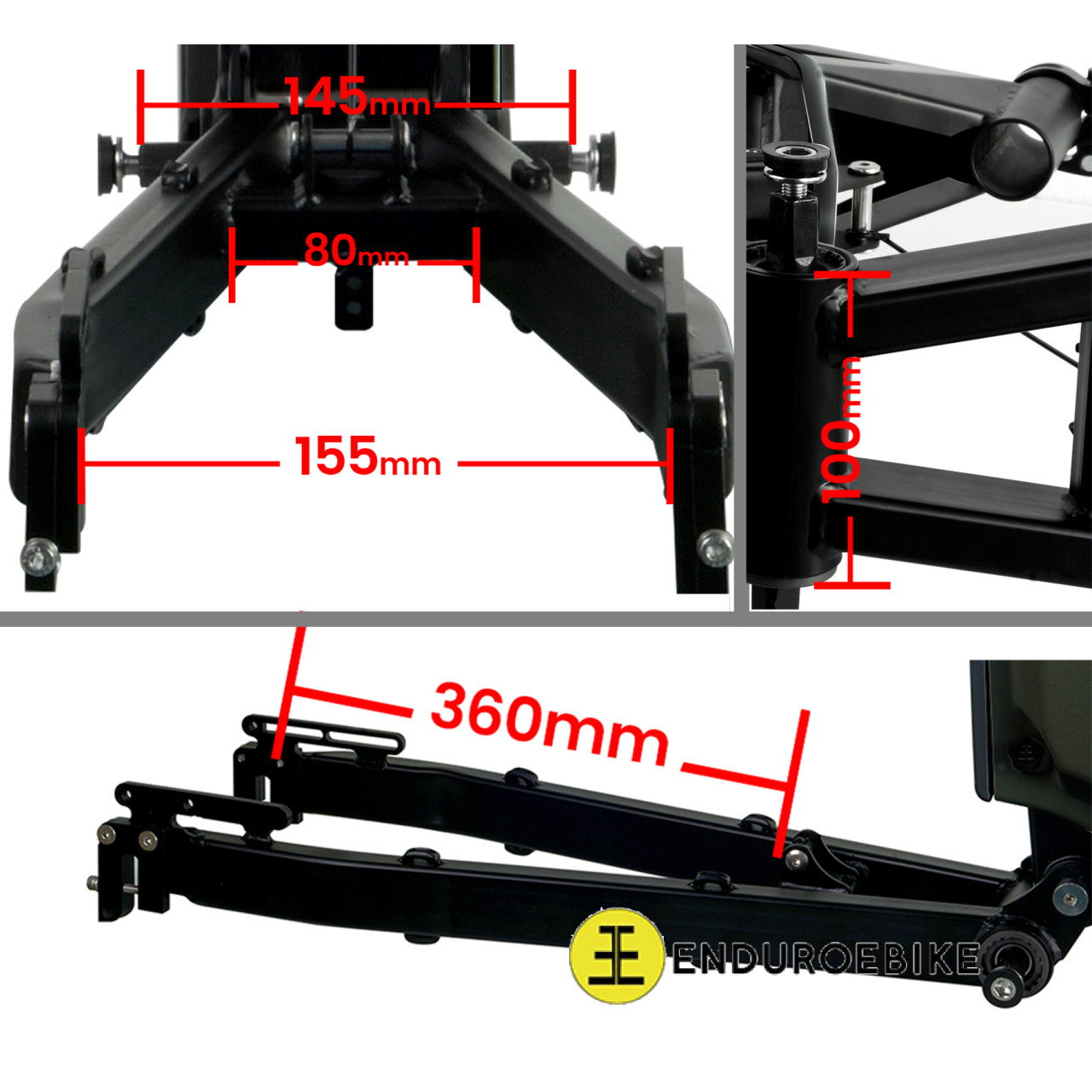

Bottom bracket – square taper (the bottom bracket with sealed bearings is included in the frame delivery package). Dropout width (motor mounting seat in the swingarm) 155x10 mm and 135x10mm (you can change by yourself)
Standard derailleur mounting (derailleur hanger), included in the delivery package.
Wheel size: 26" bicycle front wheel with 26" rear motor wheel, 24" front wheel and 24" rear motor wheel, 19" motorcycle front wheel with 17" or 18" motorcycle motor wheel .
