- Brand: EEB
- Product Code: EEB48-64v23a

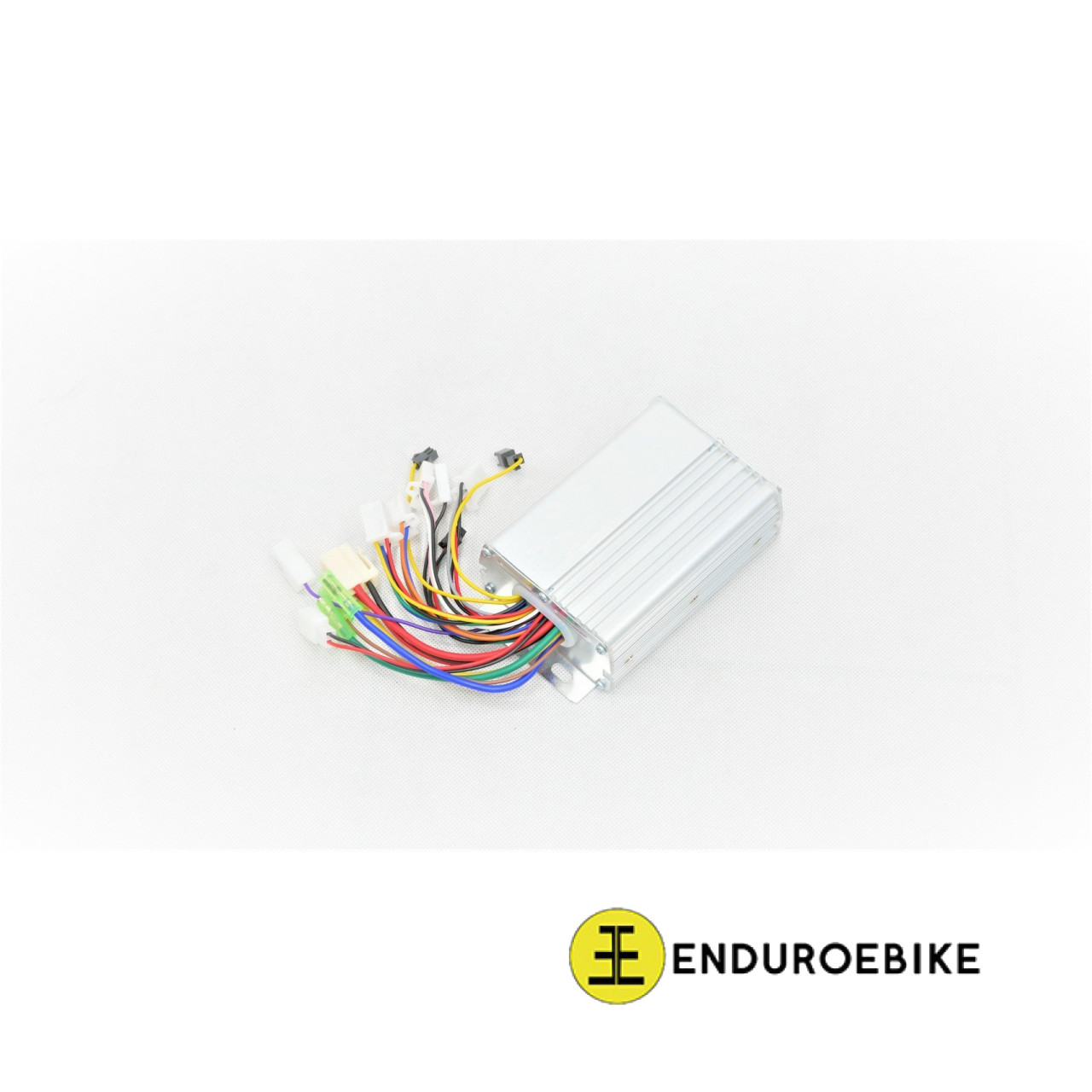

Controller for 500-1000W motor.
Voltage 48-64V
Rated current 18A
Max current 23A
Transistors: 9pcs
Size: 150x90x45mm, dimensions shown with mounting hinges.
Inexpensive, but functional and high-quality controller for a light electric bike.
It is not recommended for those who are not versed in technology, as You will need to pick up the handles, buttons and connectors yourself.
The controller supports sensorless mode, 3 modes of speed 50/100/110%, cruise control on the board, connecting an alarm with anti-theft, learning the direction of rotation and supply voltage (64V or 48V).
Only the controller itself is included in the package.
Additionally, you need a throttle, buttons and connectors.
