USA free shipping by sea(30-50days) door to door including taxes, 60% assembled (assembled wheels, frame, battery, fork and parts in different boxes)
EU free shipping by train(30-50days) door to door including taxes, 60% assembled (assembled wheels, frame, battery, fork and parts in different boxes)
Canada free shipping by sea(30-50days) door to door including taxes, 60% assembled (assembled wheels, frame, battery, fork and parts in different boxes)
Australia free shipping by sea(30-50days) door to door including taxes, 60% assembled (assembled wheels, frame, battery, fork and parts in different boxes)
We accept ApplePay, GooglePay, Credit card or Swift transfer to our company's bank account.

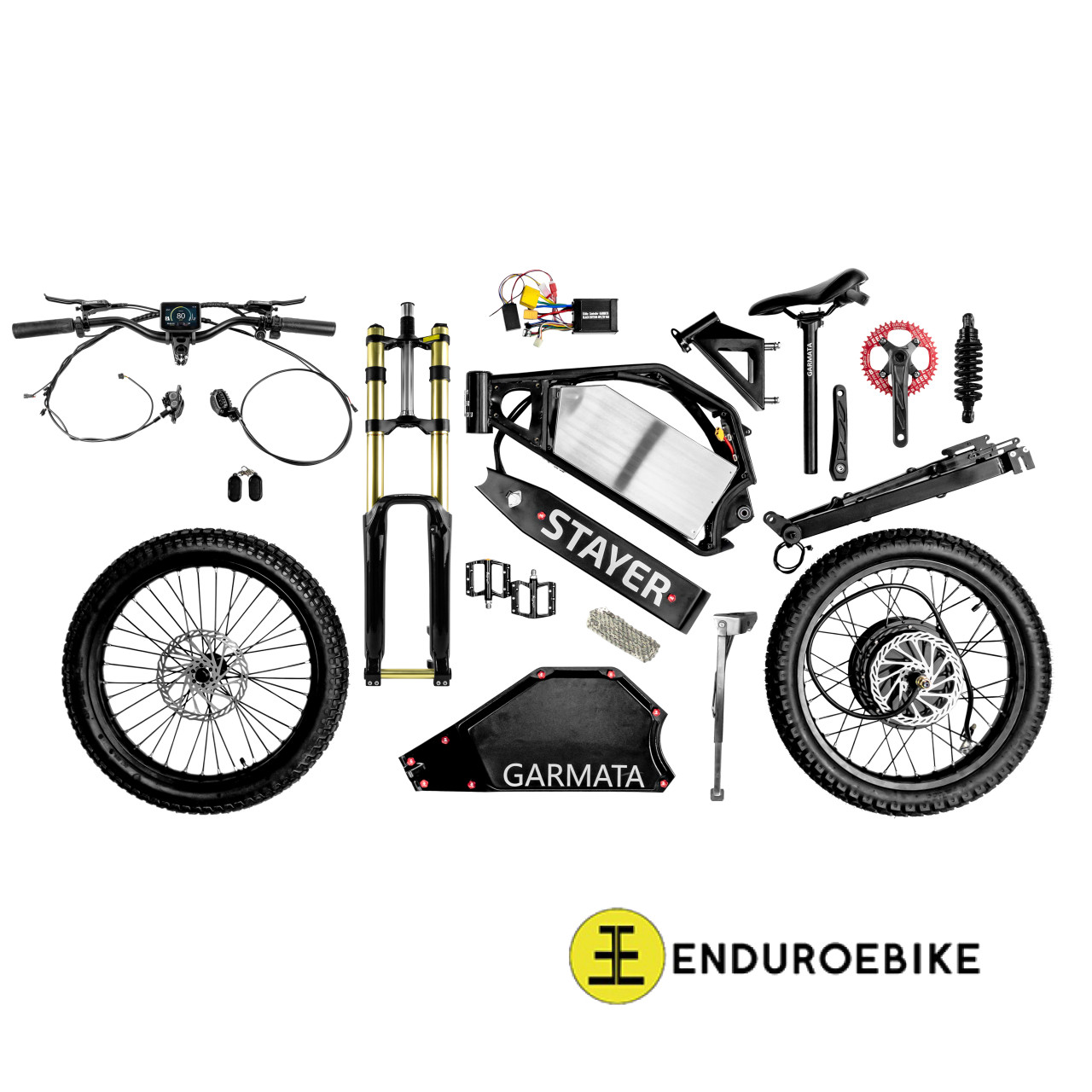

The Garmata Stayer Electric Bike Assembly Kit is a product for professional use. You cannot use it unless you are a mechanic and have the skills to assemble and tune a powerful e-bike. The kit includes tools and all parts for assembly, but we do not provide detailed instructions for fine-tuning all assemblies after assembly. After receiving this product, you will need to assemble the electric bike yourself or in a specialized workshop. Unfortunately, we do not have enough consultants to quickly help you if necessary. We do not accept claims related to the process of final assembly of the electric bike. For this reason, we do not accept paypal for this product. Payment can only be done by ApplePay, GooglePay, credit card or Swift transfer to our company's bank account.
This item is shipped semi-assembled. We are forced to send the bike in this condition in order to avoid special requirements for the transport of oversized cargo, dangerous goods, and vehicle certification. We do not provide certification for this product, you buy a kit of parts, a DIY kit. The item is heavy and contains a lithium battery. Therefore, we cannot use the quick way to ship by plane. The average delivery time is 40-50 days.
Hope for your understanding.

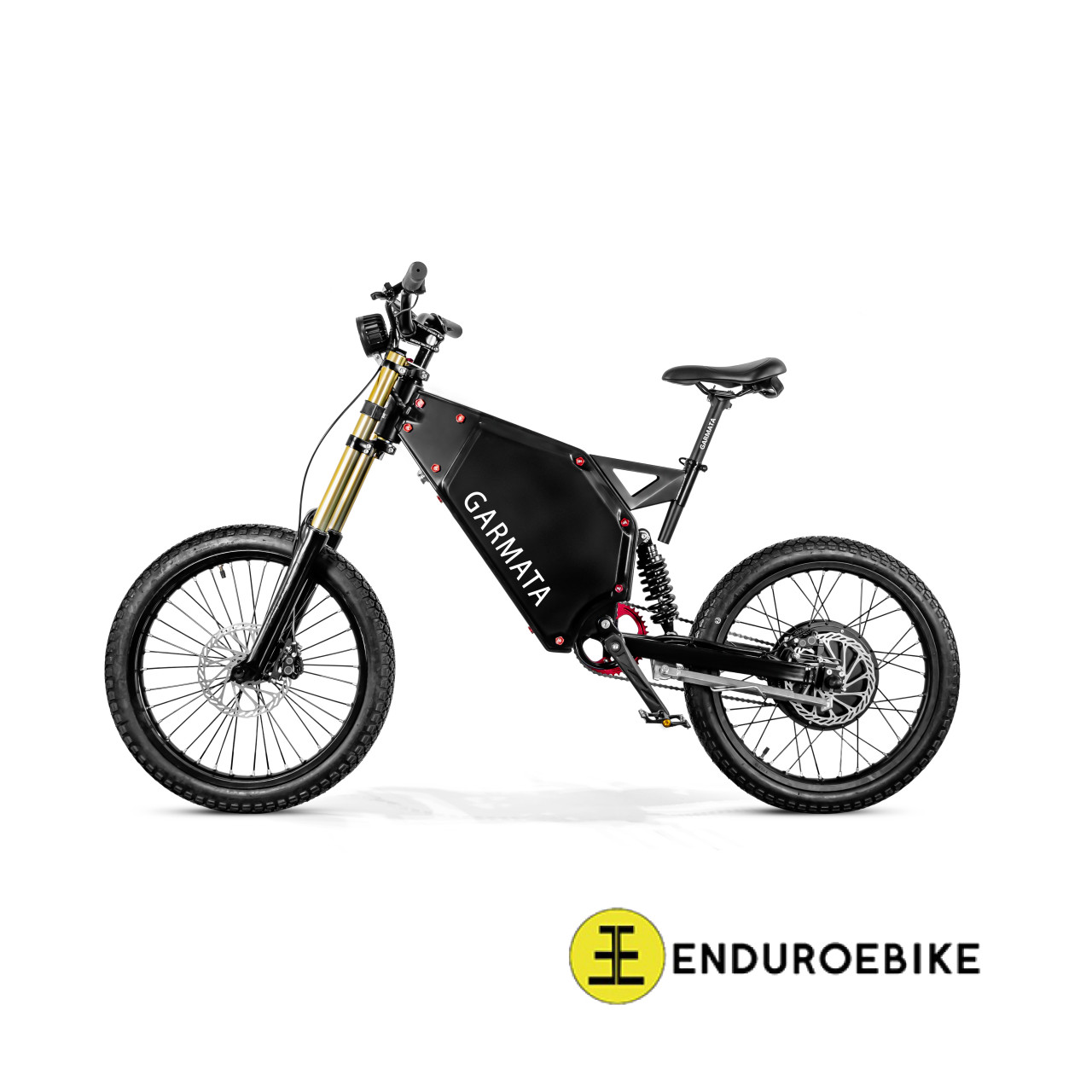

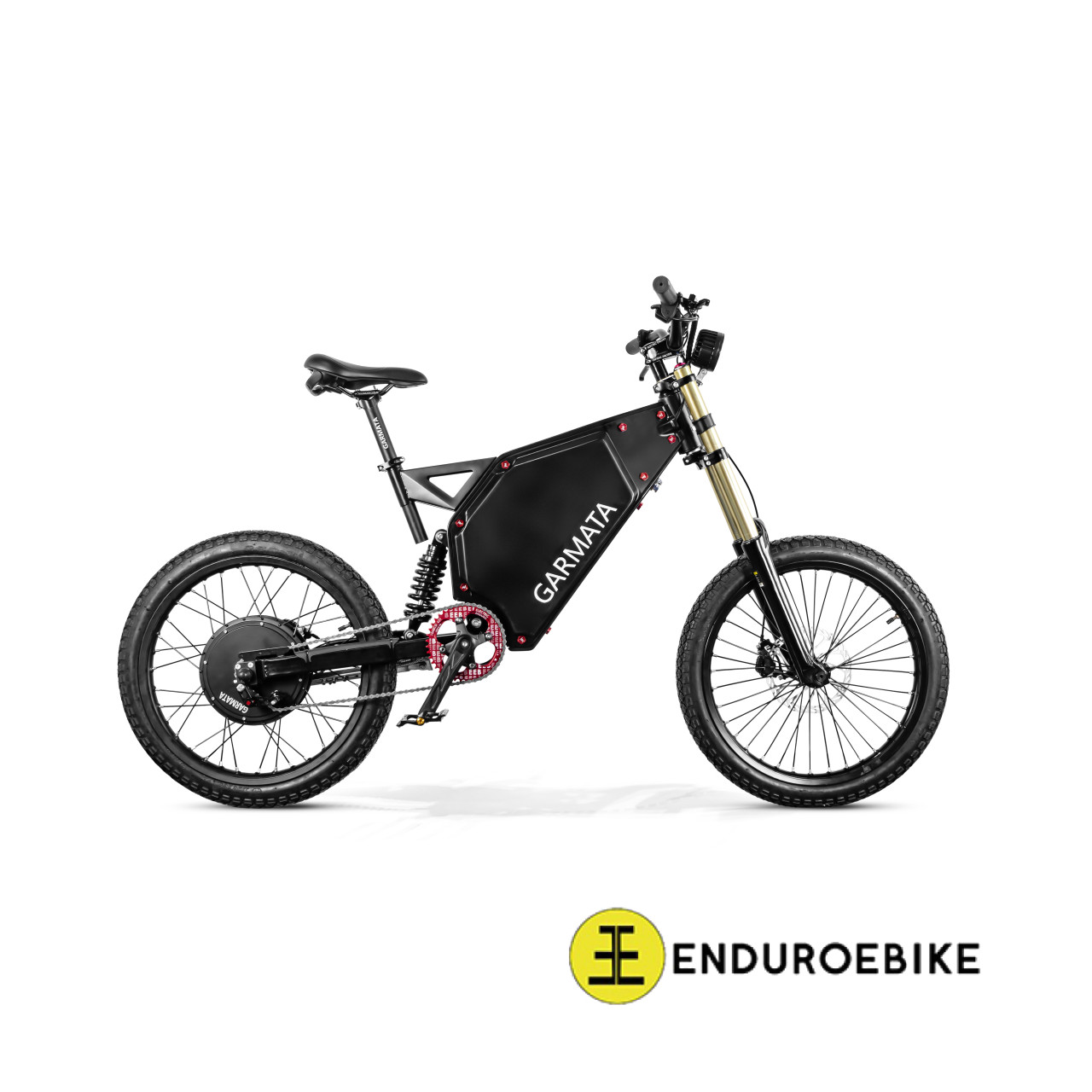

Electric bicycle GARMATA Stayer is a comfortable long-distance runner.
This is an electric bicycle, which will easily take you from the point A to the point B regardless of the presence of roads, time of day and weather.
The average single charge range of the battery Panasonic 3,5kWh 72v49Ah is up to 200 km. For most people, it is the distance exceeding which it is already uncomfortable to stay in the saddle of a bicycle. But if you like to travel - you can ride even 300km on single charge if you choose 5kWh battery option.
And while you relax – charge it using an ordinary 110V or 220V socket, and it is once again ready to take you anywhere, without the cost of fuel, oil, plugs, filter. Enjoy the sounds and aromas of nature during the trip without the noise of combustion engine and smell of exhaust fumes. You can keep your private vehicle directly at home, as there will be no oil dripping or gasoline evaporation, because it uses no oil or gasoline at all!
Smooth pedal assist system allows you to pedal when you want it, and if not - just push the throttle and listen to the noise of opposing wind. Pedals play a secondary role - to save electric power at the start, on heavy grades, as well as for emergency ride home - to reach the socket.
The concept of electric bicycle is long range, comfort, simplicity and reliability. In order to achieve this goal we used strong moto rims, brushless motor, hydraulic brakes and Panasonic battery. That is the case when one can say - nothing can break down here.
Maximum motor power: 5 kW (7 HP)
Maximum speed: 75km/h
Average mileage on a single charge without pedaling: 200-300km
Battery life: more than 3 years

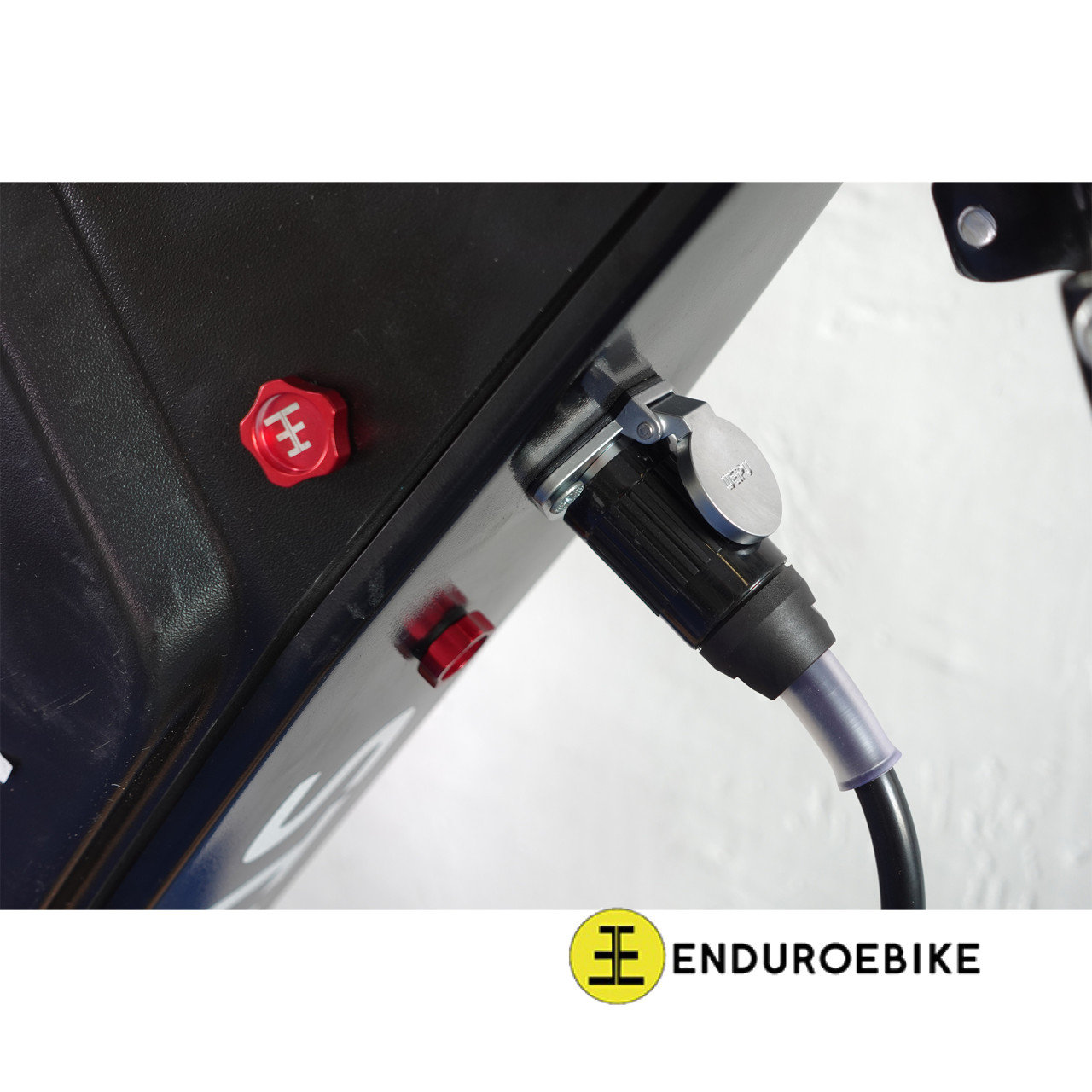

Full charge time: 2.5 hours (using 220V or 110V )
Gearless hub-motor, rated power: 3000W
Battery: 3.5kWh Panasonic GA 72v49ah (200km range) or 5kWh Panasonic GA 72v70ah (300km range, +USD700)

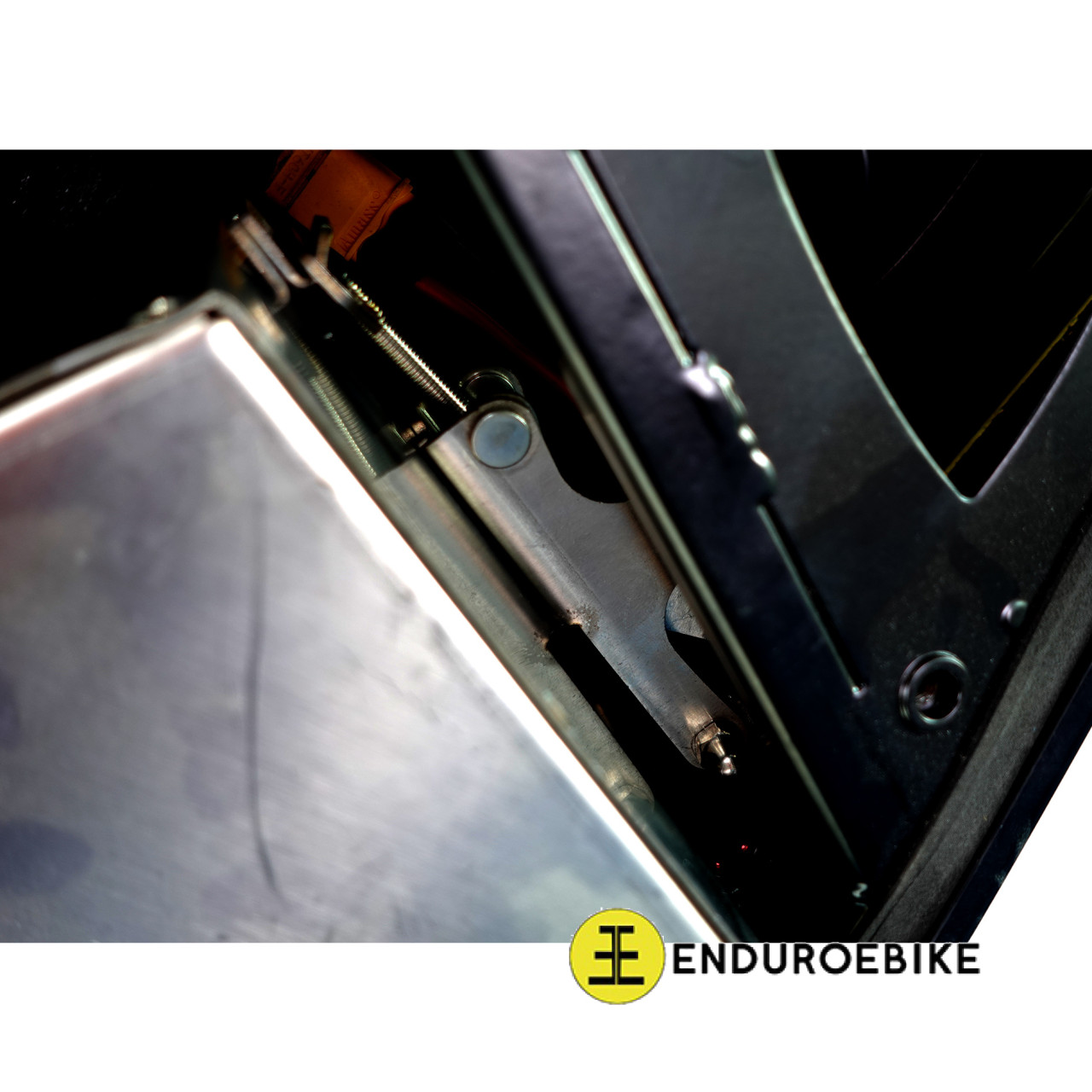

Battery case: Stainless steel with QR bracket

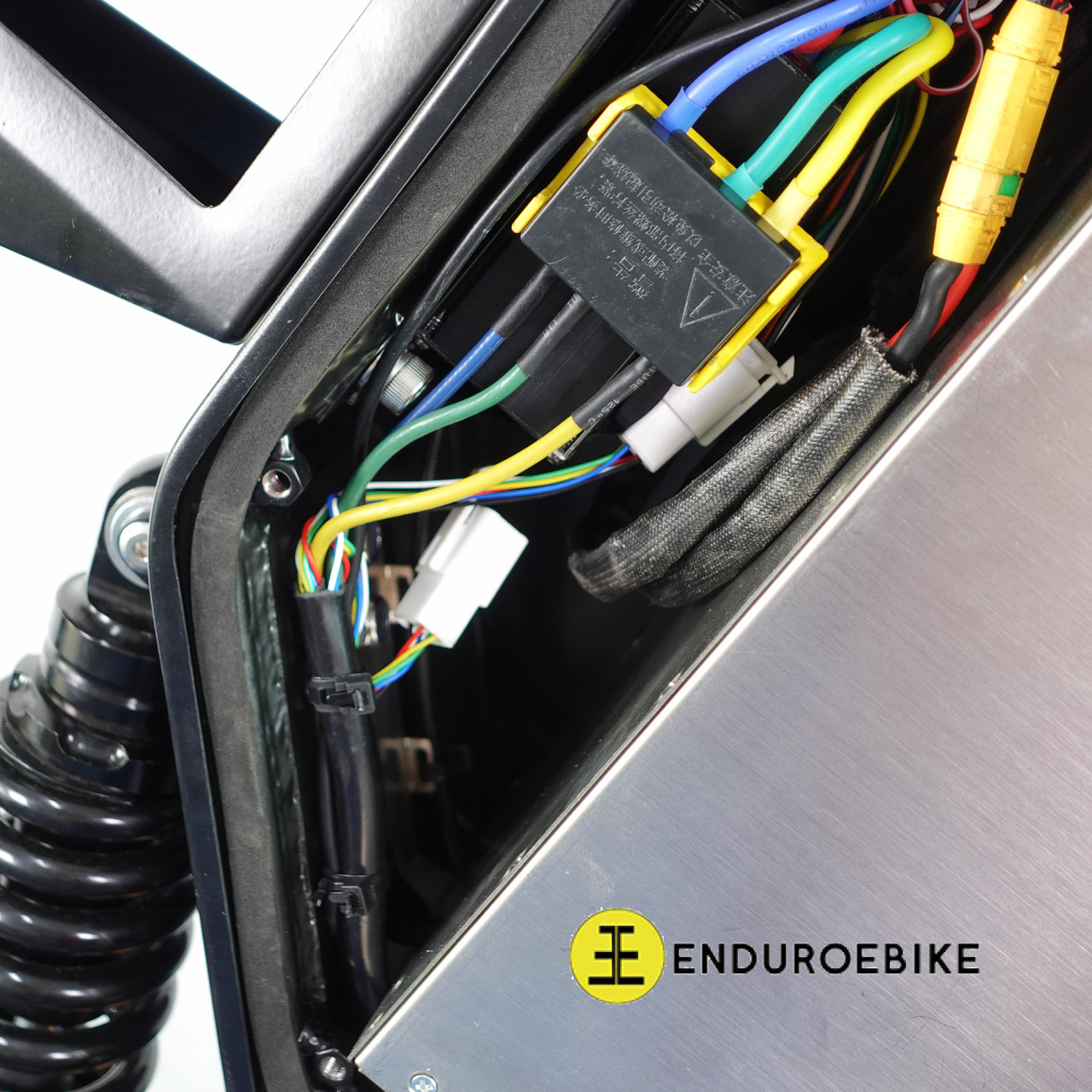

Controller: Sine wave Garmata Black Edition V1 72v65А

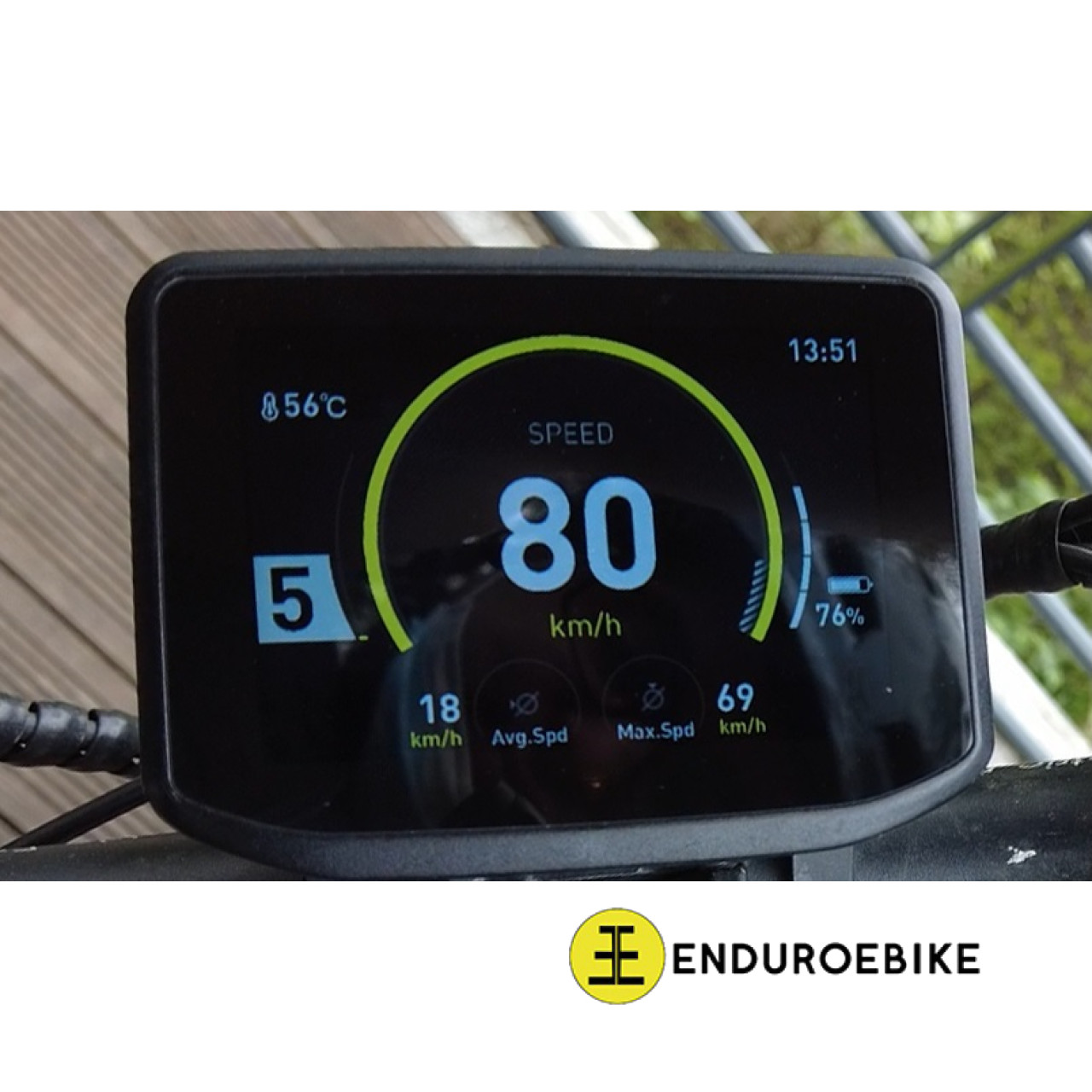

On-board computer: Color LCD with USB and light sensor
Throttle: QR Thumb style
Frame: Electric Enduro Bike
Fork: Zoom 650DH AMS 130mm travel with hydraulic cartridge

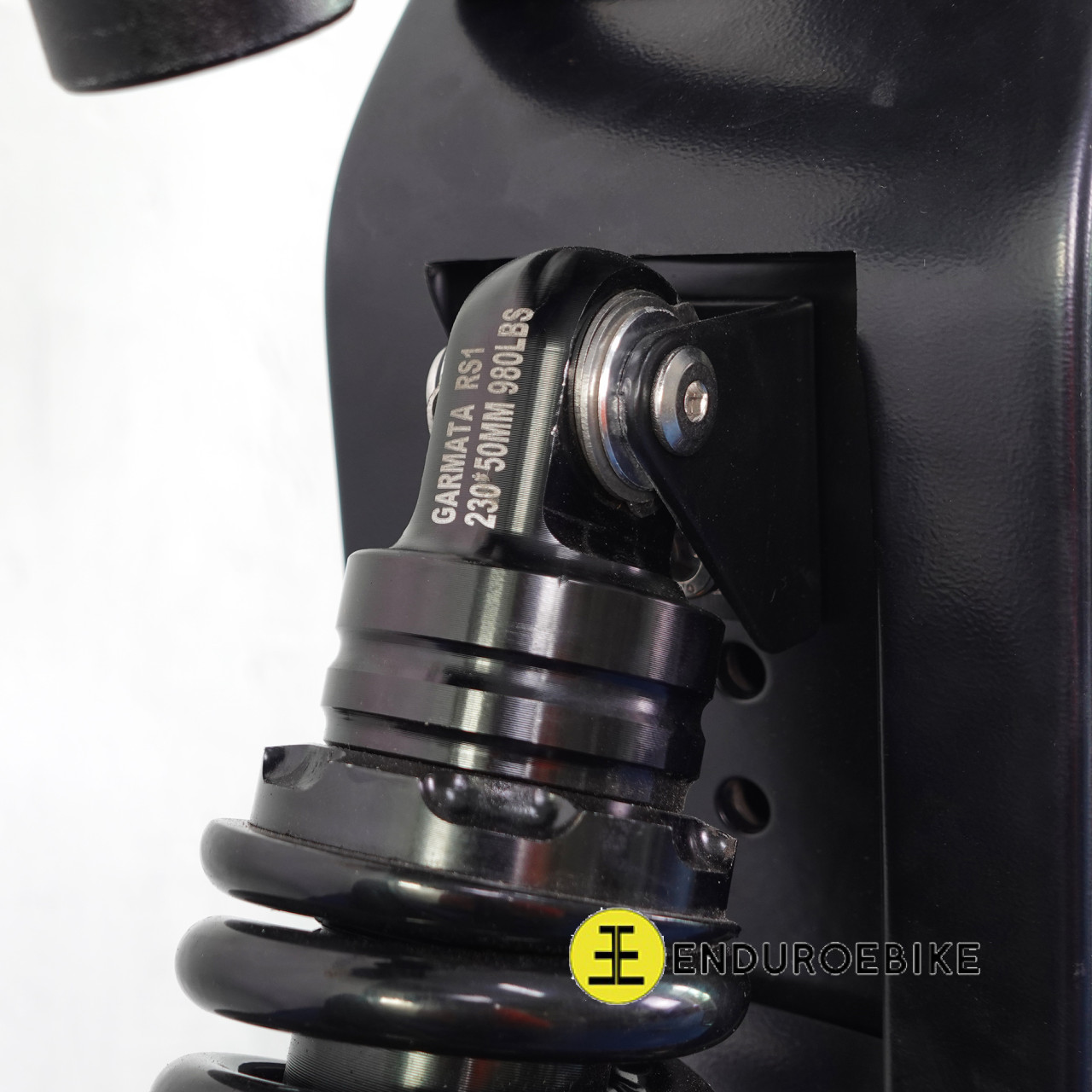

Shock absorber: Garmata RS1 230mm 980LBS
Wheels: 55mm 19x1.6 inch rim + 19*2.5 inch tyre

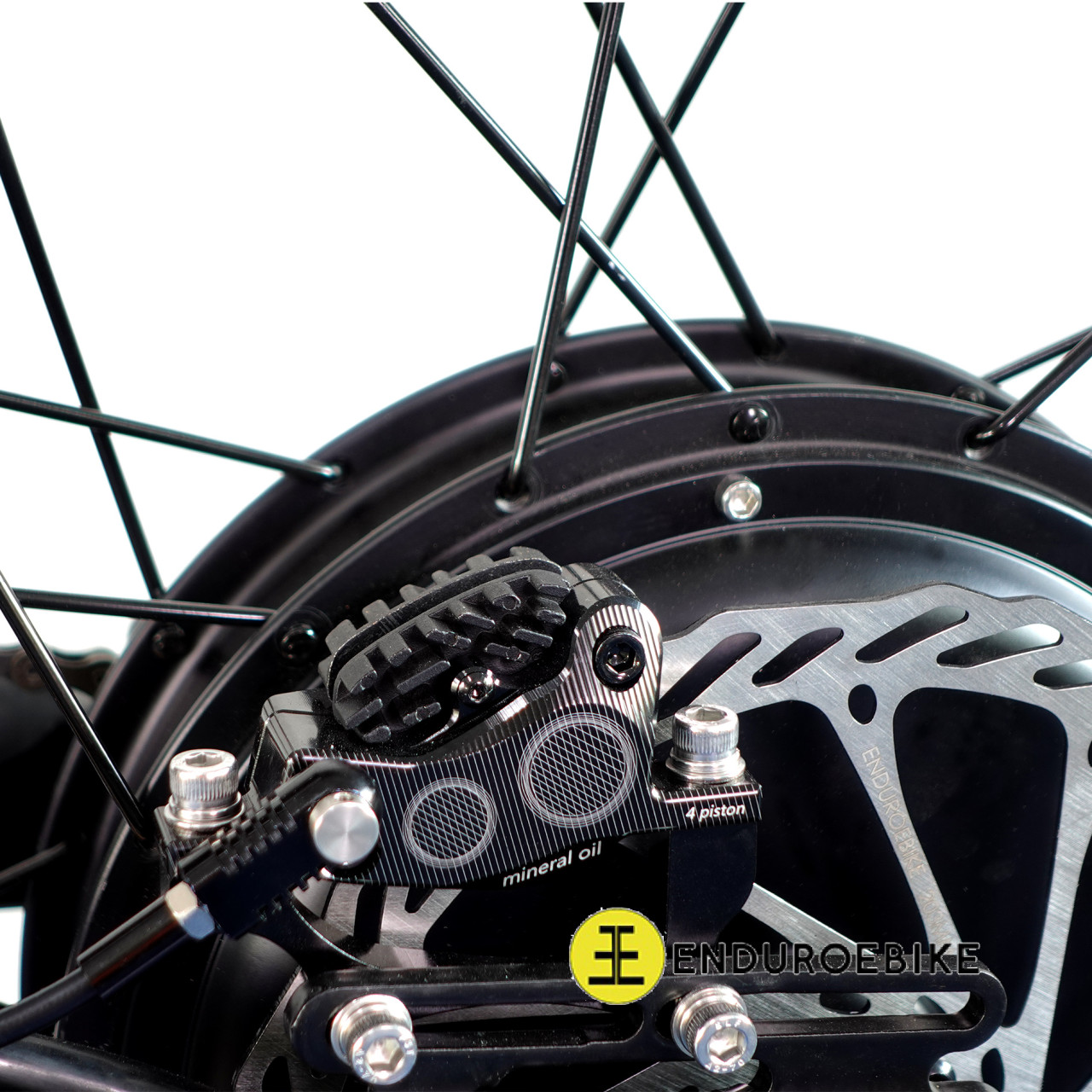

Brakes: Hydraulic Garmata 4 piston 203mm + regen brake
Handle bar: Electric Enduro Riser Bar 700 mm
Seatpost: Electric Enduro forged
Transmission: 1sp 42t x 16t + 5 smart electric gears
Chain wheel: 42t Narrow Wide (special tooth contour eliminates chain falling)
Pedals: CNC anodised with sealed bearings
Saddle: bicycle type with handle
Front light: LED 20w with DRL
Wheel base: 1270 mm
Overall length: 1930 mm
Handle bar height: 1050 mm
Handle bar width: 720 mm
Saddle height in its lowest position: 800 mm
