We can make windings, logo, and connectors according to customer requirements. The minimum quantity with the required parameters is 20 pcs.

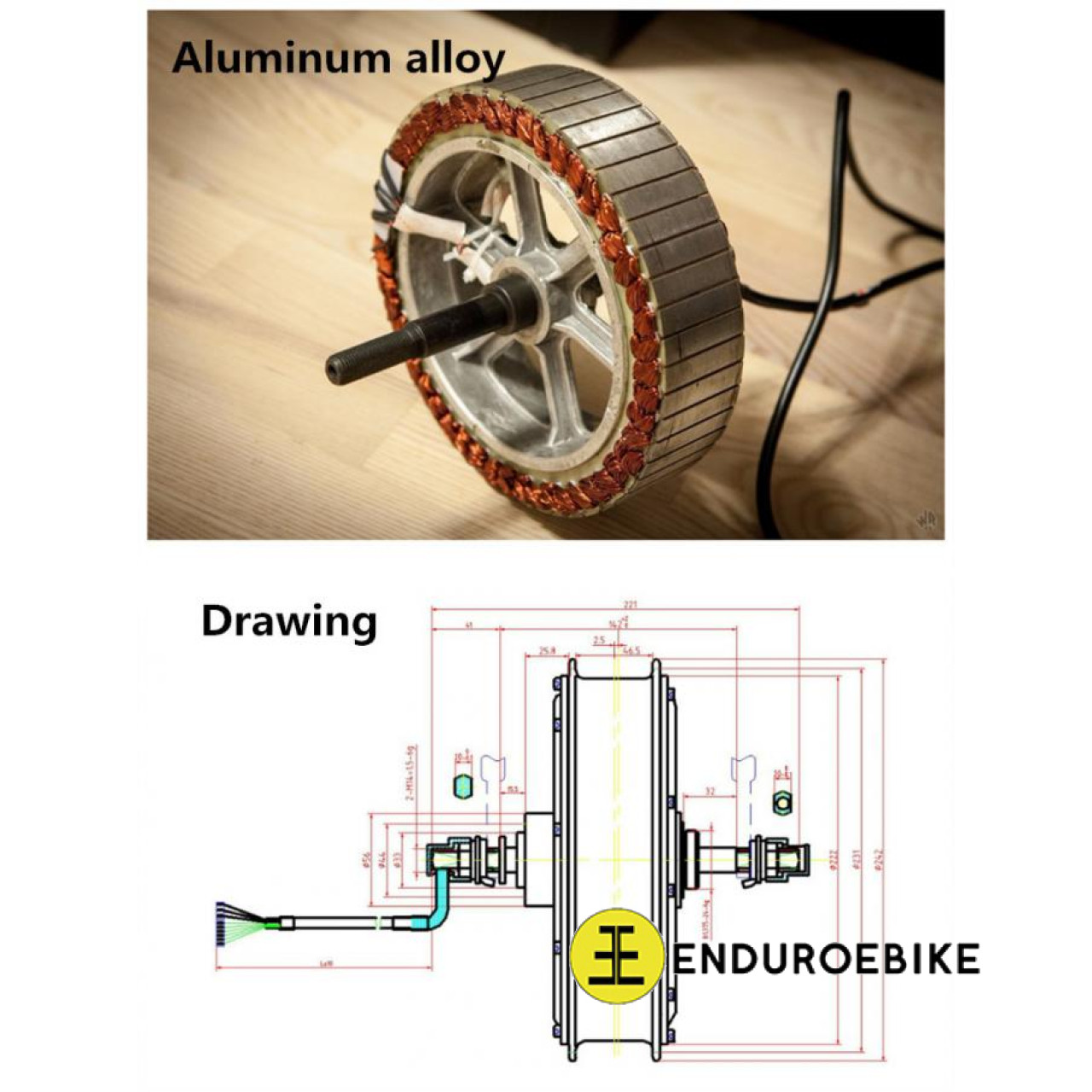

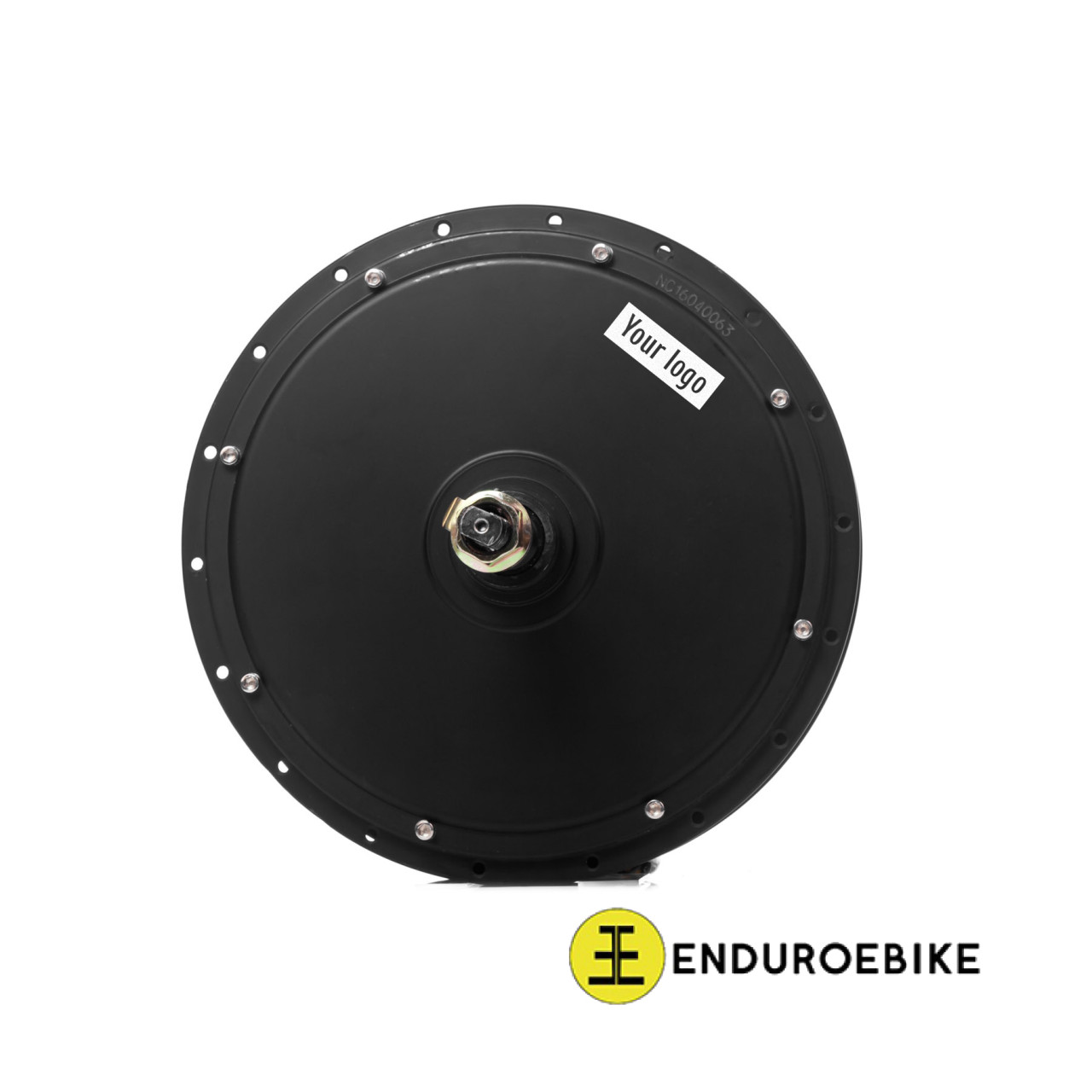

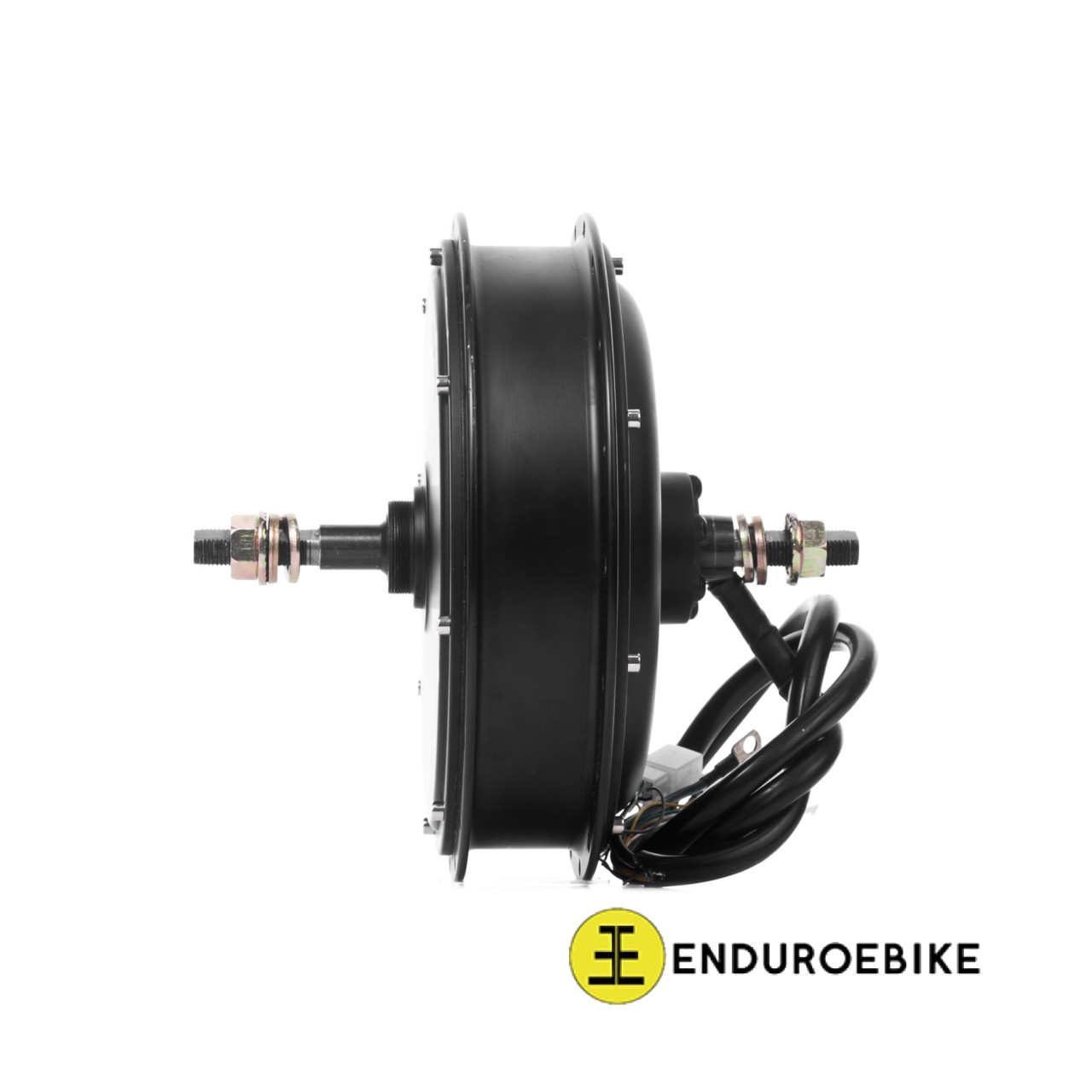

Rear hub-motor EEB DD(R)72v3000w is a perfect balanced solution for the high-powered enduro e-bike with a top speed of 75-80kph.
Disc brake mount ISO 6 x 44mm
Freewheel mount 35mm.
Rear dropout size 150-170mm X 10мм.
Recommended rim 17-19 inch moto.
Windings - 3T21W
Magnets - 46 pcs 45mm.
Phase cables AWG8 - 8mm2.
Holes for the spokes - 36pcs
Axle 16х10mm
Weight 9,6kg
Temp sensor (NTC MF52 10k 3435 5%)
Recommended controller - 72v 50-70A
Rated power 3000W, Max continuous power 5000W
Unloaded RPM (72v) - 675rpm
(48v) - 455rpm
Motor type - BLDC 205/45 direct drive hub-motor
