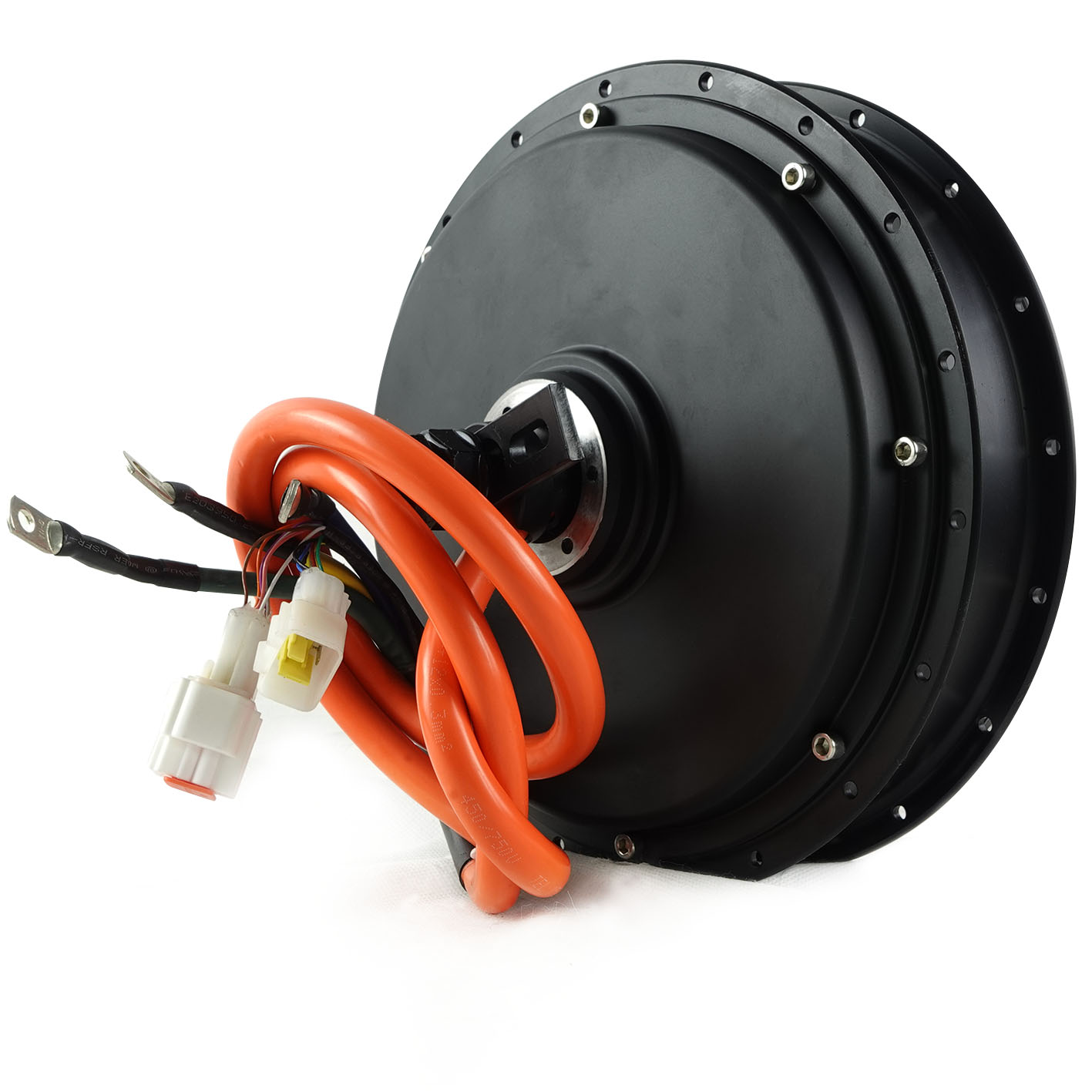

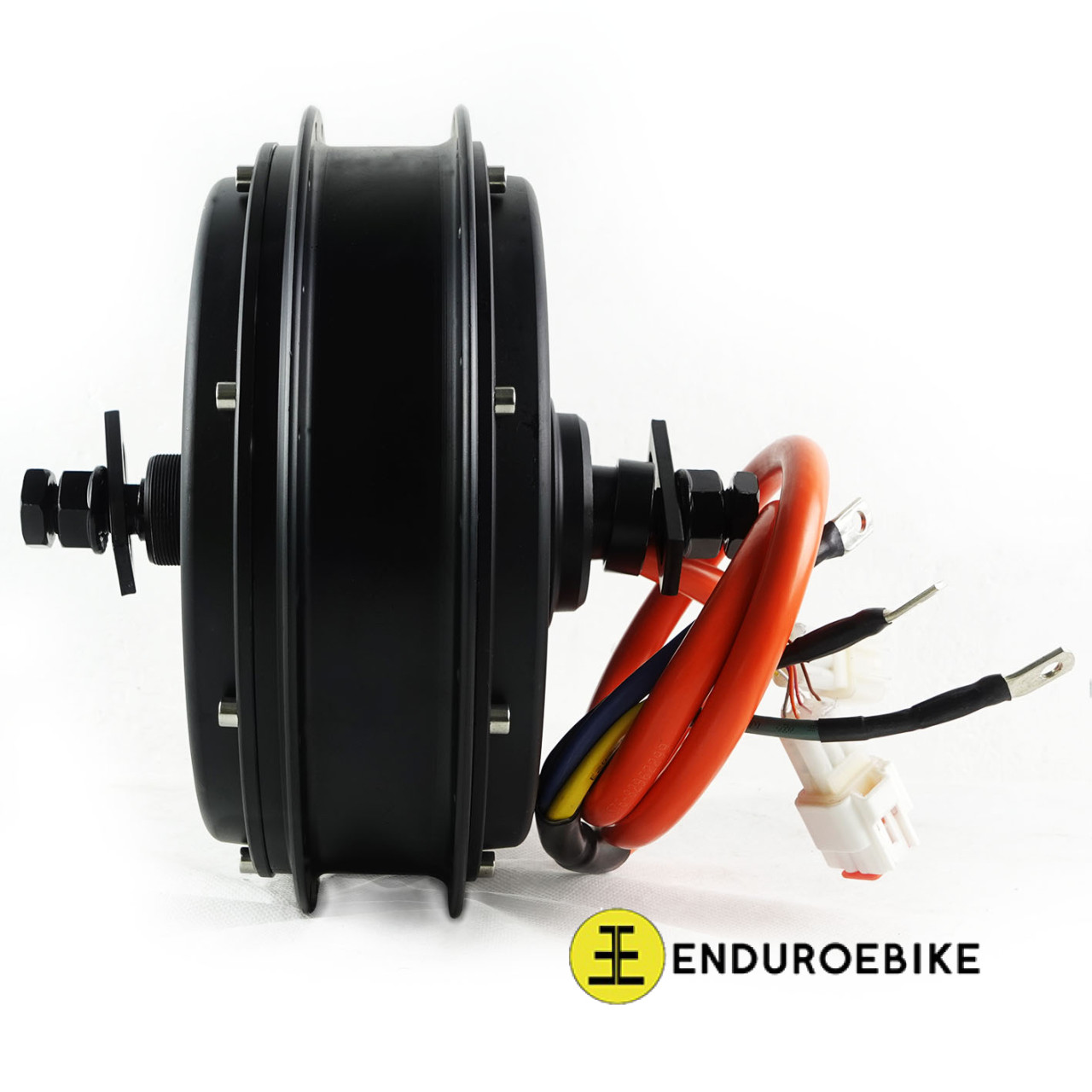

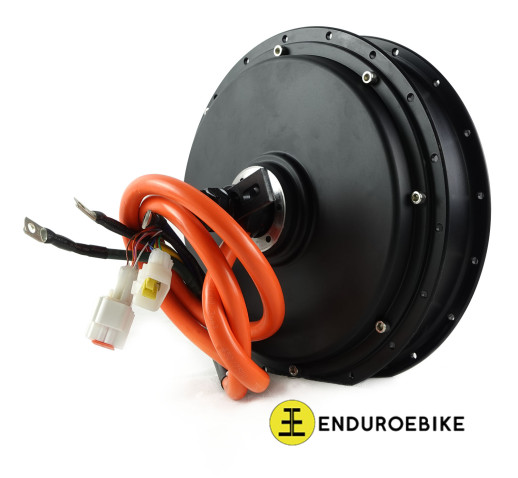

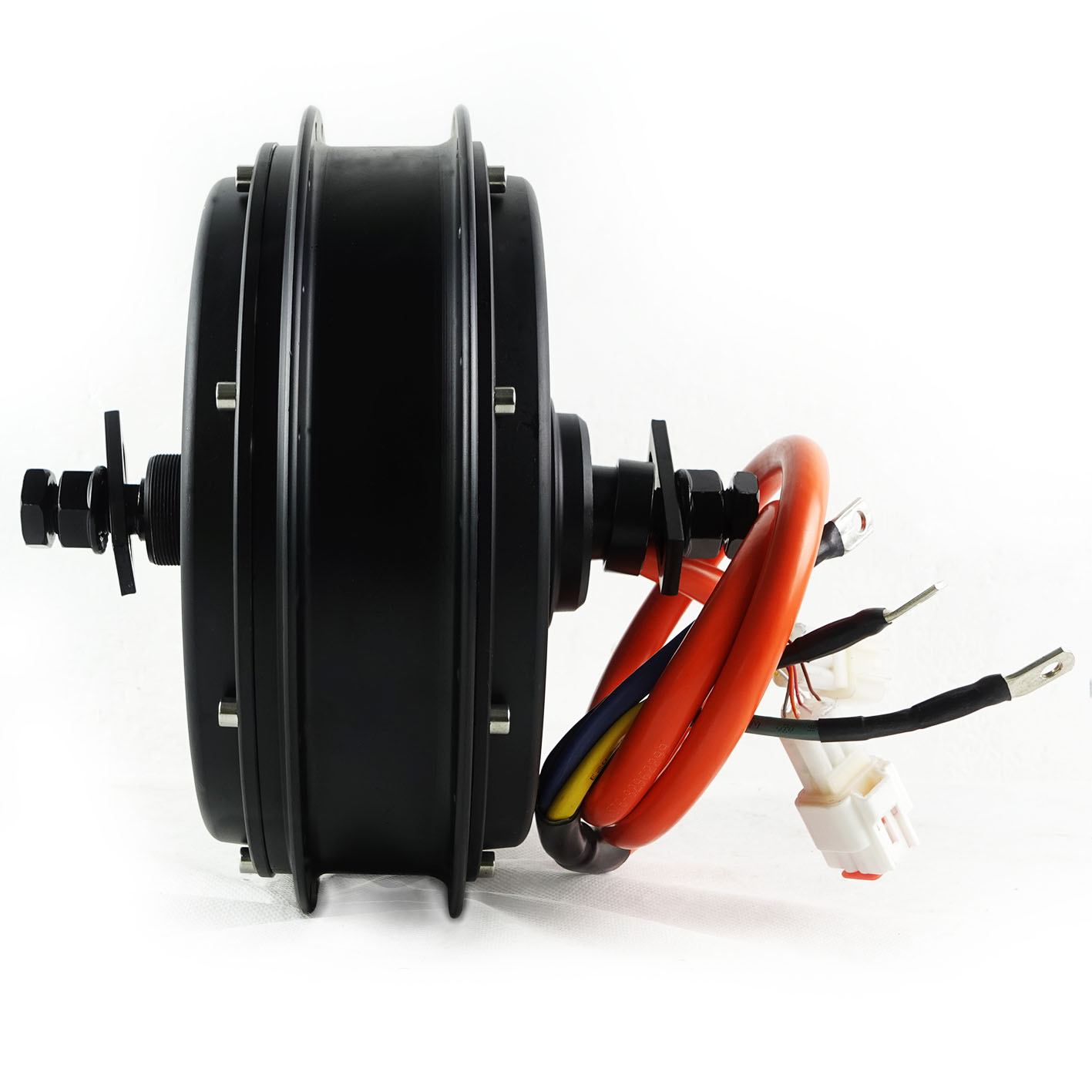

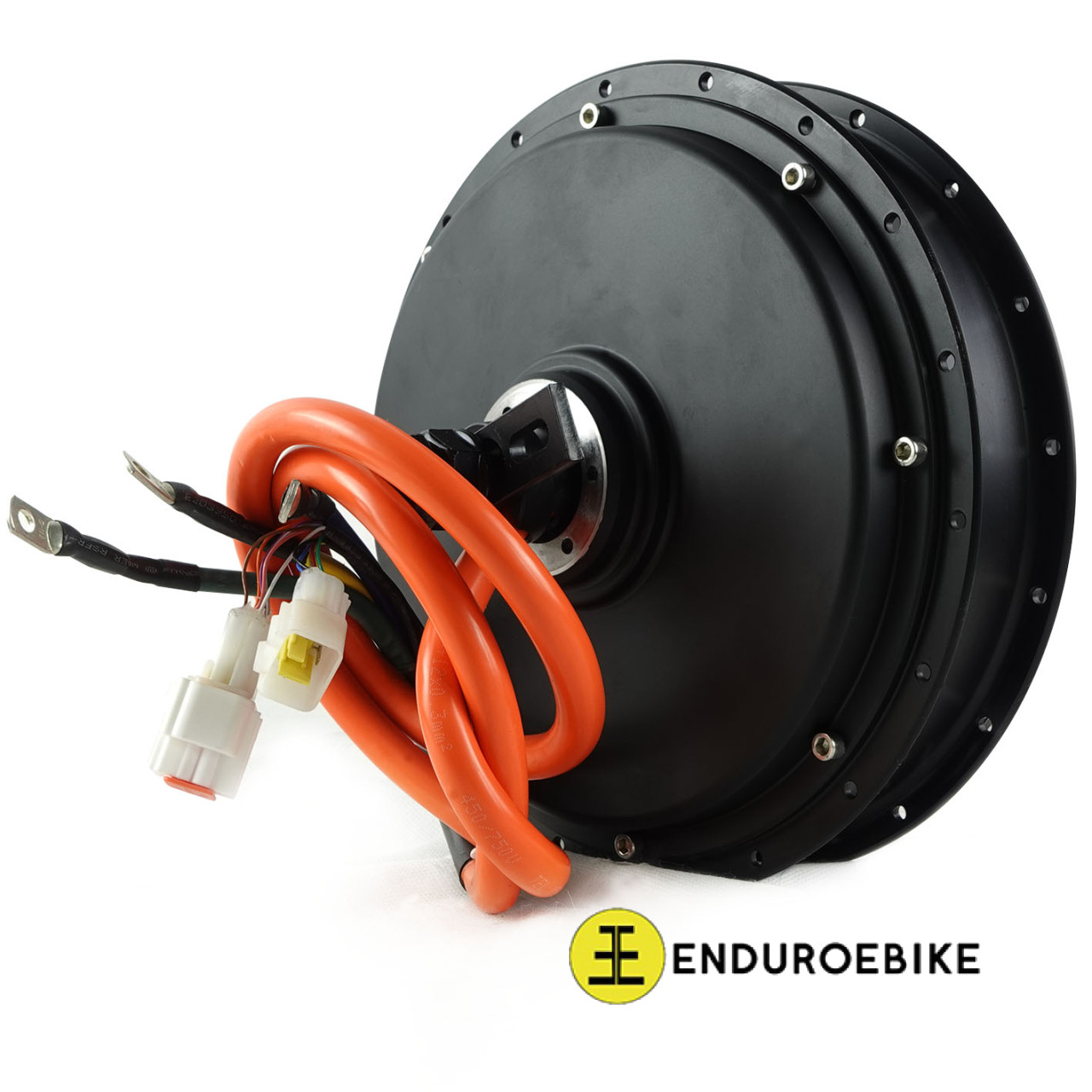

rear hub-motor QS 205 V3 4000W

Motor DD QS 205 V3 72-96V 4000W

  • Product Code: QS 205 V3
305.00$

Dear customers, please place retail orders on our aliexpress shop: LINK to our Aliexpress Store

If you place order on Aliexpress - processing is faster and shipping cost is lower for small orders.

Please place order here on our web-site only if you can not find something on aliexpress or you have a bulk order.

QS 205 V3 4000 motor is a good solution for 5kW continuous e-bike with top speed 80-90kph.

It is also well-known as Quanshun V3 or Cromotor.

Rear hub-motor QS 205 V3 is a perfect balanced solution for the high powered enduro e-bike with top speed 75-120kph.

Disc brake mount ISO 6 x 44mm

Freewheel mount 35mm thread.

Rear dropout size 155mm  X 16 Х 10мм.

Recommended rim 17-19 inch moto.

Windings - 3,5T or 5T ( choose 3,5T only if your battery and controller can deliver more than 100A continuous current)

Stator - Aluminum alloy

Magnets - 46 pcs 50mm.

Phase cables AWG8 - 10mm2.

Holes for the spokes - 36pcs 4,2mm

Axle 16х10mm

Temp sensor (KTY83/122optional

Recommended controller - 72-96V 50-100A

Rated power 4000W, Max power 10000W

Motor type - BLDC 205/50 direct drive hub-motor
